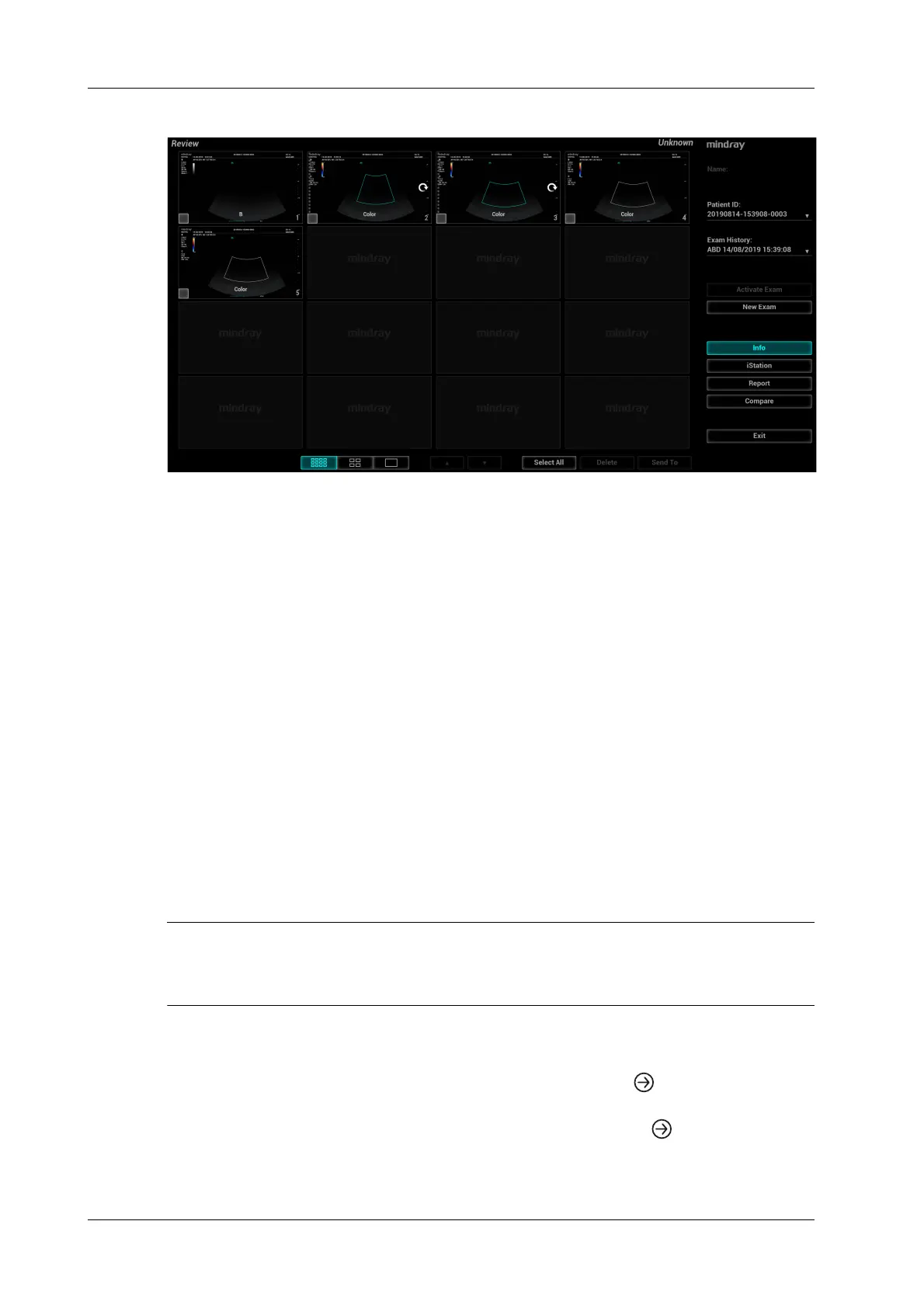

Figure 14-1 Review screen
Analysis
In the image analysis status, you can view, zoom, perform post processing and measurements, add
comments and perform cine review for a stored image (FRM or CIN format). The operation steps
are the same as those for real-time scanning; please refer to relevant sections for details.
1. To enter image analysis:
– In the image scanning or freeze status, double-click a thumbnail stored in this exam to
enter the image analysis status; or
– In the image review status, double-click the selected thumbnail to open the image.
You can perform cine review operations in image analysis status.
2. To exit the image analysis:
– Press <Freeze> to exit and enter the real-time scan status.
– Press [Return] to exit from the image analysis to the Review status.In image analysis
status, the selected image is displayed on the screen, and the thumbnails of the same exam
are displayed on the thumbnail area, you can turn pages using the buttons on the right side
of the thumbnail.
14.1.10Sending Image File
Data saved this way can only be reviewed on the PC and cannot be restored to the ultrasound
system.
Perform the following procedure:
1. Do one of the following to bring up the “Send To” screen:
– In the main screen, select a stored image thumbnail and click on the upper right
corner of the image.
– In the iStation screen, select a stored image thumbnail and click on the upper right
corner of the image.
– In the Review screen, select a image and click [Send to].
