BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 6-17

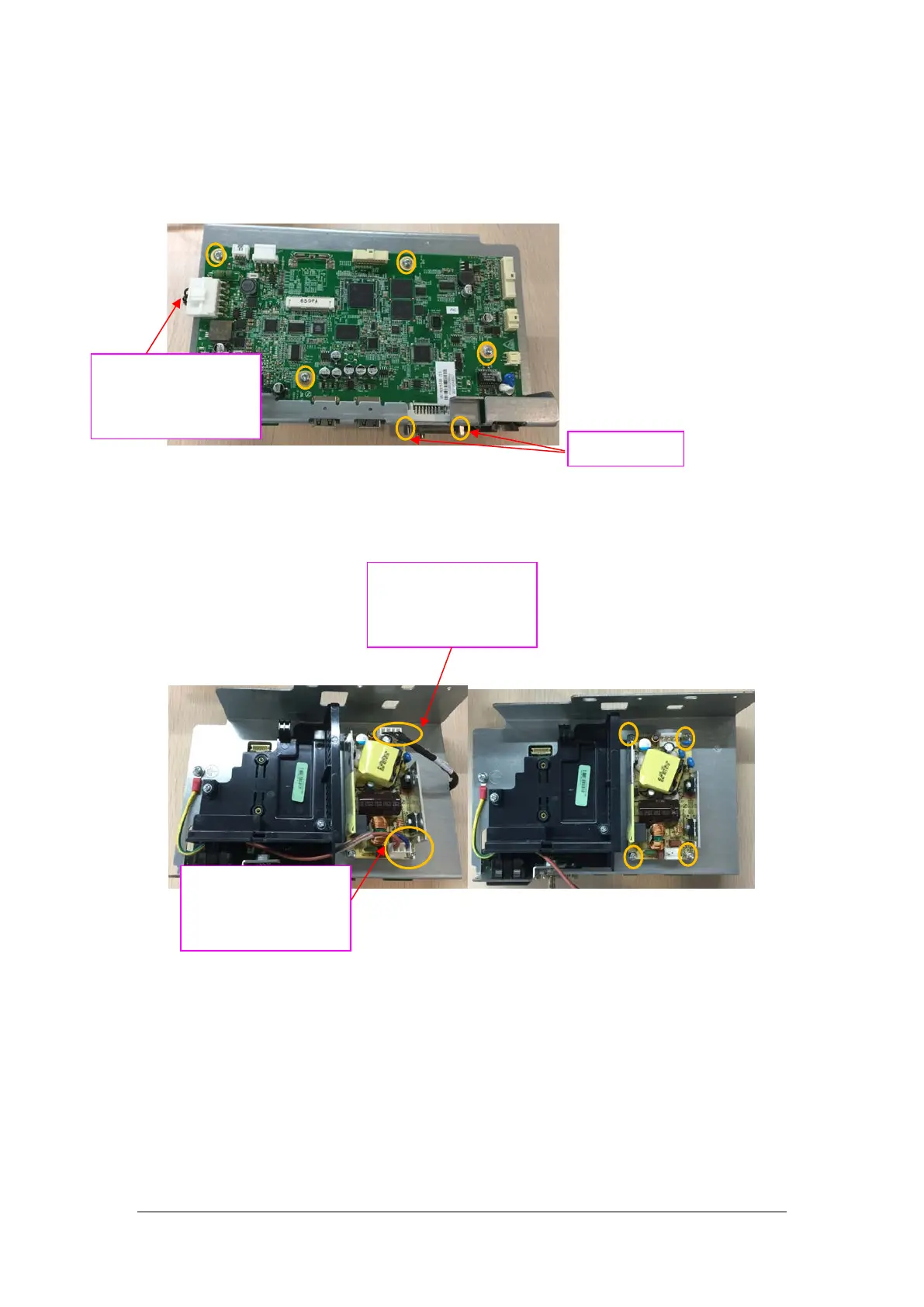

3. As shown in the figure below, after removing the main support assembly, place the main control
board with face upwards. Remove the cable between the main control board and the ACDC power
supply board., Unscrew the two DVI stud screws and four M3X6 screws, and then take out the main
control board.
4. Turn over the main support assembly with the ACDC power supply board facing up. Disconnect the
other end of the cable between the main board and the ACDC power supply board. Then disconnect
the cable between the AC input to the ACDC power supply board. . Unscrew four M3X6 screws, and
remove the power board.
Cable from the main
control board to the
ACDC Power Supply
DVI stud screw
Cable between the AC
input to the ACDC power
supply board
Cable from the main
control board to the
ACDC Power Supply
