6-18 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual

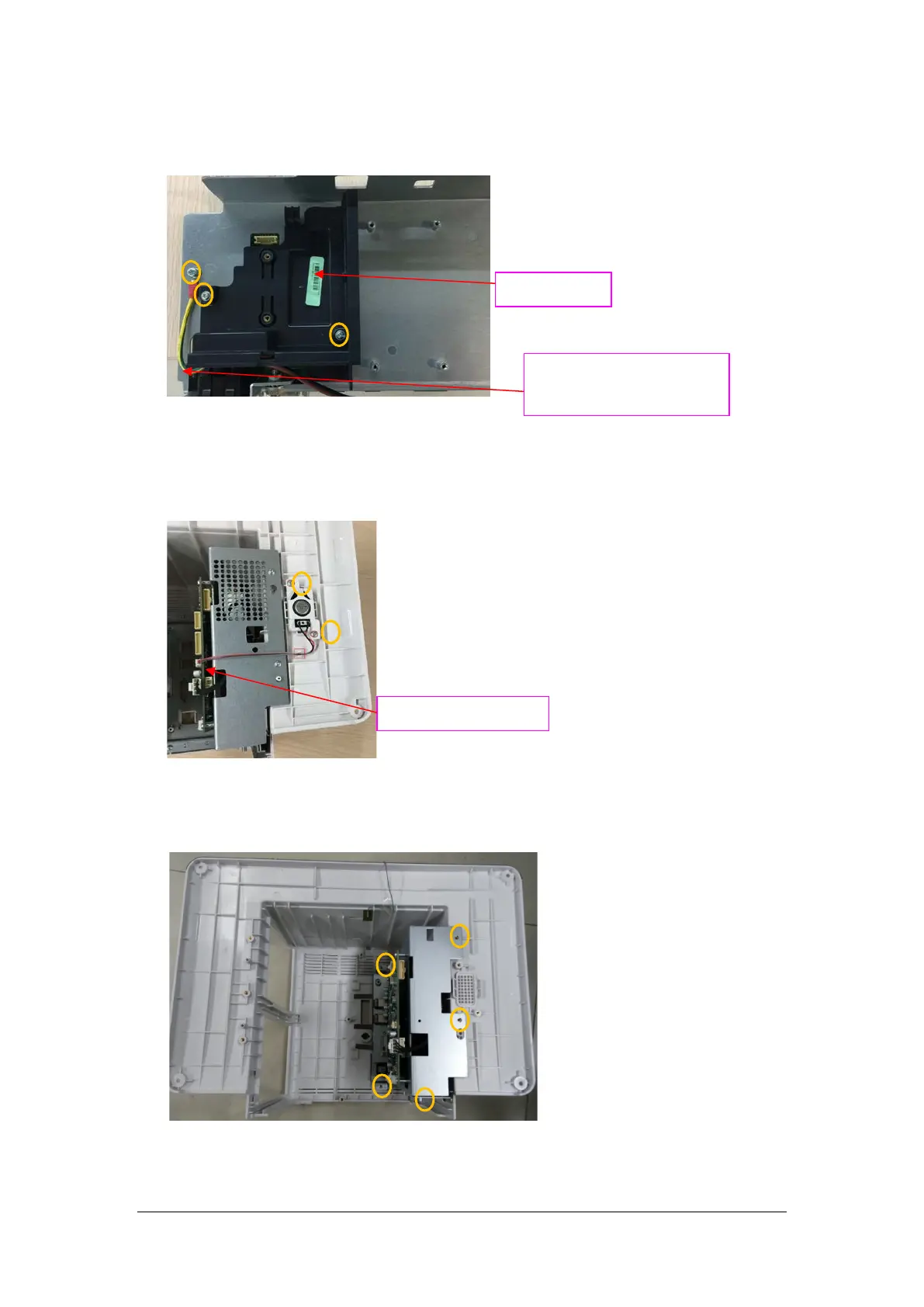

5. Loosen and remove two M3X6 screws and take out the recorder cover. Unscrew one M3X6 screw, and
remove the cable from the AC input to ACDC power supply board.
 N15/N17
1. Disconnect the speaker cable. Loosen and remove the two M3X6 screws, and remove the speaker
assembly.
2. As shown below, for the N15 series machine, loosen and remove the five M3X6 screws, and lift out the
main support assembly.
(N15)
Speaker cable
Recorder cover
Cable from the AC input to
ACDC Power Supply
