BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 6-19

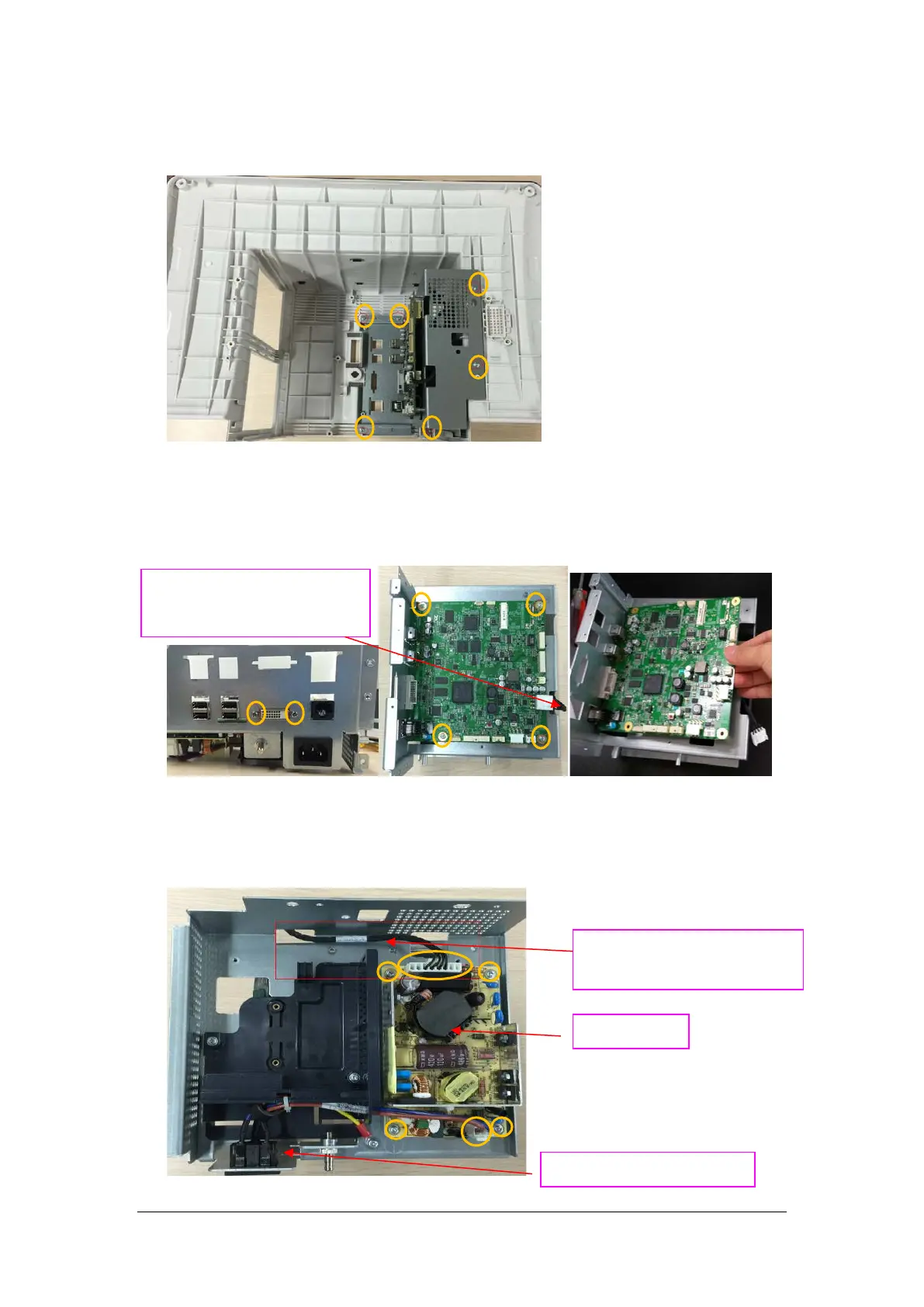

As shown below, for the N17 series machine, loosen and remove the six M3X6 screws, and lift out the
main support assembly.
(N17)
3. As shown in the figure below, after removing the main support assembly, place the main control
board with face upwards. Remove the cable between the main control board and the ACDC power
supply board. Unscrew the two DVI stud screws and four M3X6 screws, and then take out the main
control board.
4. Turn over the main support assembly with the ACDC power supply board facing up. Disconnect the
other end of the cable between the main board and the ACDC power supply board. Then disconnect
the cable between the AC input to the ACDC power supply board. Unscrew and remove the four
M3X6 screws, and remove the power board.
Cable from the main control board
to the ACDC
Cable from the main control board
to the ACDC
AC input to ACDC power cord
Power board
