6-4 BeneVision N22/BeneVision N19 Patient Monitor Service Manual
6.3.3 Removing Handle Cover

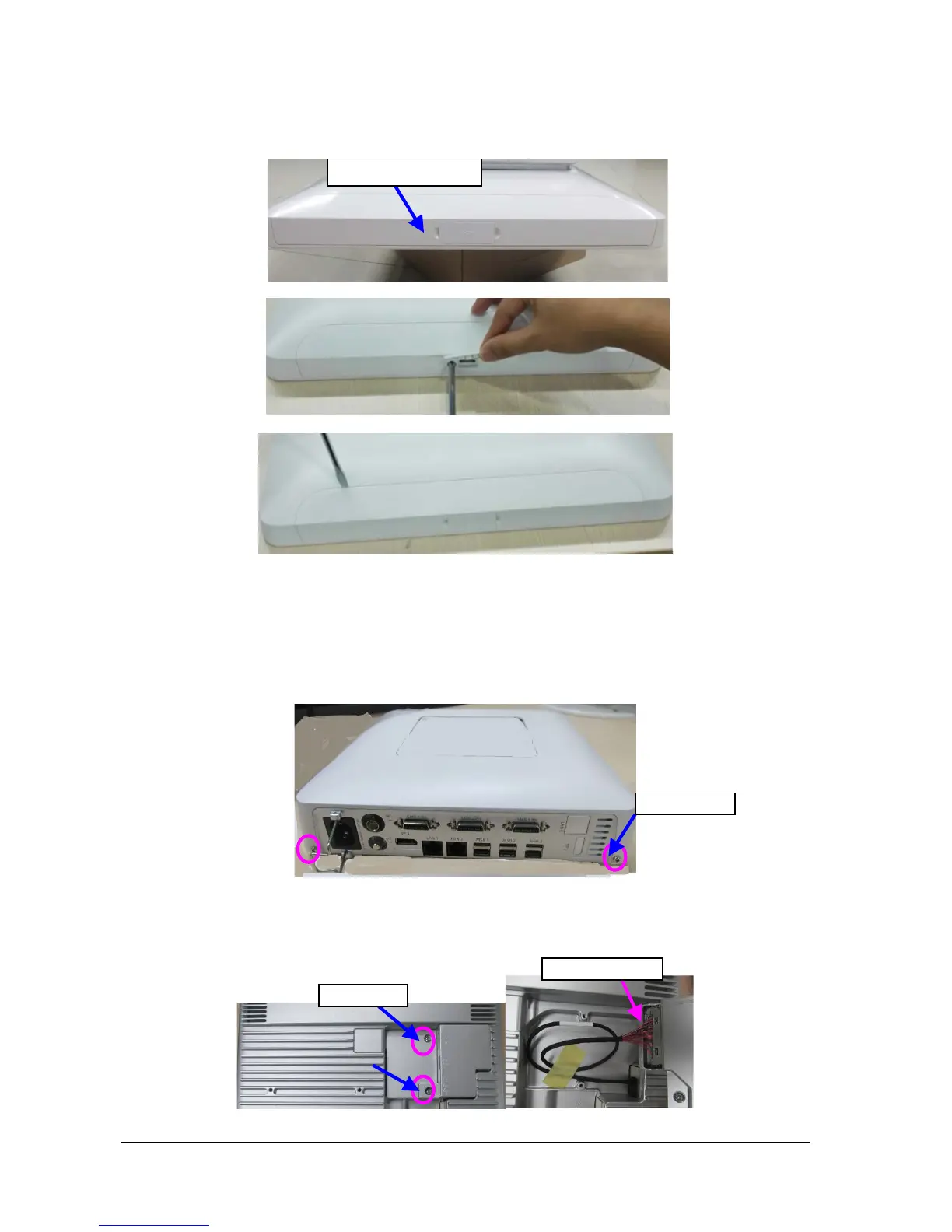

As shown in the following picture, place the monitor face down on the work surface, open the USB retaining cover,
loosen and remove one M3X6 screw, and thenremove the handle cover.
6.3.4 Removing Main Unit Housing/Main Unit Interface Adapter Board (Main Unit and
Display Separated Installation)
As shown in the following picture, place the monitor face down on the work surface, loosen two M3 captive screws, and
then lift the main unit housing to remove it.
As shown in the following picture, turn the Main Unit over then, loosen and remove the two M3X6 cross recessed pan
head screws with pad, disconnect the cable, then remove the cover for separated installation adapter of main unit.
USB retaining cover
