BeneVision N22/BeneVision N19 Patient Monitor Service Manual 7-3
7.2 D19 Display Assembly (Capacitive Screen)

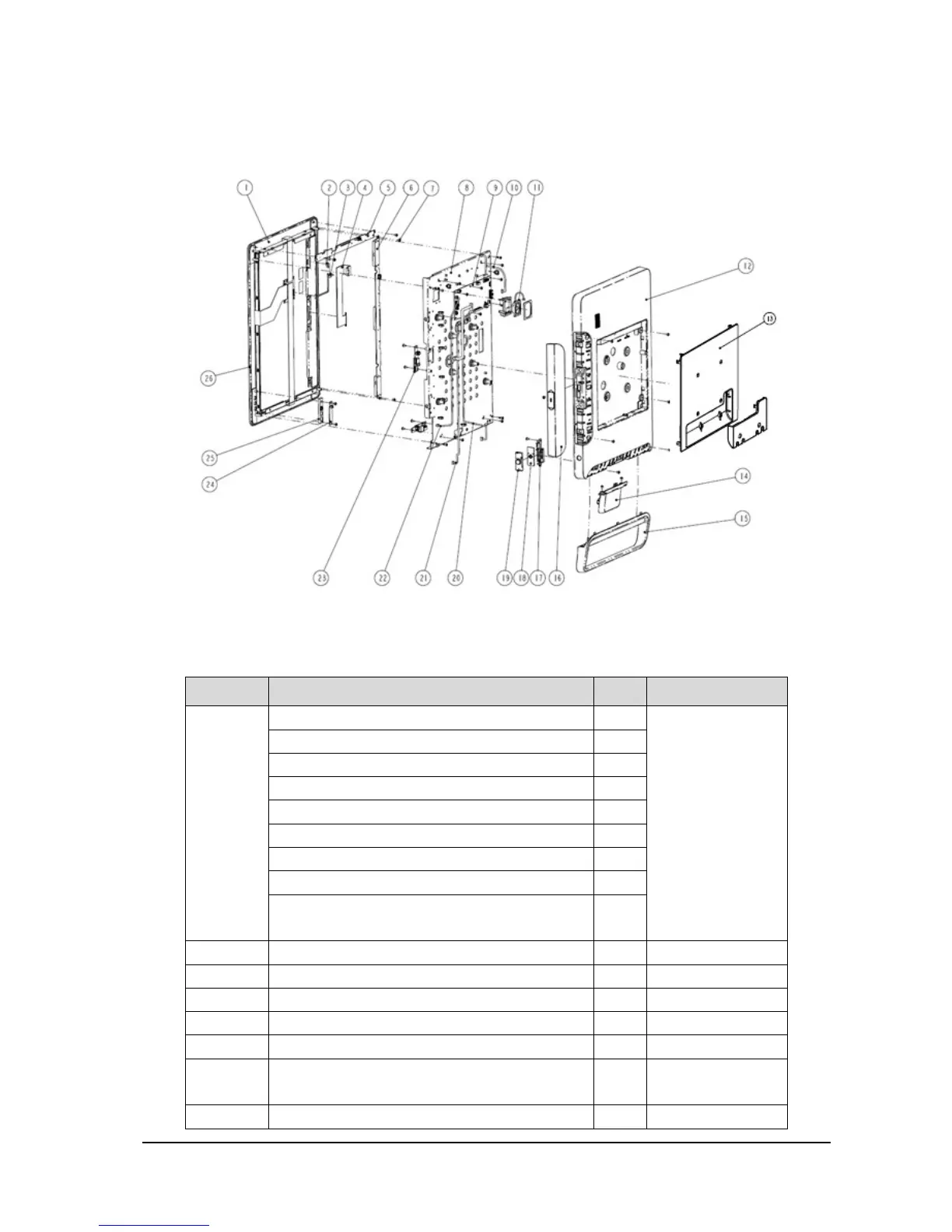

7.2.1 Exploded View
7.2.2 Parts List
ITEM NO. Description Qty FRU part number
1 19“LCD Touch Screen UV 1
115-045001-00
D19 LCD transfer bracket 2
D19 touchscreen plate-1/ D19touchscreen adhesive-1 1
D19touchscreen plate-2/ D19touchscreen adhesive-2 1
D19touchscreen plate-3/ D19touchscreen adhesive-3 1
D19touchscreen plate-4/ D19touchscreen adhesive-4 1
D19 cosmetic gasket 1
Tape for display gasket 0.04
Small cross recessed pan head GB9074.5-88 M3X6
with pad
4
2 19-inch LCD backlight cable 1 009-005113-00
3 DIB to PCB 1 009-006879-00
4 19-inch LCD LVDS signal cable 1 009-005110-00
5 1 9inch vertical LED board PCBA 1 051-001925-01
6 19 inch horizontal LED board PCBA 1 051-001924-00
7
Small cross recessed pan head GB9074.5-88 M3X6
with pad
28
/
8 D19 main bracket 1 /
