BeneVision N22/BeneVision N19 Patient Monitor Service Manual 6-17
6.6.4 Disassembling the Infrared Backplane of Module Rack

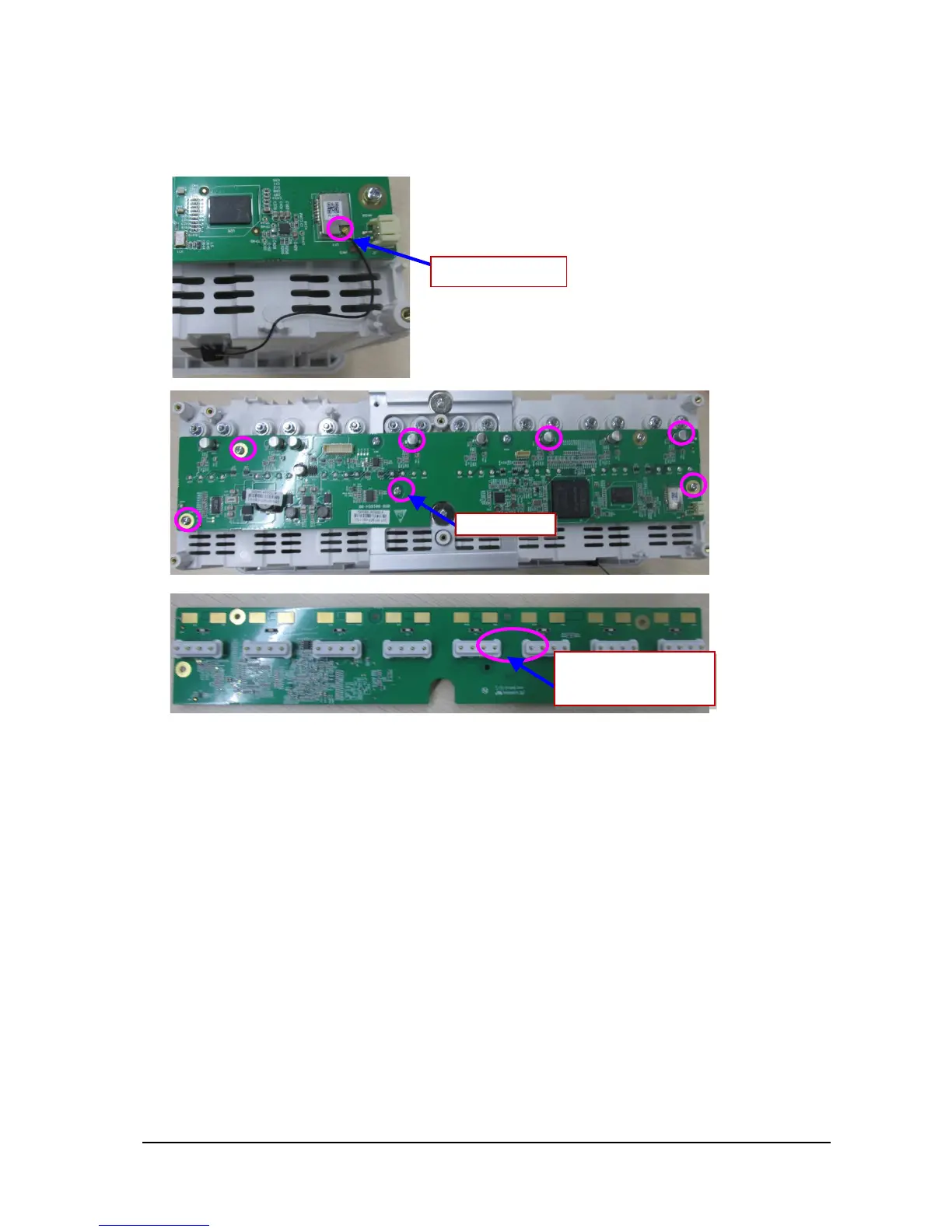

Disconnect the cable between the module rack antenna and the infrared backplane, loosen and remove the seven
M3X8 cross recessed pan head screws on the infrared backplane, then remove the eight POGO PIN silicon cases of
module rack.
Module rack antenna
M3X6 screw
POGO PIN silicon cases of
module rack
