6-18 BeneVision N22/BeneVision N19 Patient Monitor Service Manual
6.7 Disassembling the M51C Module
6.7.1 Disassembling the Front Panel Assembly

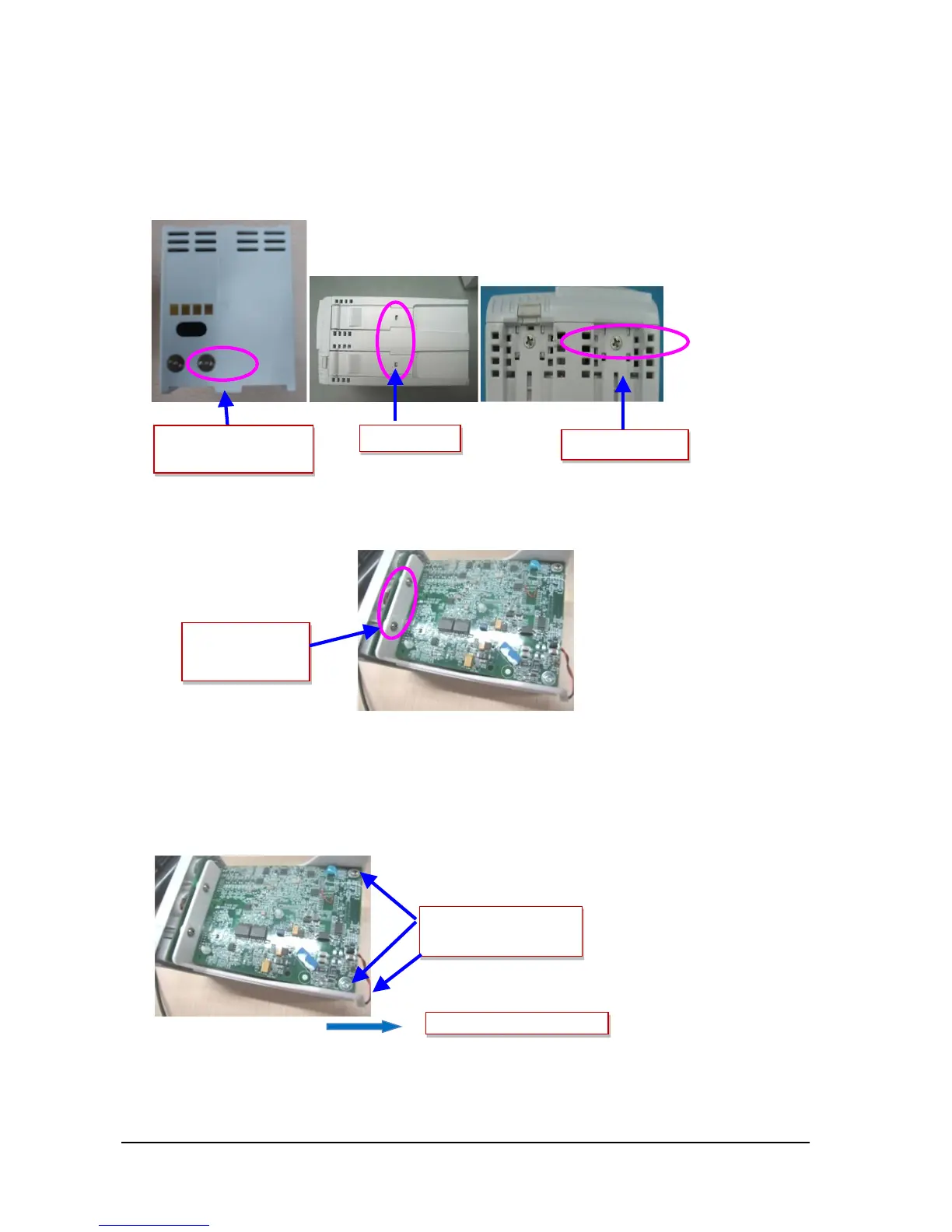

As shown in the figure, use a contact wrench to remove the screw for the back end terminal of the module; use a small
flat-bladed screwdriver to remove the module retention tabs; use a Phillips screwdriver to remove the front panel screw.
Then, the front panel of module can be pulled out.
As shown in the following figure, loosen and remove the screw between the front panel and the bracket, and unplug the
air tube at the air nozzle. Then the front panel can be removed.
6.7.2 Disassembling the Parameter Board
As shown in the following figure, loosen and remove theparameter board screws, remove the pump and valve cable
and NIBP air tube. Then, the parameter board can be removed.
Use a contact wrench to
remove the terminal screw
Retention Tabs
Remove the screw
Remove the bracket
screw
Parameter board screws and
cable
Remove along this direction
To Next Page
