6-16 BeneVision N22/BeneVision N19 Patient Monitor Service Manual
6.6.2 Disassembling the Rear Case of Module Rack

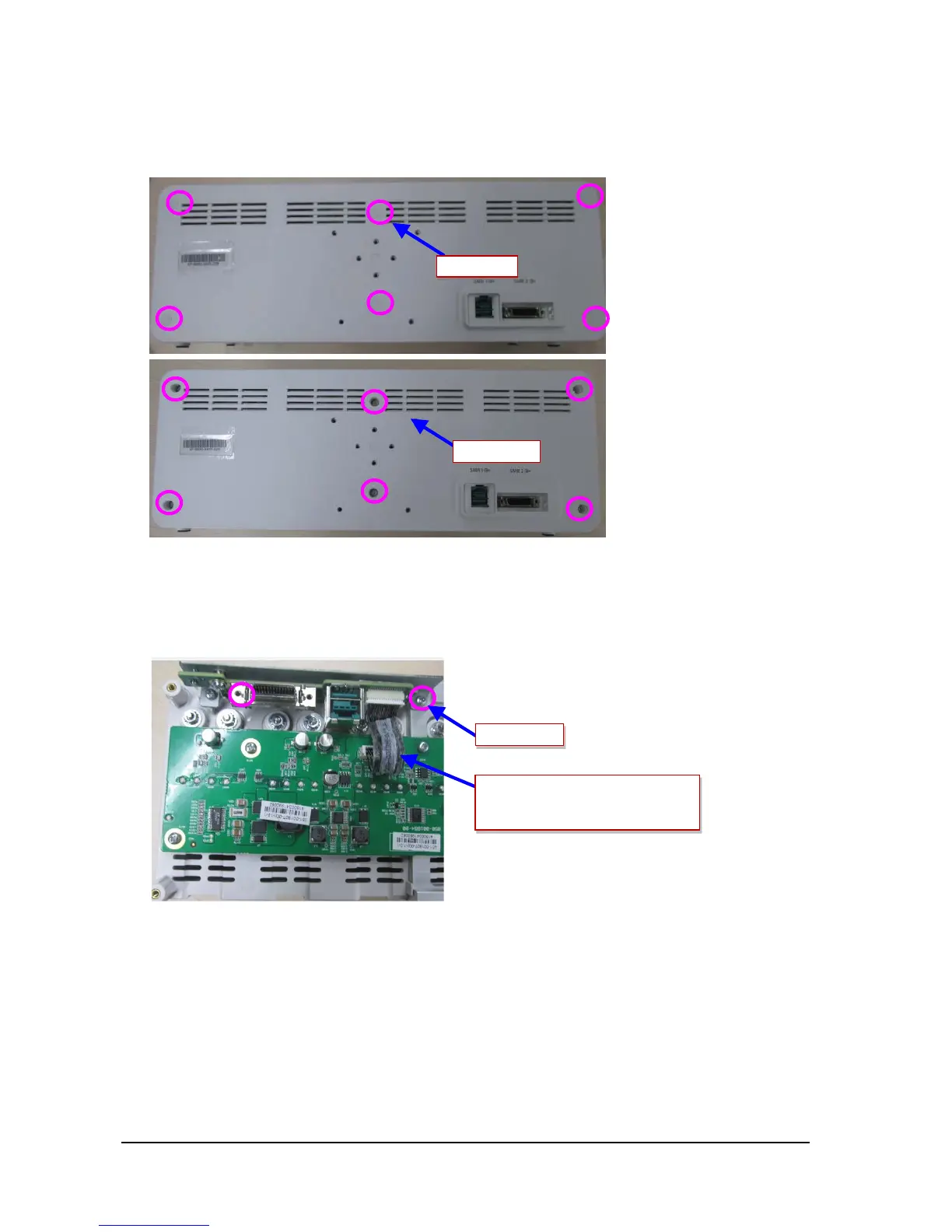

As shown in the following figure, use a tweezer to take out the six screw covers on the rear case, loosen and remove the
six M3X16 cross recessed pan head screw, and separate the front case from the rear case.
6.6.3 Disassembling the Module Rack Interface Board
Loosen and remove the two M3X8 cross recessed pan head screws, disconnect the cable between the interface board
and the infrared backplane, and then remove the interface board.
Screw cover
M3X16 screw
M3X8 screw
Cable from the interface board of
external module rack to the 8-slot board
