5 Fluid System
5-
7

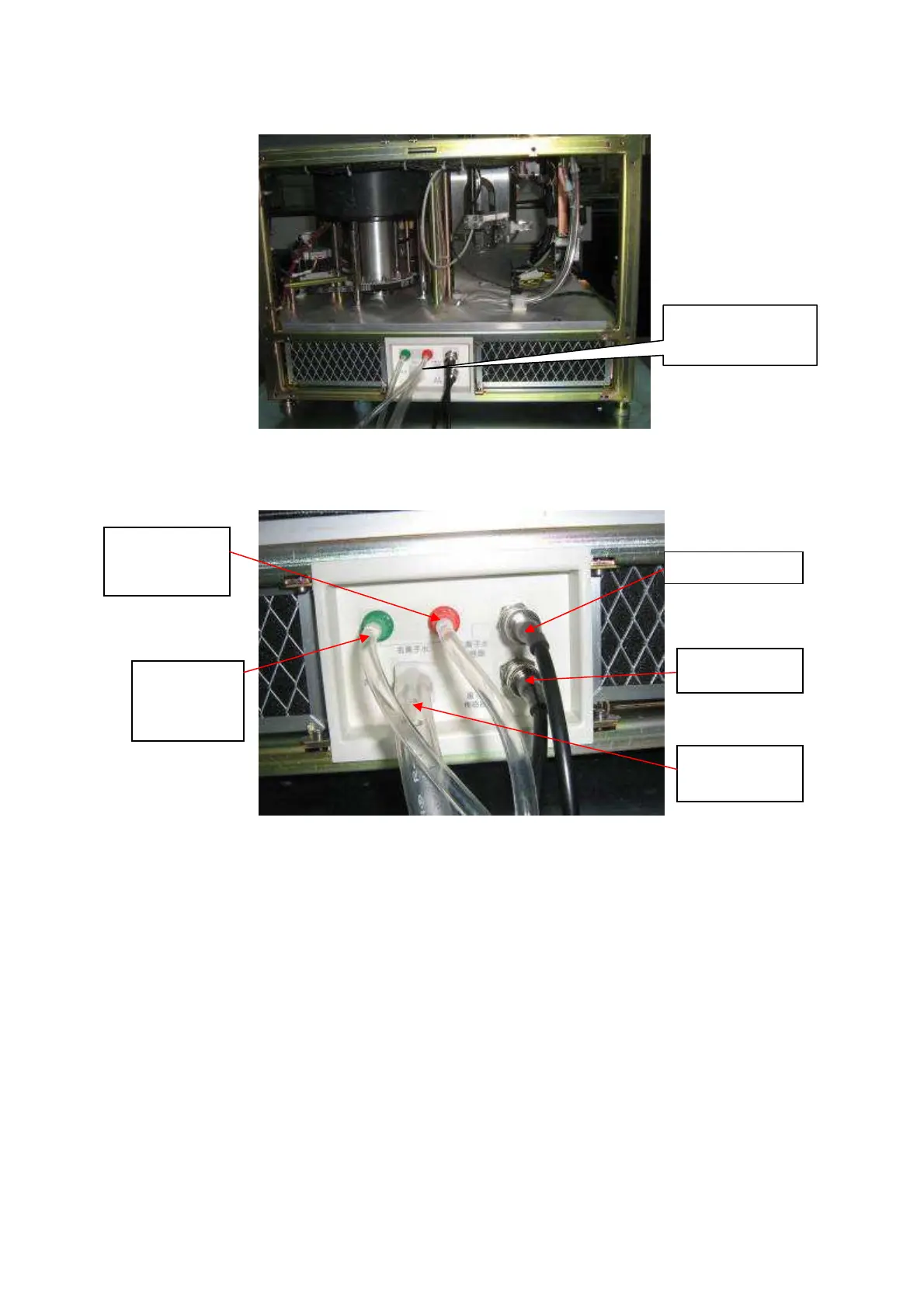

Figure 5-3 Connection between Fluid System and Main Unit
（a） Overall layout
（b）Detailed connections
The DI water sensor and the wash tubing are directly connected with the DI water tank;
the waste sensor and waste tubing are directly connected with the waste tank.
Within the fluid system, the positions of syringe and pump/valve assembly are shown in
Figure 5-4:
Waste sensor
DI water sensor
Interior wash
tubing
connection
Exterior
wash tubing
connection
Waste tubing
connection
Fluid system
connection panel
