5 Fluid System
5-9
5.9 Key Components
5.9.1 Solenoid Valve

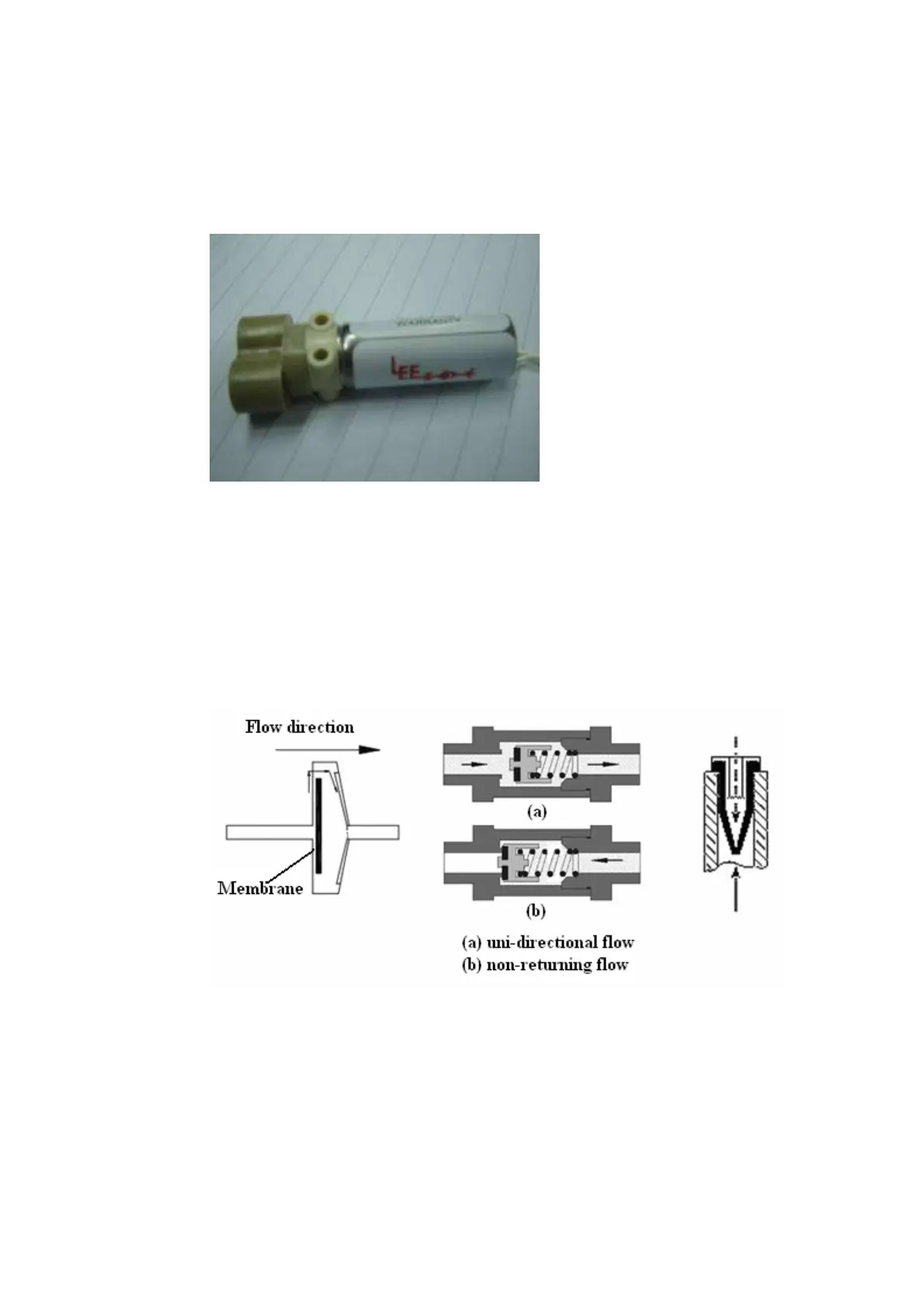

Figure 5-7 Solenoid Valve
Applied assembly: Pump/valve module
Function: To control the open/close status of the fluid pipe through its on/off switch.
5.9.2 Check Valve
Figure 5-8 Check Valve
Applied assembly: Pump/valve module
Function: To assure a unidirectional flow and prevent the back-flow of the fluid in tubing.
