4 Units Description
4-23

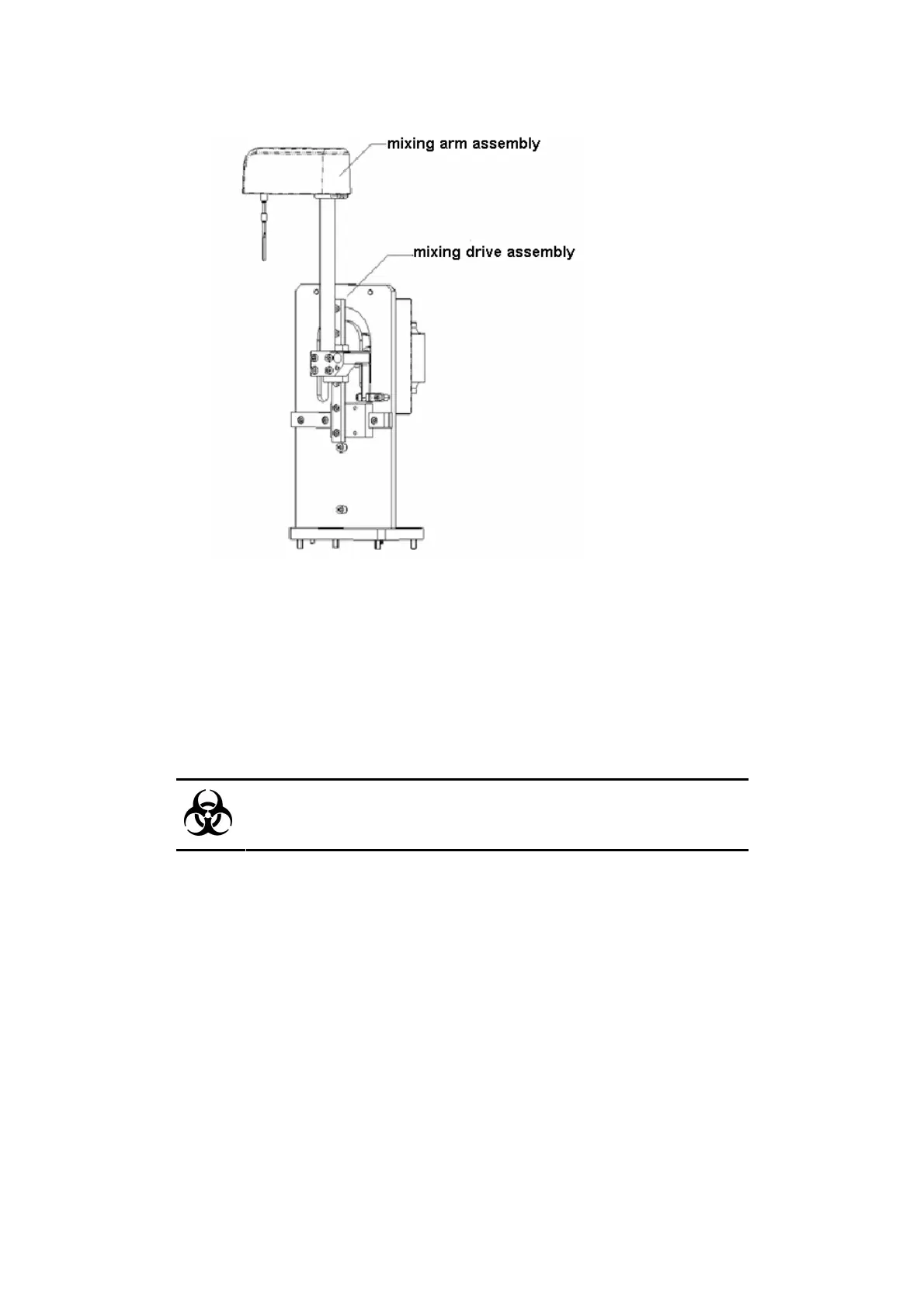

Figure 4-25 Mixing Unit
Mixing drive assembly: It supports the mixing arm assembly and drives the arm to do
curvilinear movement in horizontal plane, so that the mixing bar moves between the two
working positions. It consists of stepping motor, shaft, bearing, linear guide way, etc, which
are integrated by the cam board. The arm shaft transfers movement to the mixing arm
assembly.
Mixing arm unit: It consists of a mixing bar, motor, cover, etc. and all of them are integrated
by the arm base.
4.5.3 Dismounting Mixing Unit
BIOHAZARD
Do not touch the mixing bar.Wear gloves, if necessary.
To Next Page
