Mindray BS-120 Service Manual

4 Units Description
4-
17
Reagent Disk Assembly

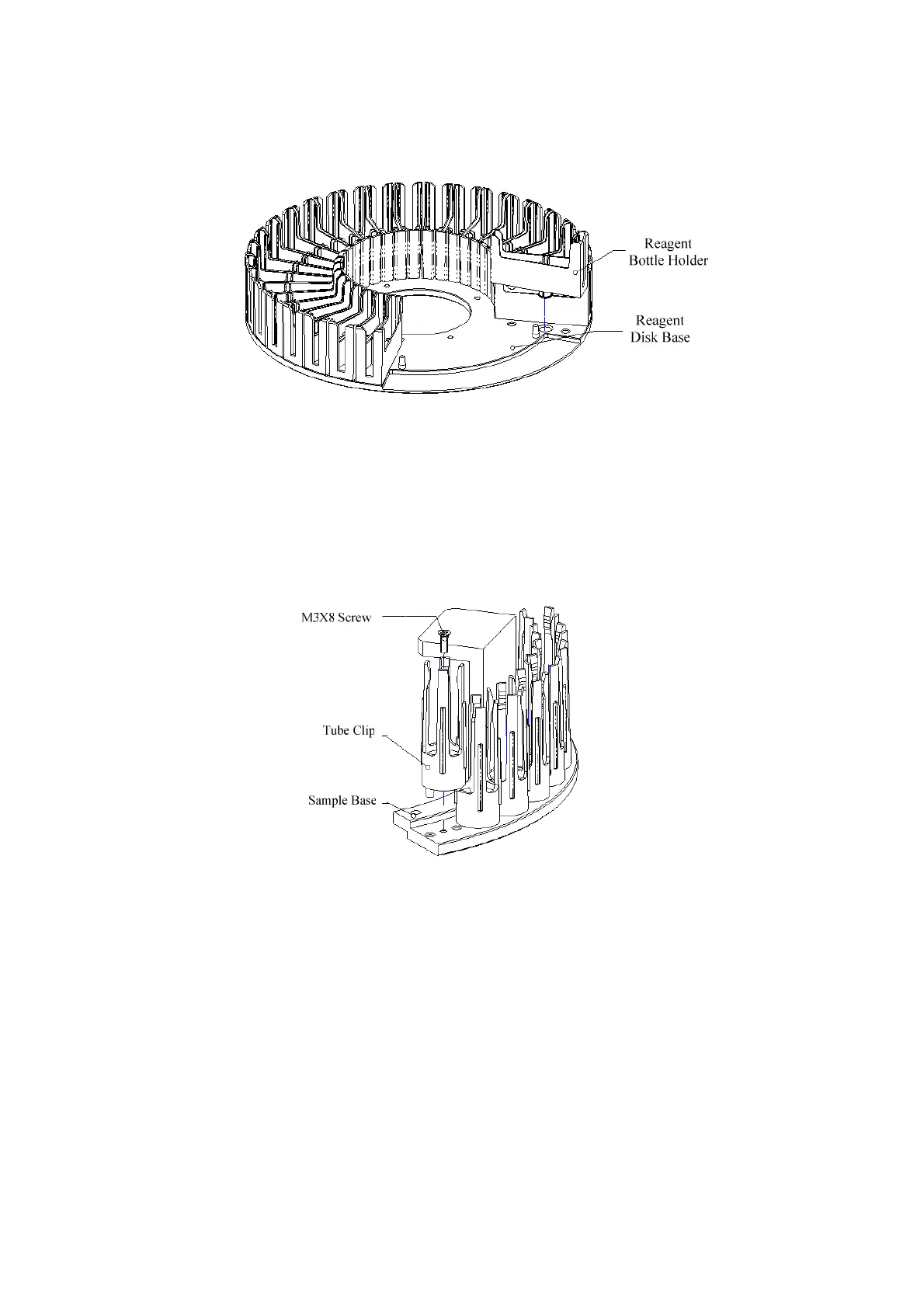

Figure 4-18 Reagent Disk Assembly
The reagent bottle holder is fastened on the reagent disk base. The reagent bottle
holder can be pulled out or pushed in the reagent disk base by hand directly.
Precautions: Make sure that the reagent bottle holder is fastened completely on the
reagent disk base.
Sample Disk Assembly
Figure 4-19 Sample Disk Assembly
Remove one M3x8 cross countersunk head screw, and then replace the tube clip which
is fixed to the sample base.
4.4 Reaction Disk Unit
4.4.1 Function Introduction
The reaction disk unit holds reaction cuvettes and rotates clockwise, carrying the
cuvettes to specified position for sample/reagent dispensing and stirring. The reagents
and the sample react in reaction cuvette. Also the reaction disk unit provides a
constant-temperature environment for the reaction.
Figure 4-20 shows the position on the reaction disk. No.1 is dispensing R1/R2/S position.
No.2 is aspirating pre-diluted sample position. No.5 is photometric measuring position.
No.10 is stirring position. No.25~No.29 is for replacing the cuvettes manually.

Mindray BS-120 Specifications

General

Throughput	120 tests/hour
Display	LCD touch screen
Reaction Temperature	37°C
Light Source	Halogen lamp
Photometric Range	0-3.0 Abs
Type	Bench-top, discrete, random access
Sample Type	Serum, plasma, urine
Connectivity	RS-232, USB
Analysis Method	Photometric
Sample Volume	2-35 µL
Reaction Volume	180-500 µL
Wavelengths	340, 405, 450, 505, 546, 578, 630, 700 nm
Control	Internal quality control, calibrator
Cleaning	Automatic cleaning system
Measurement Principle	Absorbance
Power Supply	AC 100-240V, 50/60 Hz
Operating Environment	Temperature 15-30°C, humidity 35-85% RH
