Mindray BS-120 - Installling and Removing ISE Unit

4 Units Description
4-
40
Pump module
The pump module includes three peristaltic pumps,
which are used to transfer reagents and waste liquid.
Reagent module
The reagent module includes calibrant A, calibrant B,
waste tank and a chip that indicates the remaining
volume of the reagent. This module provides the function
of the reagents supply and the waste liquid storage.
4.8.3 Installling and Removing ISE Unit
The ISE module, pump module and reagent module are fixed on the base board with
screws. (See Figure 4-45)

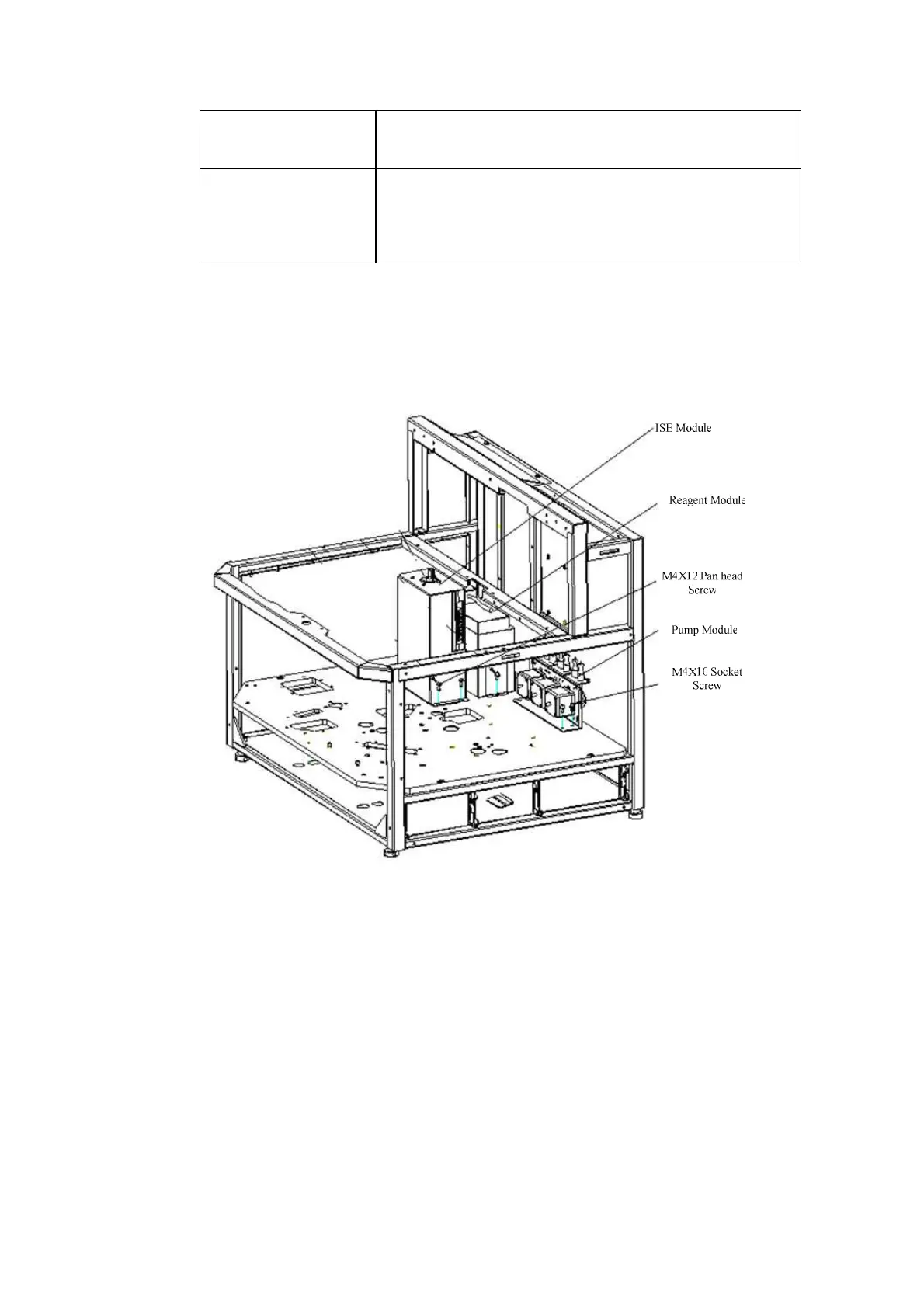

Figure 4-45 Components of ISE Unit
