6.4 Layout of the Boards
Figure 6-1 shows the circuit boards on the analyzer.

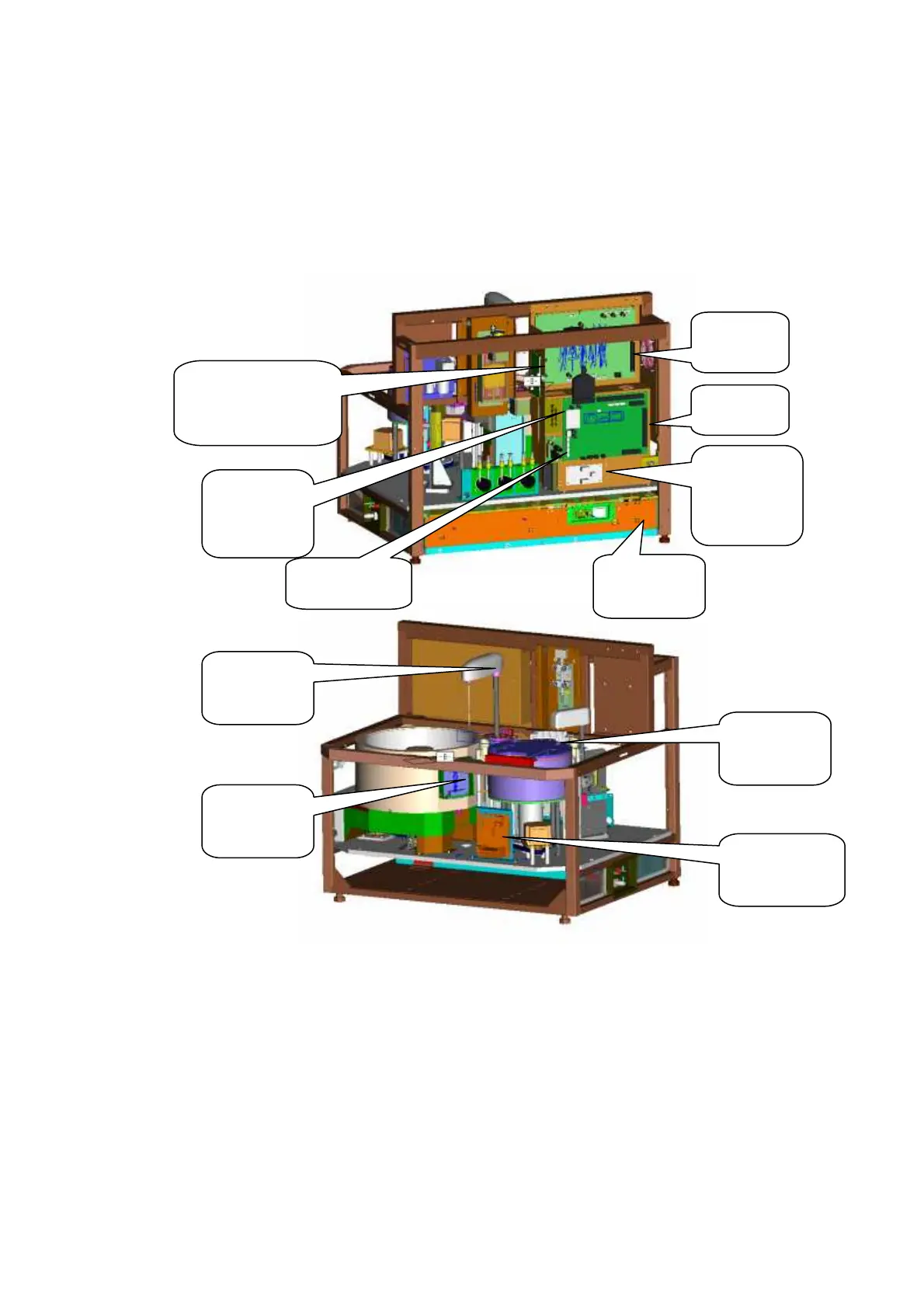

Figure 6-1 Layout of the Circuit Boards
6.5 Detaching and Assembling Circuit Boards
You must pull out all plugs (refer to Appendix A Connection Diagram）first when you detach
the boards and then loosen the fixing screws on the boards.
#1-Main
board
#2-Drive
board
#3-Power
supply unit
#4-Heater
voltage
selecting
board
#5-ISE power
board
#6- Three
probes
connection
board
#7-Reaction disk
temperature
sampling board
#8-Reagent
refrigeration
board
#10-AD
conversion
board
#9-
Preamplific
ation board
#11-Level
detection
board
