Mindray BS-120 Service Manual

4 Units Description
4-21
4.4.3.3 Compartment Assembly

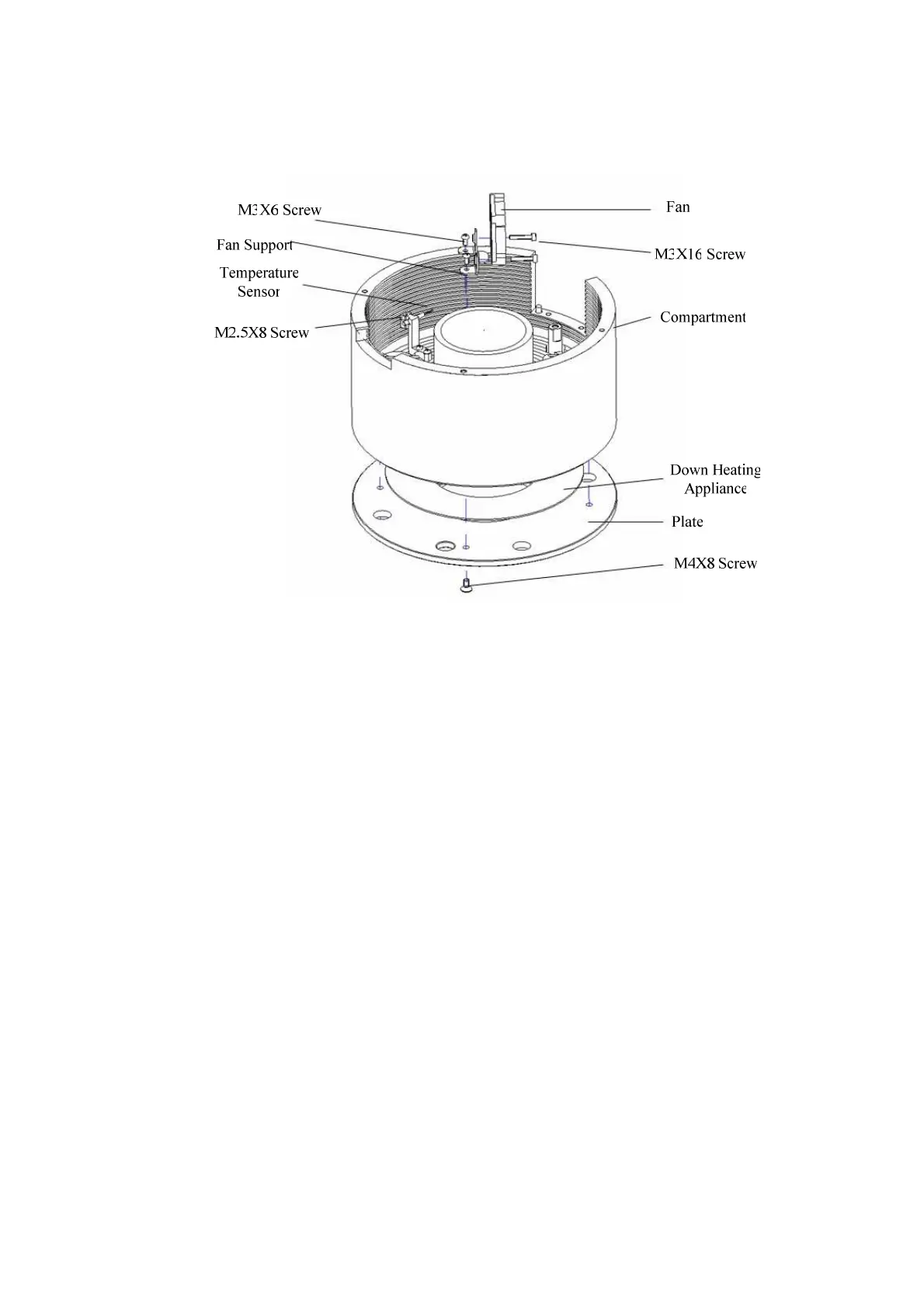

Figure 4-23 Compartment Assembly
1. Remove the fan support which is fixed to compartment by loosening the two M3x6 pan
head screws.
2. Remove the fan which is fixed to fan support by loosening the two M3x16 hexagon
socket head screws.
3. Remove the temperature sensor by loosening the M2.5x8 hexagon socket set head
screw.
4. Remove the down heating appliance which is fixed to compartment by loosening the
four M4x8 hexagon socket set head screws.
Precautions:
1. Do not tighten the M2.5x8 hexagon socket set head screw too tight when mounting the
temperature sensor.
2. The side of down heating appliance that is in contact with the compartment must be
coated with heat–conducting glue (0.1-0.2mm thick) while installing it.
