Understanding the CAL 8000 System
2-11
 Nonterminal SM&S track module

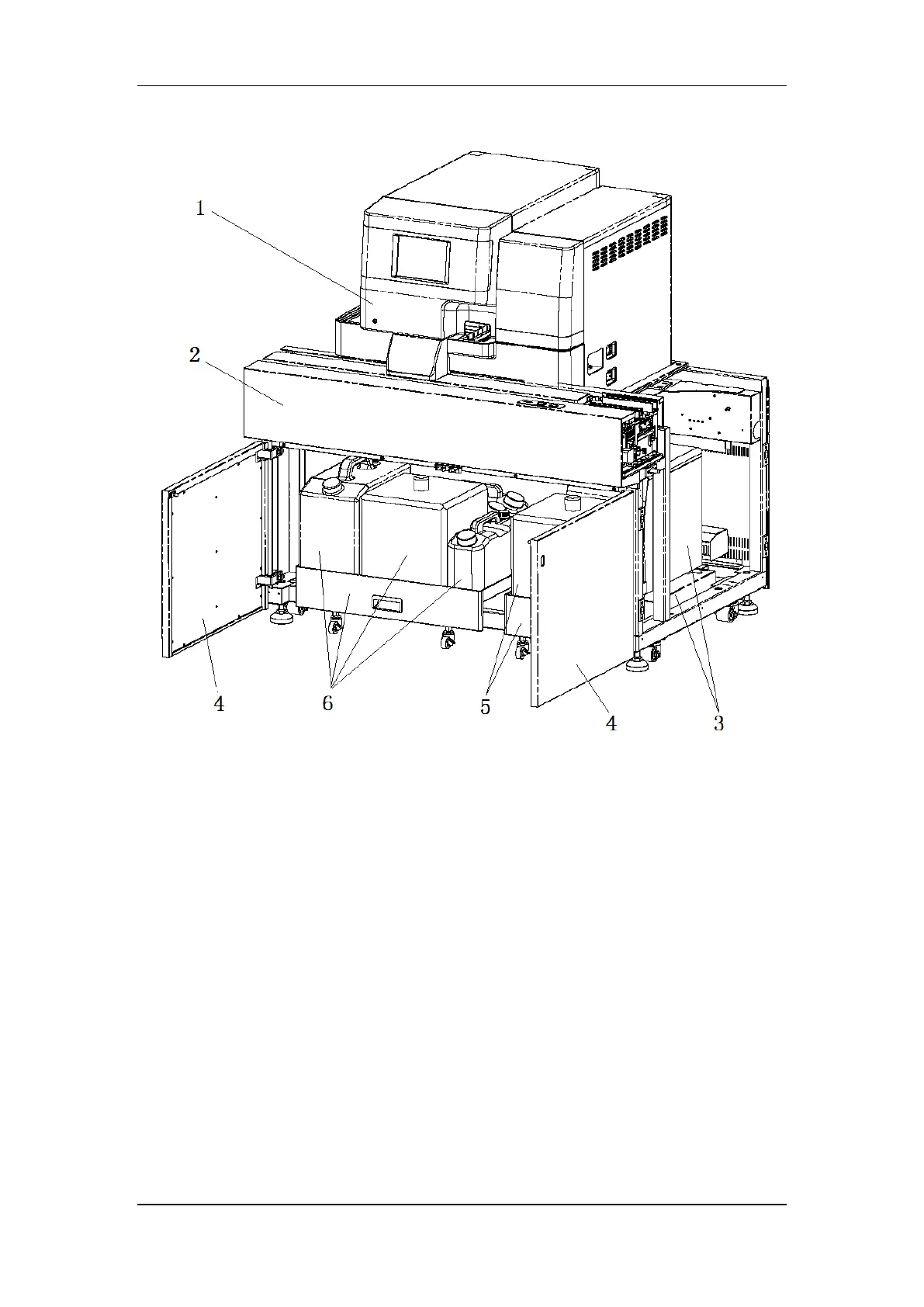

Figure 2-11 Nonterminal SM&S track module
1 --- SM&S
2 --- Nonterminal SM&S track assembly
3 ---Pneumatic unit carriage and pneumatic
unit
4 --- Cabinet door
5 --- Waste carriage and waste
6 --- Reagent carriage and reagents
