Understanding the CAL 8000 System
2-12
 Terminal track module

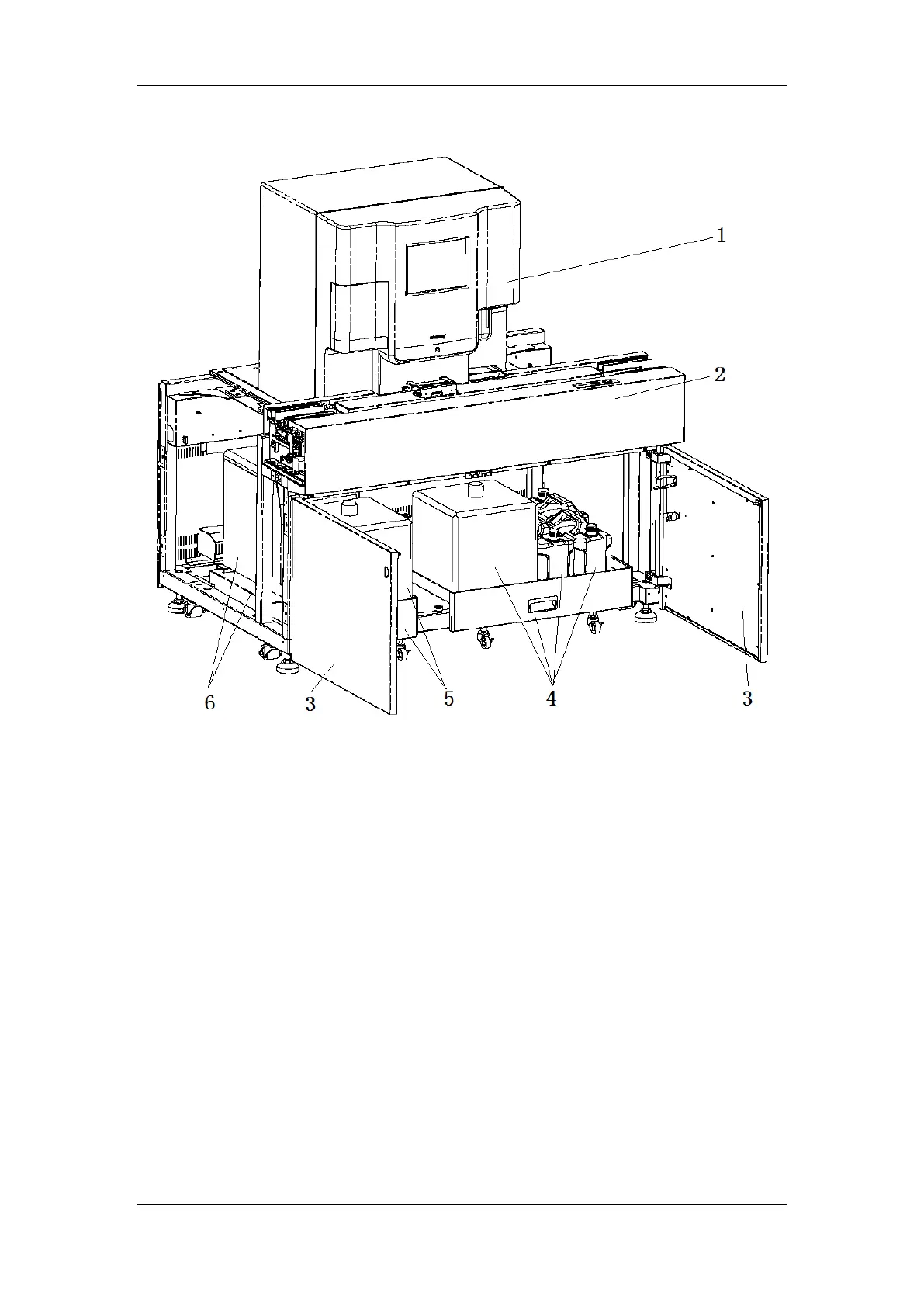

Figure 2-12 Terminal Track Module (Analyzer)
1 --- Analyzer
2 --- Terminal track assembly
3 --- Cabinet door
4 --- Reagent carriage and reagent
containers
5 --- Waste carriage and waste container
6 --- Pneumatic unit carriage and pneumatic
unit
