Understanding the CAL 8000 System
2-13

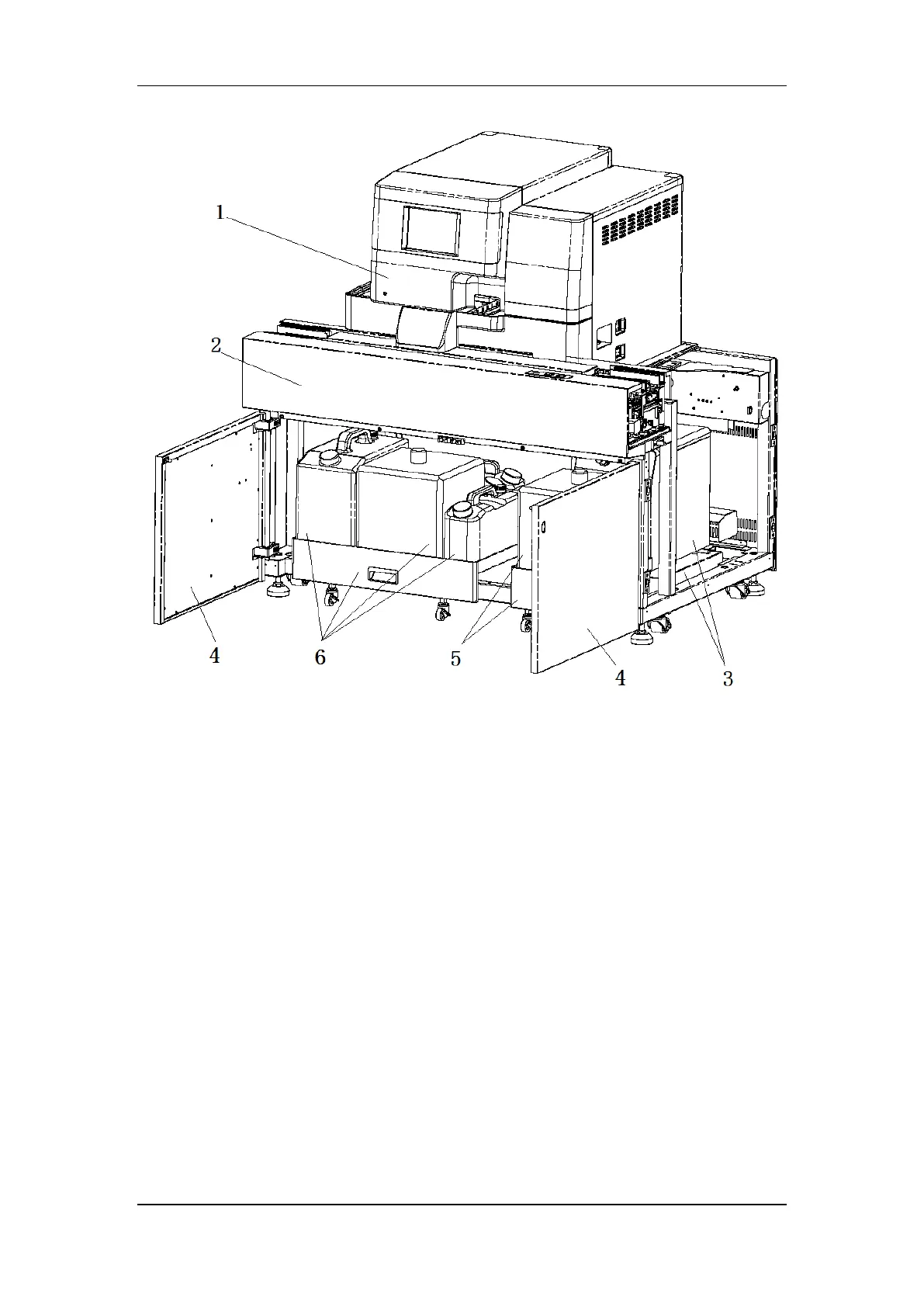

Figure 2-13 Terminal Track Module (SM&S)
1 --- SM&S
2 --- Terminal track assembly
3 ---Pneumatic unit carriage and pneumatic
unit
4 --- Cabinet door
5 --- Waste carriage and waste container
6 --- Reagent carriage and reagent
containers
Track Unit Structure
In Figure 2-9, the track next to the unloading station is called terminal track, other tracks are
called nonterminal track. The difference between terminal and nonterminal track is that
terminal track has an additional posterior transfer track assembly. The lengths of the analyzer
track and SM&S track are different, and the tracks must be used in association with the
Mindray specified analyzers or SM&Ss.
