Understanding the CAL 8000 System
2-14

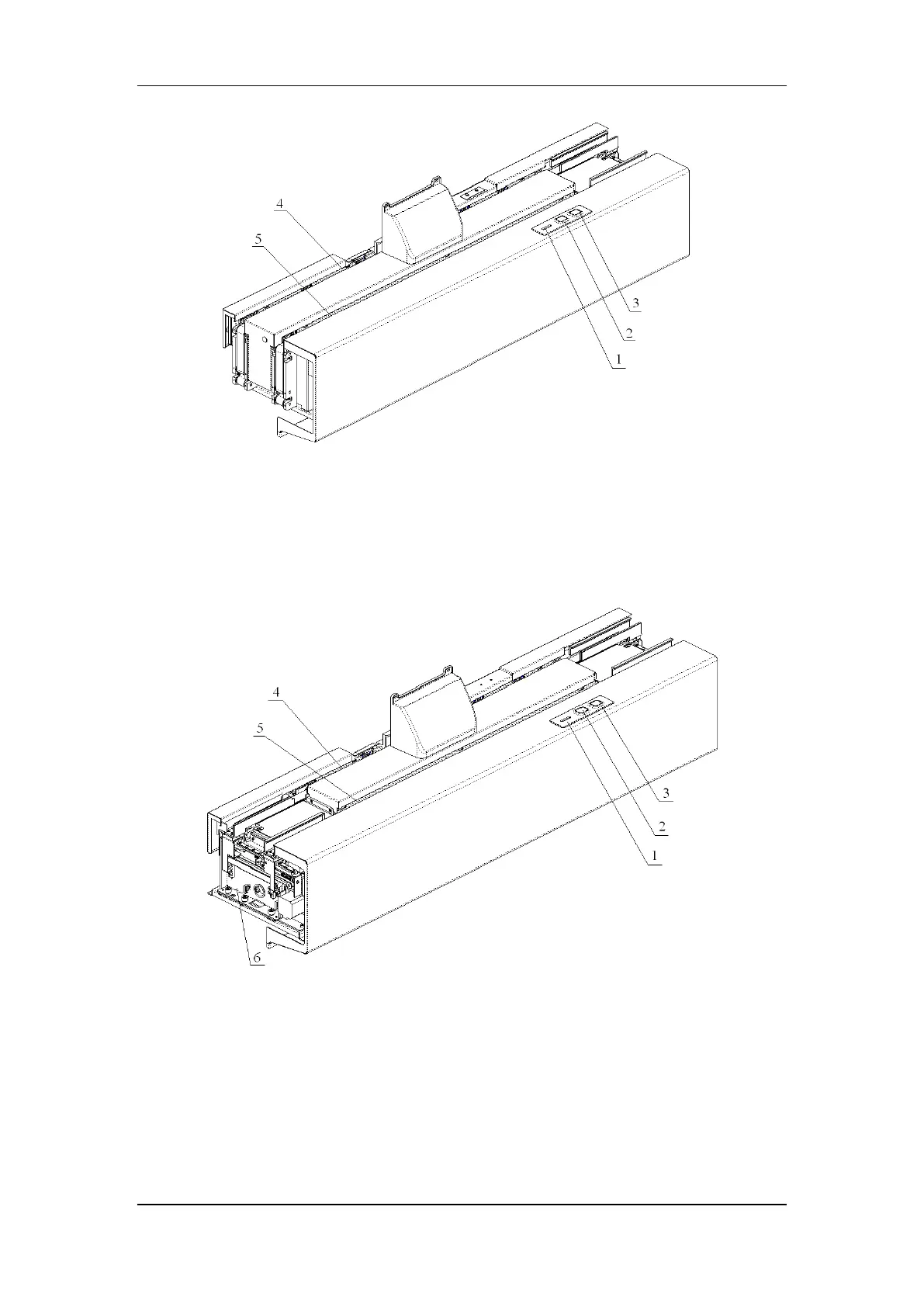

Figure 2-14 Left Front View of Nonterminal Track
1 --- Status indicator 2 --- Reset/Mute key
3 --- Unit off-the-line key 4 --- Interior track
5 --- Exterior track
Figure 2-15 Left Front View of Terminal Track
1 --- Status indicator 2 --- Reset/Mute key
3 --- Unit off-the-line key 4 --- Interior track
5 --- Exterior track 6 --- Posterior transfer track assembly
Each track unit has an interior and an exterior track, the exterior track transports tube racks,
while the interior track is for the storage and positioning of tube racks, which assists the
