Understanding the CAL 8000 System
2-15
analyzer or SM&S with sample processing.

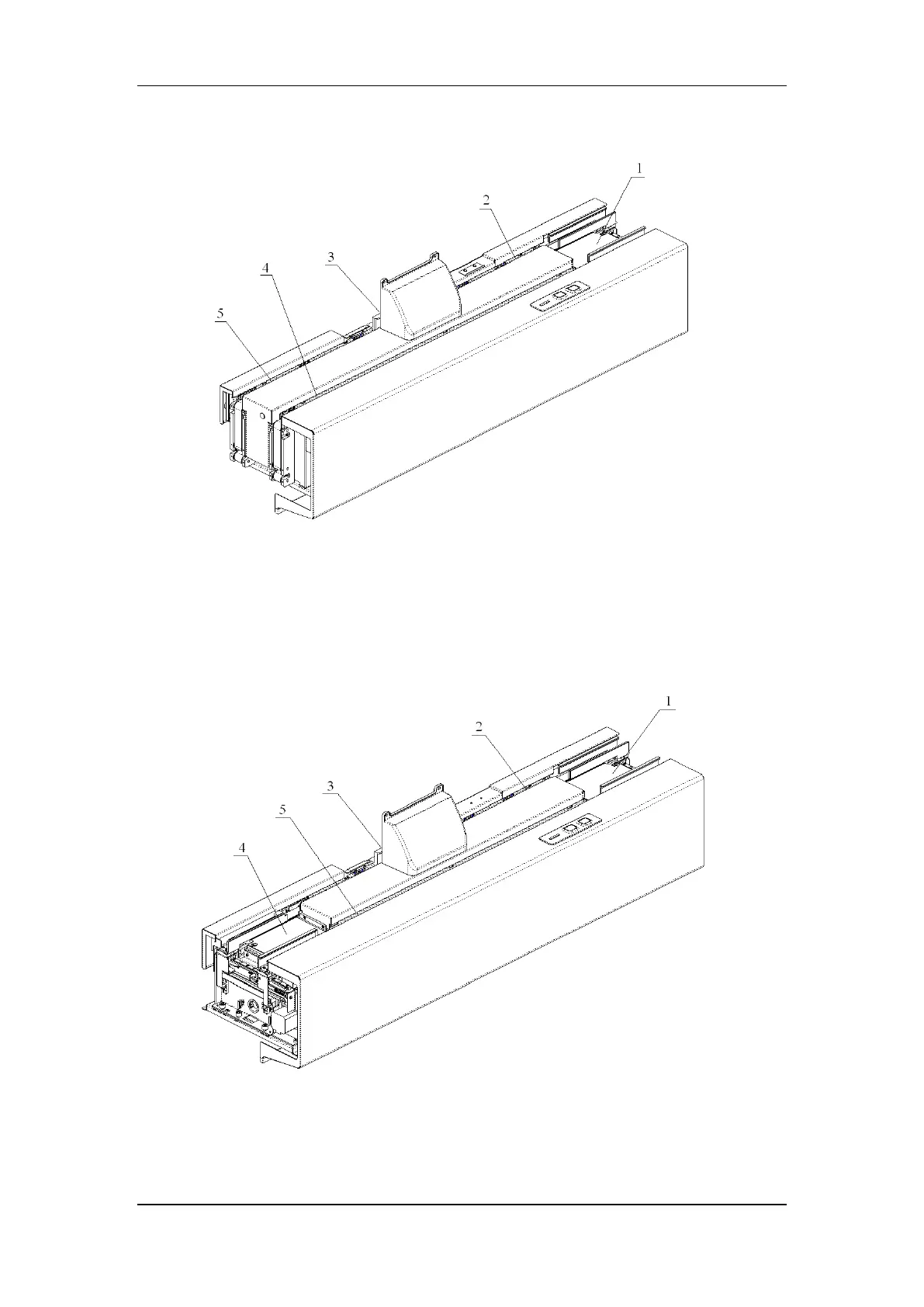

Figure 2-16 Introduction of the Nonterminal Track
1 --- Anterior transfer track area 2 --- Loading buffer area
3 --- Analyzing area 4 --- Unloading buffer area
5 --- Exterior track waiting area
Figure 2-17 Introduction of the Terminal Track
1 --- Anterior transfer track area 2 --- Loading buffer area
3 --- Analyzing area 4 --- Posterior transfer track area
