Probes and Biopsy 13-27
Plastic needle-guided bracket:
(1) Put the sterile probe sheath on.

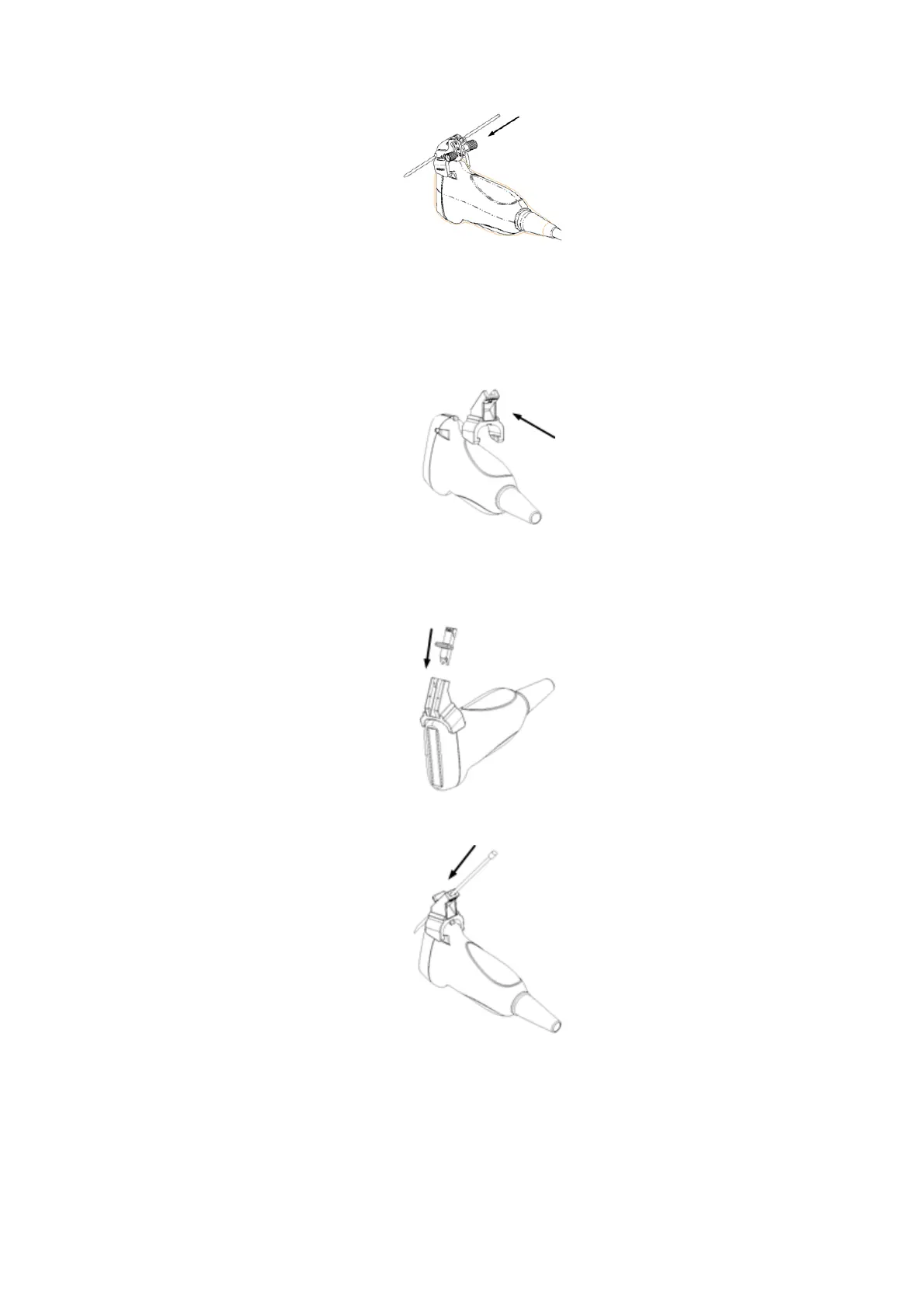

(2) Hold the probe in one hand, select the correct needle-guided bracket and hold it with the
other hand. Align the tab at the narrow end of the needle-guided bracket with the groove
of the probe, then push the needle-guided bracket forward, so the tabs and grooves of the
needle-guided bracket align with the grooves and tabs of the probe.
(3) Check manually to confirm that the needle-guided bracket is securely installed on the
probe.
(4) Select a suitable guiding block and push it into the groove above the angle block, then
clamp it tightly.
(5) Insert a biopsy needle with the same specification as that of the guiding block into the
guiding block hole.
NGB-011
(1) Connect the locating groove on the clamp with the two raised edges on the probe head
and align the locating pit of the clamp with the convex point on the probe head.
(2) Turn the grip knob at the tail of the needle-guided bracket tightly.
