13-36 Probes and Biopsy

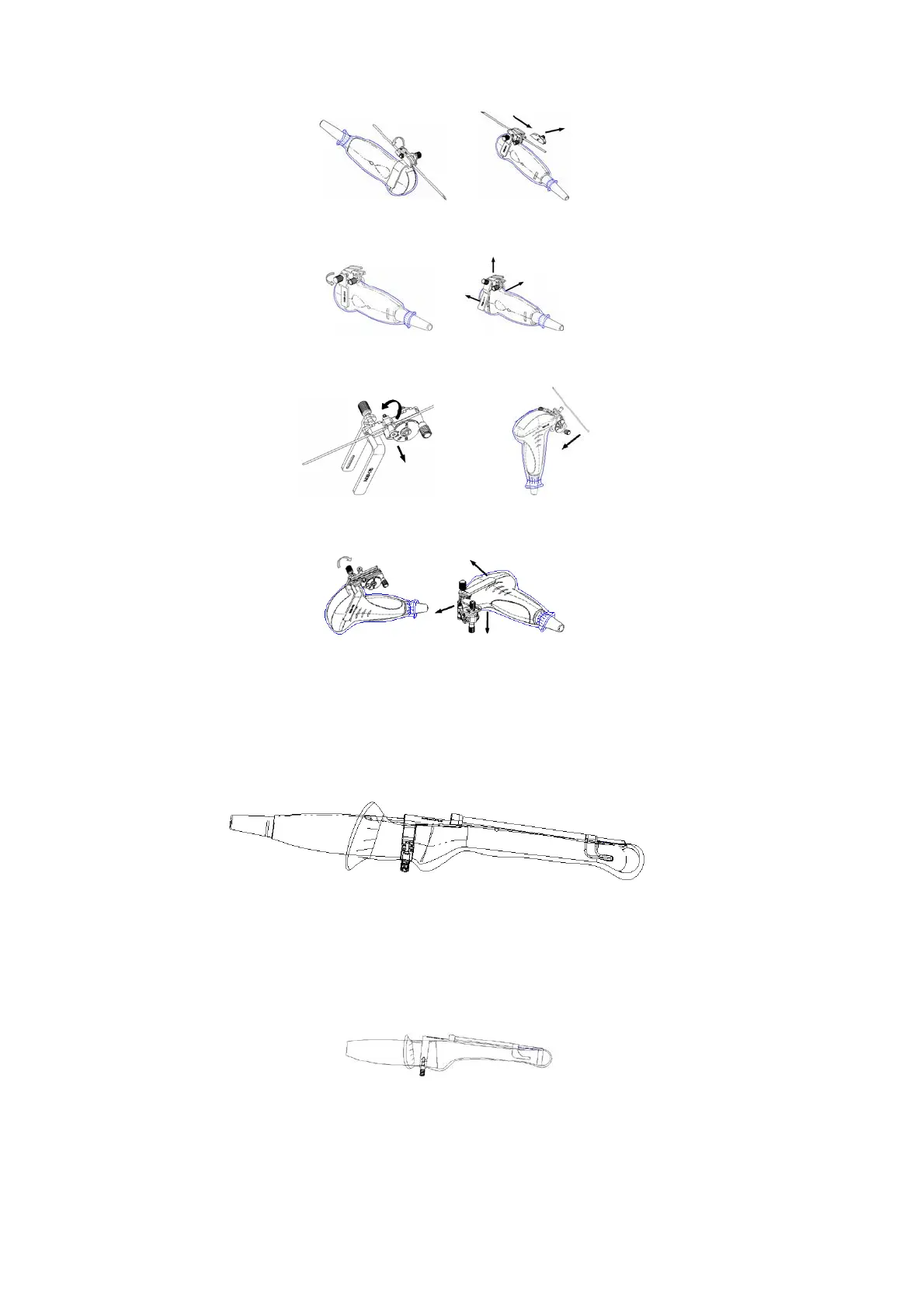

(2) Separate the residual part of the needle-guide bracket and the transducer from the needle.
(3) Loosen the bracket's pinch nut and remove the needle-guided bracket from the transducer.
NGB-022
(1) Pull the lock pin and open up the V-shaped cover to expose the needle.
(2) Separate the bracket and the transducer from the needle.
(3) Screw the pinch nut to release the needle-guided bracket.
(4) Separate the bracket and the transducer.
NGB-025
Hold the prober in the left hand; unscrew the locking nut with the right hand to loose the clamp
(arrow’s direction).Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp,
the locating hole and the front clamp become loose.
NGB-027
Hold the prober in the left hand; unscrew the locking nut with the right hand to loose the clamp
(arrow’s direction).Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp,
the locating hole and the front clamp become loose.
NGB-034
Separate needle from bracket during surgery (NGB-034)
1. Pull the lock pin out until the V-shaped cover can be turned and opened up.
