12-14 Setup

 Transmission Encryption

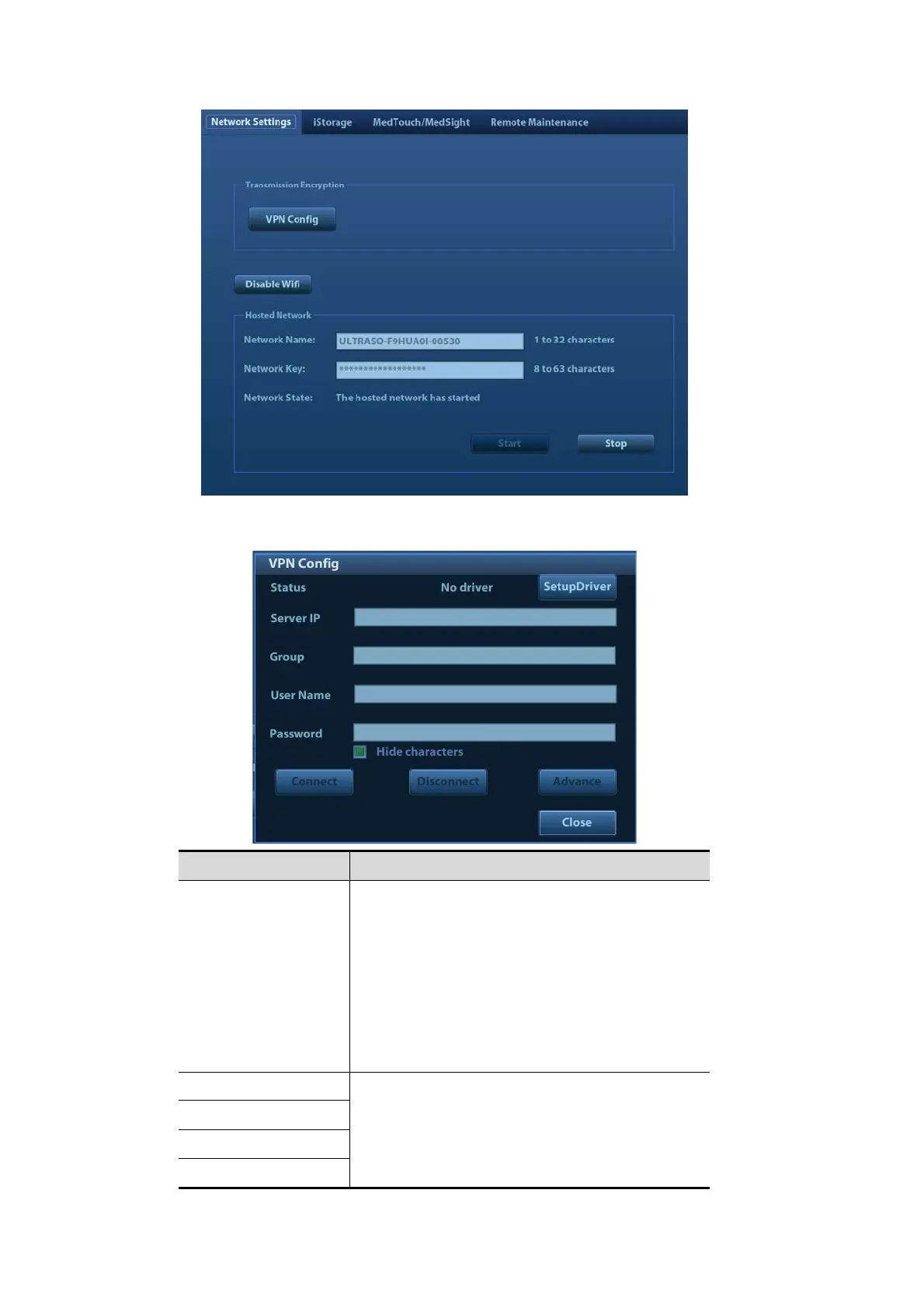

After accessing the network, click [VPN Config] to enter the "VPN Config" interface.

Parameter Description

Status

No driver: click [SetupDriver] to enter the "TAP-

Windows 9.21.2 Setup" interface, and do as

instructed.

Ready: the VPN is ready for use.

Advance: VPN Advance Configuration

Connected: VPN is successfully connected.

Disconnected: VPN is disconnected.

Error: error connection.

Server IP

Group

User Name

Password
