3-8 System Preparation

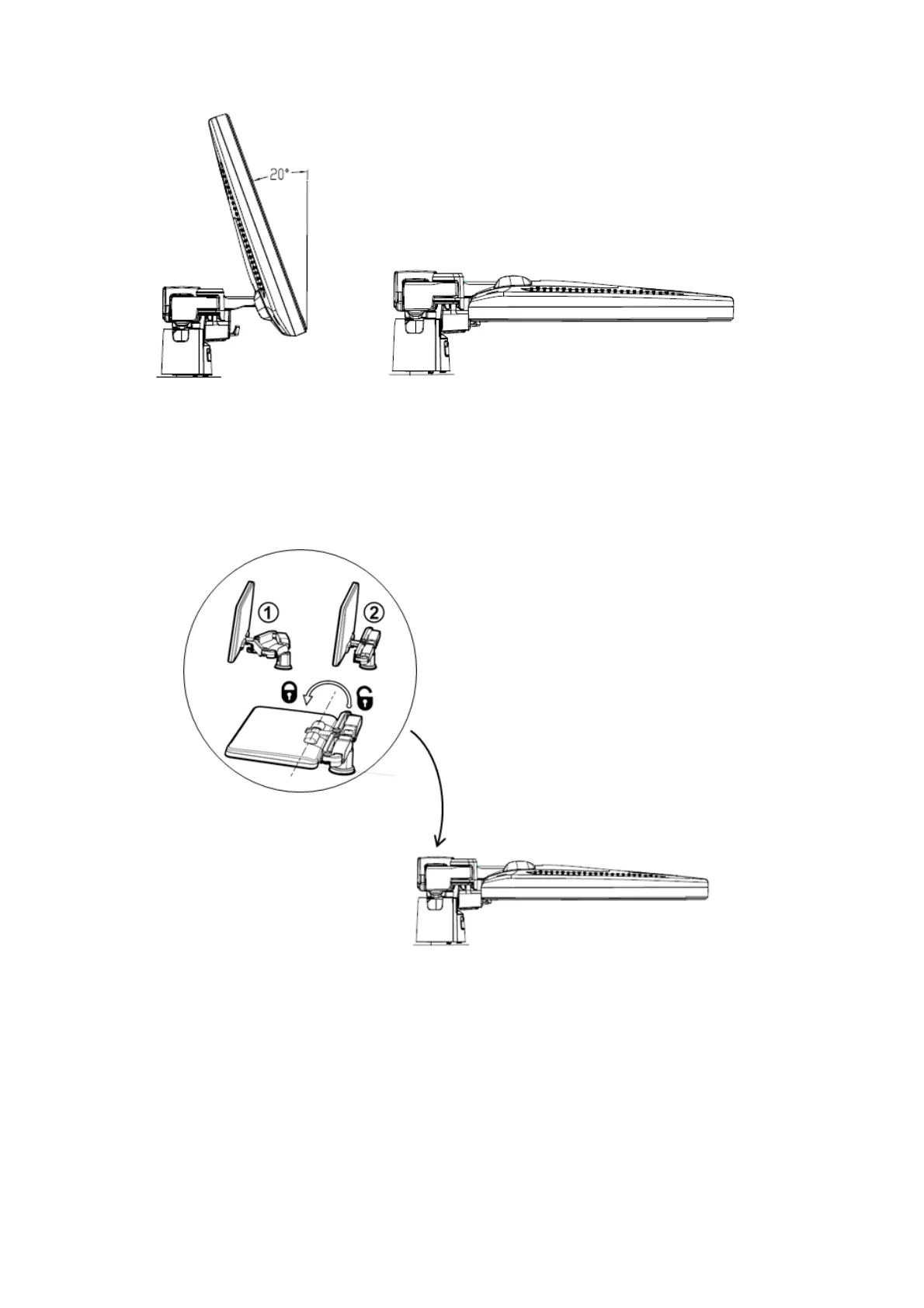

Lock the monitor
If the ultrasound system is required to be moved within a short distance (for example: move to
other department), turn the monitor to the horizontal level, push it to the locking structure, and
then the monitor can be locked. For more details, please refer to the operation diagram that is
attached to the supporting arm.
Label of the operation diagram
