Probes and Biopsy 13-31
NGB-035

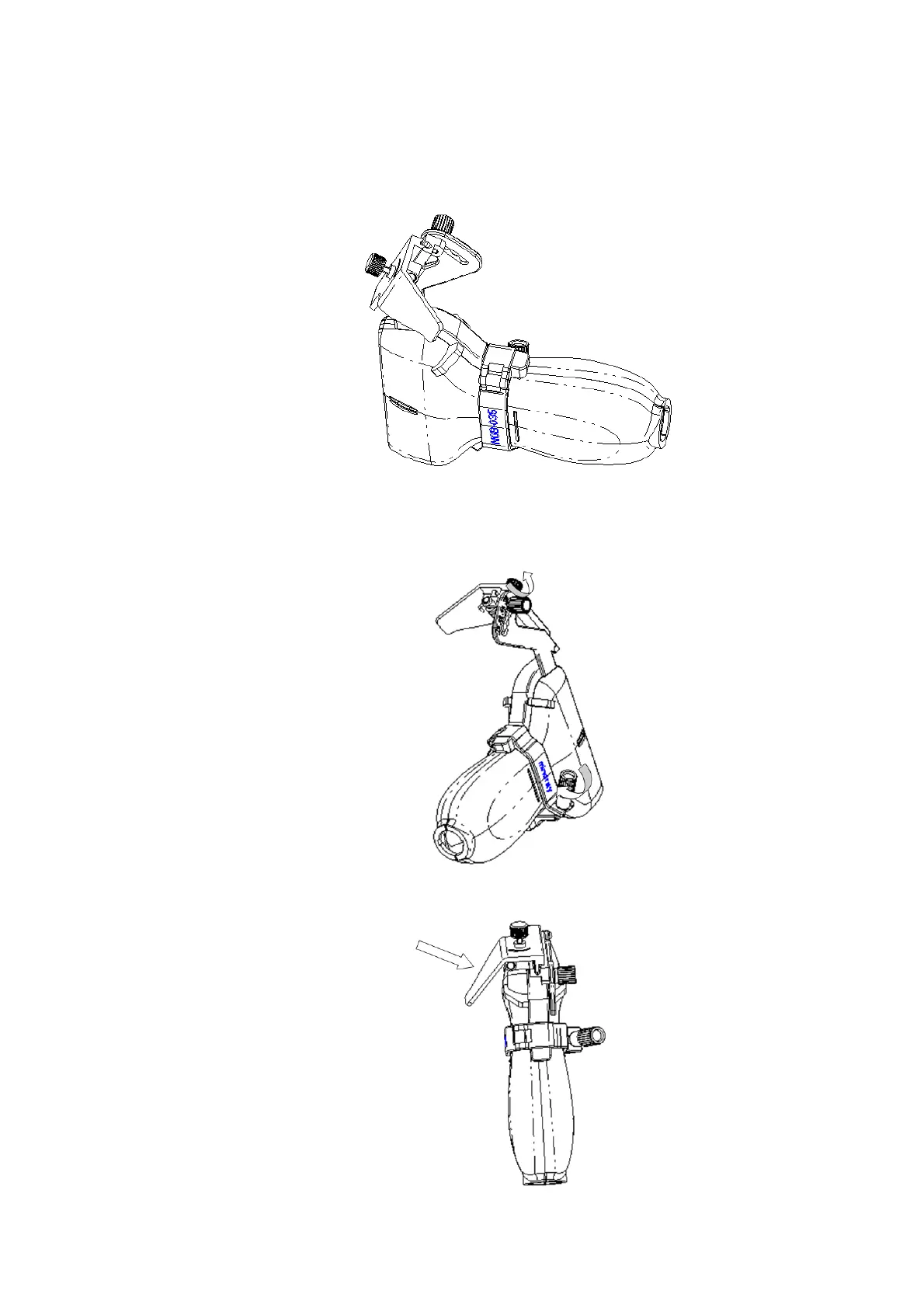

(1) Put the sterile sheath on the probe.
(2) Select a proper needle-guided bracket, and match the locating groove with the tab of the
transducer. Mount the bracket onto the transducer.
(3) Tighten the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe. Loosen the angle adjusting nut.
(4) Hold the probe and press the pressing block to separate V-shaped guiding block from the
pressing block.
To Next Page
