Mindray DP-50 Vet - Removing the Needle-Guided Bracket

12-34 Probes and Biopsy

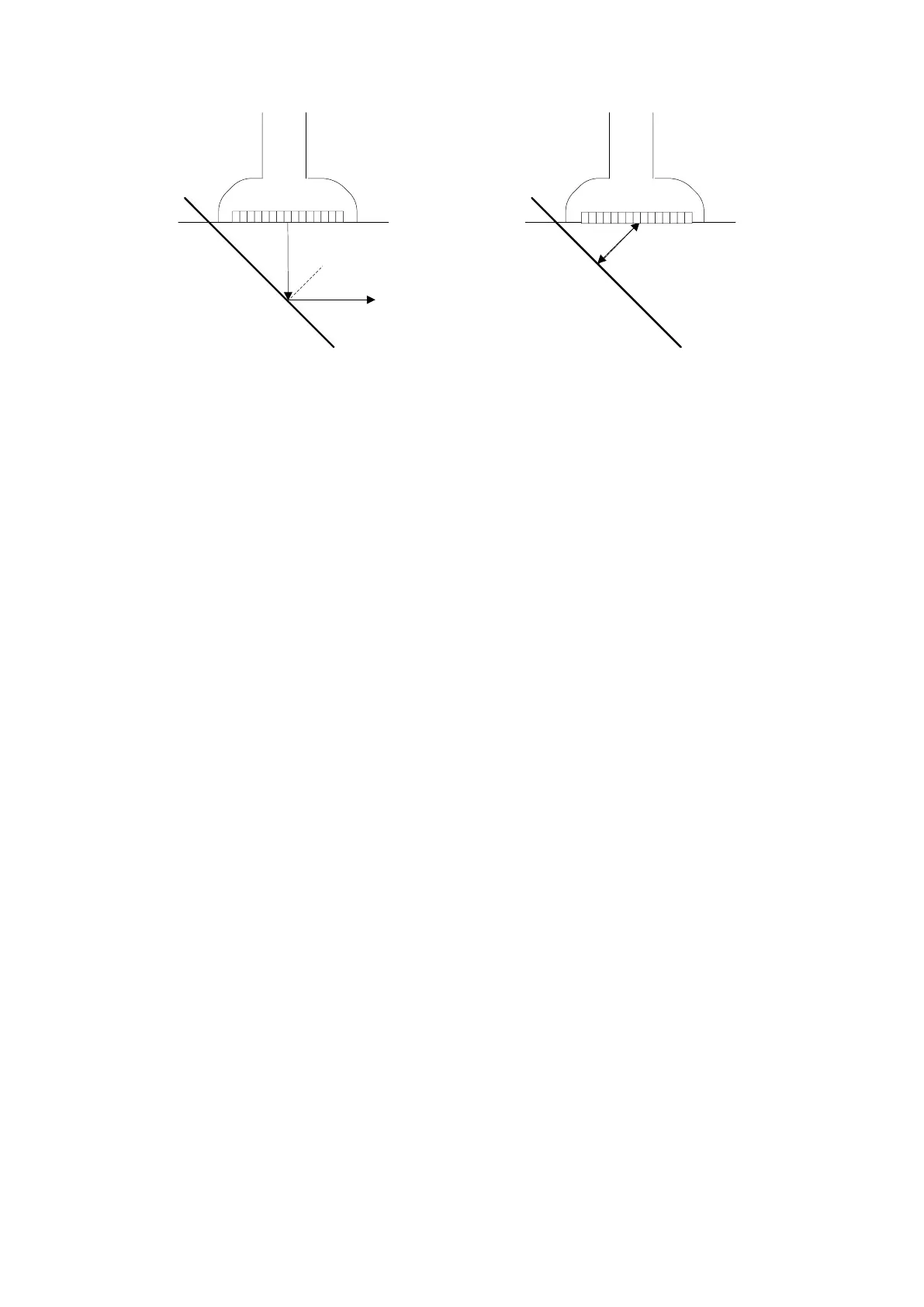

Figure 1 Figure 2
To enter/exit iNeedle
 To enter iNeedle
Click [iNeedle] item in B page on the screen.
Or, you can assign a user-defined key for entering iNeedle.
 Open iNeedle in Biopsy status
1. Perform scanning and locate the target, press <Biopsy> to enter the screen.
2. Click [iNeedle] to enter the status; available adjusting parameters are displayed on the
menu.
 To exit iNeedle
Press the user-defined key or click [iNeedle] to exit the status and enter B mode.
Needle Steer
Description
This function adjusts the biopsy needle angle via changing the steer angle of
the scan line. The iNeedle affecting region changes correspondingly.
Operation
Click [Needle Steer] item on the screen.
B/iNeedle
Description
This function is used to display B image and iNeedle image synchronously.
Operation
To turn on or off the function, click [B/iNeedle] on the screen.
Tips: iZoom (full-screen magnification) is available on iNeedle status.
12.2.8 Removing the Needle-guided Bracket
 NGB-001/ NGB-002/ NGB-003/ NGB-005 metal/needle un-detachable needle-guided
bracket:
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
 NGB-001 Metal-needle detachable
1. Pull the lock pin and open up the V-shaped cover to expose the needle.
