16 Probes and Biopsy

Operator’s Manual 16 - 45

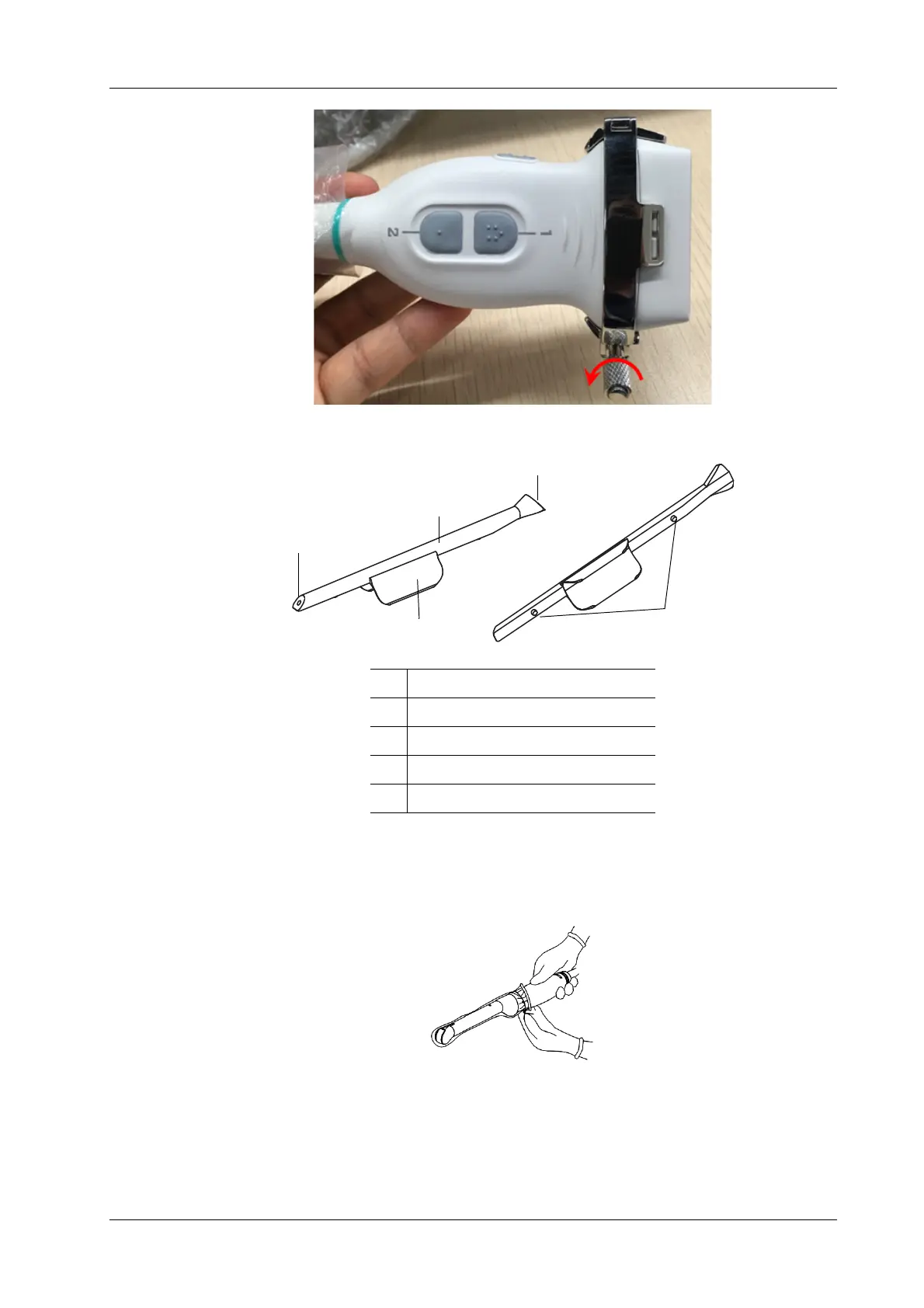

NGB-045 Metal-needle undetachable needle-guided bracket

Perform the following procedure:

1. Install the needle-guided bracket:

a. Put on the sterile probe sheath.

b. Align the needle-guided bracket with the probe to align the locating bulges on the needle

guide with the locating grooves on the probe, then turn the retaining clamp to the correct

position.

1 Needle exit

2Needle guide

3 Needle entry

4 Retaining clamp

5 Locating bulges
