Trio™ Operating Instructions 0070-10-0666-01 2 - 85
Operations Recorder (Optional)
When parameter alarms occur, a maximum of two (2) waveforms can print simultaneously. If
more than two (2) parameter alarms are activated simultaneously, the recorder will print out
those of the highest priority level. If the alarm events are of the same priority level, the most
recent alarm event will be printed. If an alarm event occurs when another alarm printout is
already in progress, the more recent alarm printout will not begin until the current alarm
printout is complete.
Graphic/List Trend Print
To print the graphic trend of the currently selected parameter, select PRINT from the
GRAPHIC TREND menu. To stop the print job currently in progress, select PRINT on the
front panel keypad.

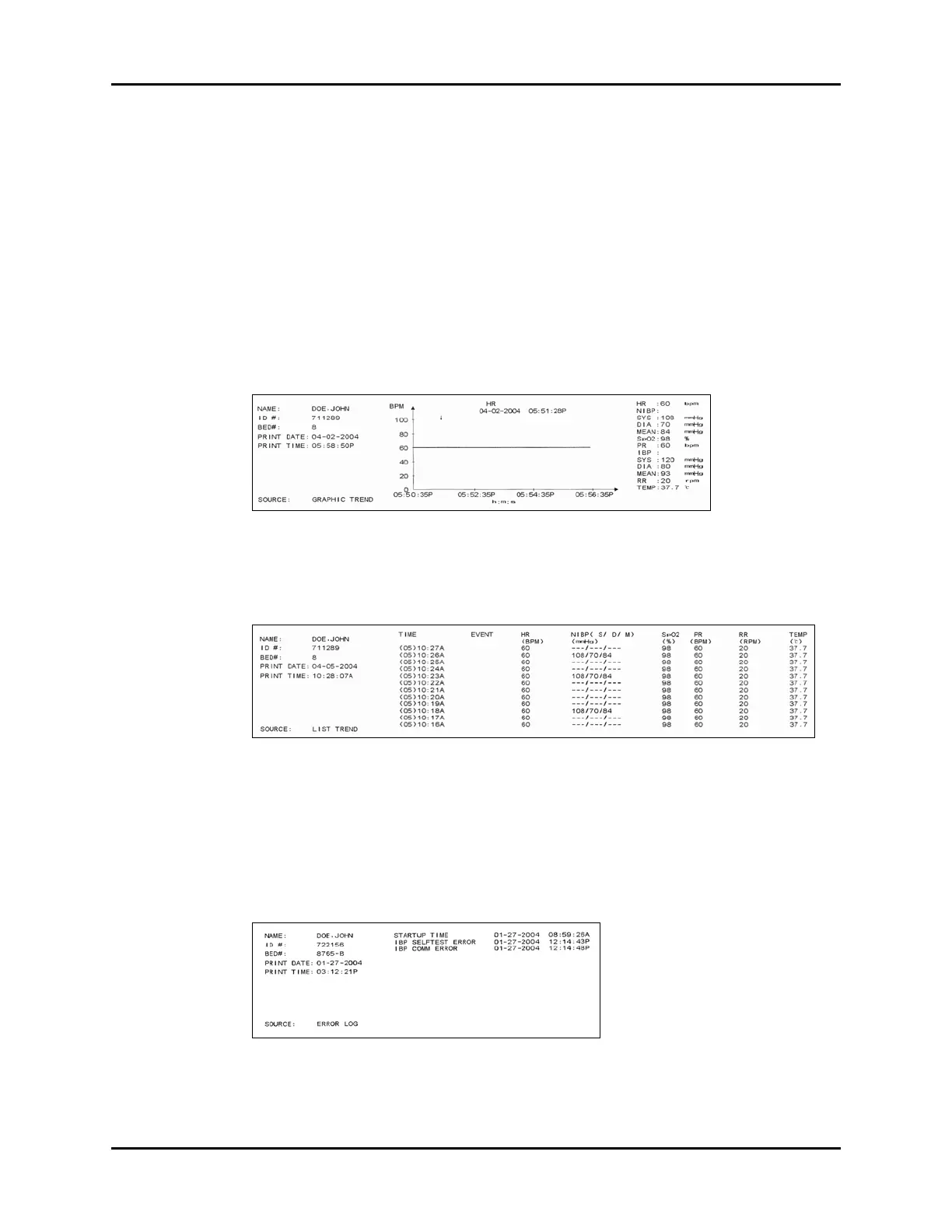

FIGURE 2-60 Example, Graphic Trend Printout
To print the list trend of all parameters, select PRINT from the LIST TREND menu. To stop the
print job currently in progress, select PRINT on the front panel keypad.
FIGURE 2-61 Example, List Trend Printout
Error Log Print
To print information displayed in the ERROR LOG menu, select MAINTENANCE from the
SYSTEM MENU. From the MAINTENANCE menu, select ERROR LOG. Select PRINT
from the ERROR LOG menu. To stop the print job currently in progress, select the PRINT
key on the front panel keypad.
FIGURE 2-62 Example, Error Log Printout
