Trio™ Operating Instructions 0070-10-0666-01 1 - 11
General Product Description Right Side Panel
1.3 Right Side Panel
The connectors for patient cables and sensors are located on the right side panel
(see FIGURE 1-6).

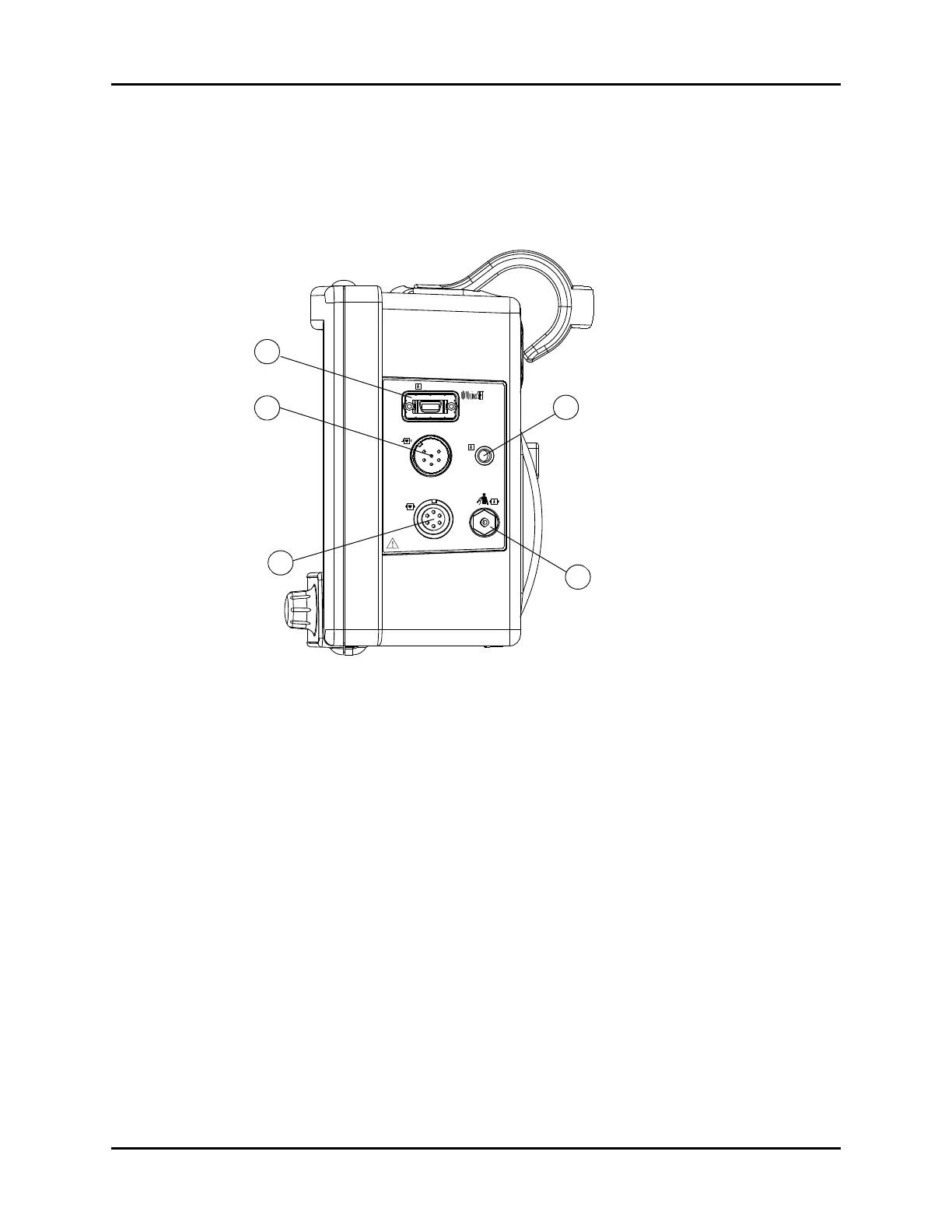

FIGURE 1-6 Right Side Panel
1. SpO
2
Receptacle
This receptacle is used to attach the SpO
2
sensor to the monitor.
2. Optional IBP
A six-pin male receptacle used for an IBP connection.
3. ECG Receptacle
A six position female receptacle used to attach a 3 or 5 Lead ECG cable.
4. T1 Receptacle
A standard 1/4” phone jack is used to mate with the YSI series 400 temperature probe.
5. NIBP Quick-Connect Rectus* Pneumatic Fitting
This pneumatic fitting is used to attach the NIBP hose to the unit.
* Quick Connect Pneumatic Fittings available from Rectus-TEMA Corporation.
SpO
2
T1
IBP 1
ECG
¨
1
4
5
3
2
