Mindray Trio - Recorder (Optional); Print Functions

Recorder (Optional) Operations
2 - 82 0070-10-0666-01 Trio™ Operating Instructions
2.7 Recorder (Optional)
The optional Trio Recorder provides a printed record of all patient monitored parameters,
including numeric and waveform data. It is a two-trace thermal strip chart recorder. The Trio
recorder uses plain white thermal paper, 50mm wide (part number 0683-00-0505-02.) See
section 4.7 for Paper Replacement Instructions.
2.7.1 Print Functions
The Trio performs the following print functions:
• Continuous, real-time print
• 8 second, real-time print
• Interval, real-time print
•Alarm print
• Graphic/List Trend print
• Error log print
• Clear print tasks
Accessing the Printer Setup Menu
1. Select the MENU icon from the main screen. The SYSTEM MENU is displayed.
2. Select MONITOR SETUP. The MONITOR SETUP menu is displayed.
3. Select PRINTER SETUP. The PRINTER SETUP menu (FIGURE 2-57) is displayed.

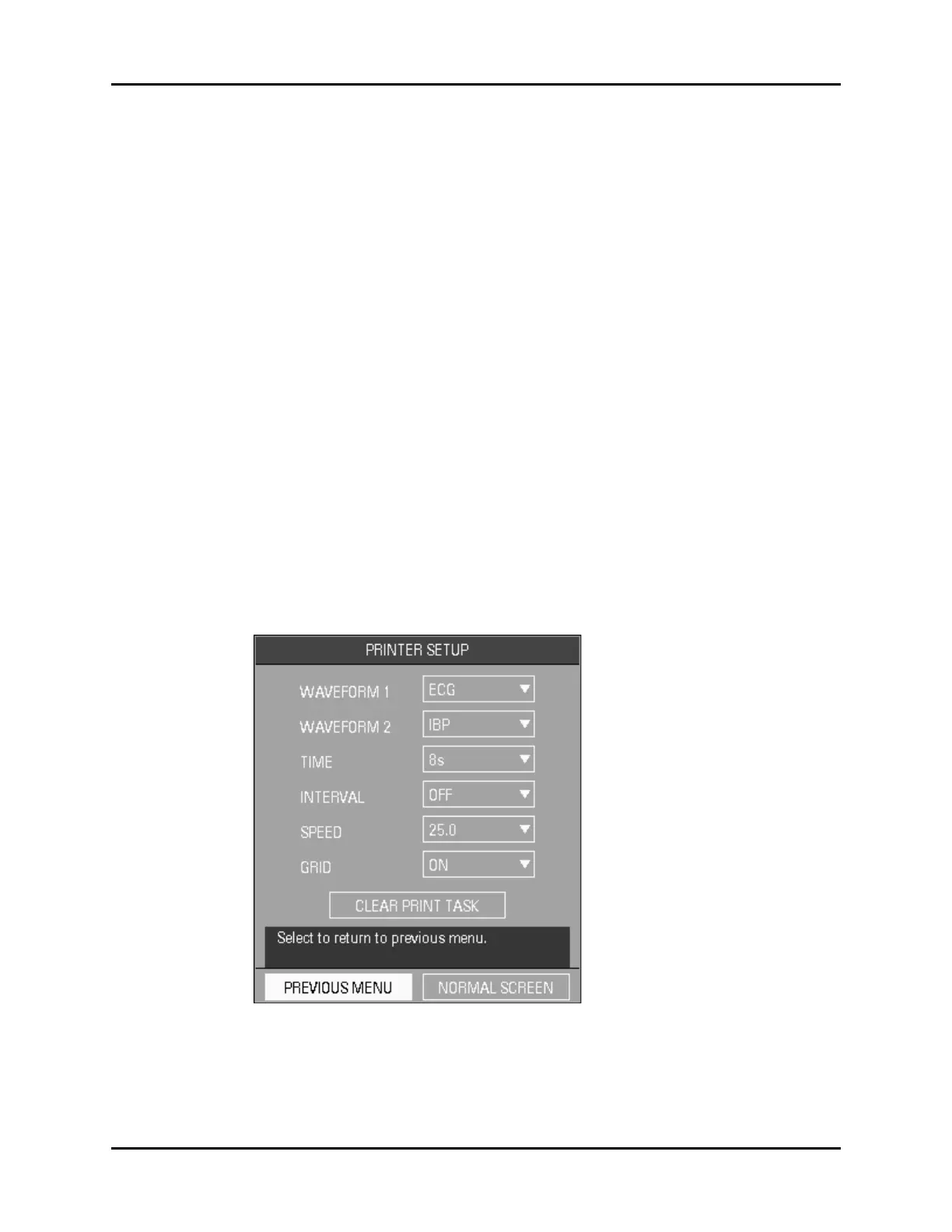

FIGURE 2-57 Printer Setup Menu
