Rear Panel General Product Description
1 - 12 0070-10-0666-01 Trio™ Operating Instructions
1.4 Rear Panel
The following connectors are located on the rear panel (see FIGURE 1-7).

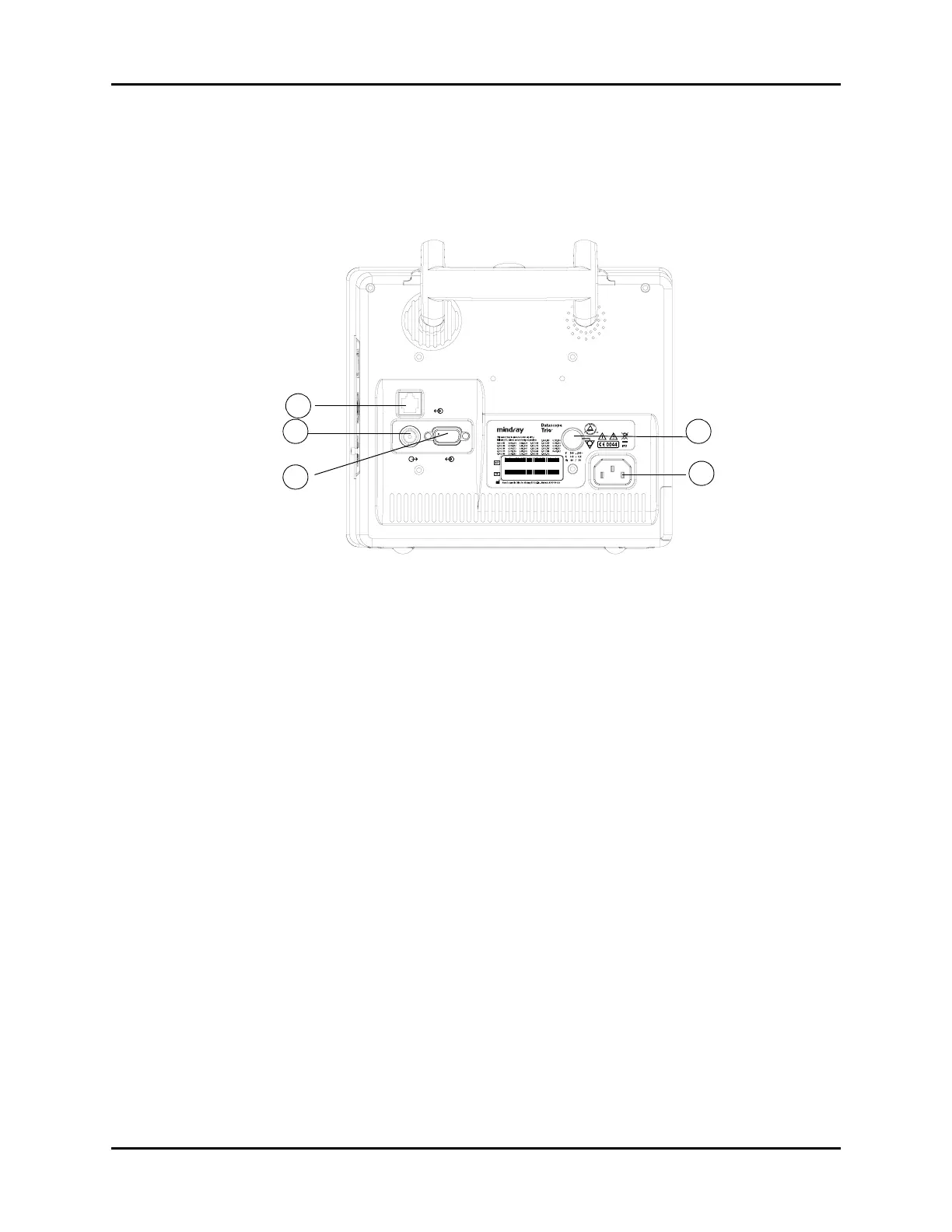

FIGURE 1-7 Rear Panel
1. Ethernet Port (CS1)
The ethernet port is an RJ45 jack that is used for software upgrades.
NOTE: This port should not be used while monitoring a patient.
2. Analog Output (AO1)
The analog signal output connector may be used with a oscillometer, pen recorder or other
external devices (see section 4). The connector is a BNC jack.
NOTE: After connecting any external device to the Analog Output,
verify that leakage currents do not exceed accepted limits.
CS1
SP1
AO1
XXXX - XX - XXXX - XXXXX
XXXX - XX - XXXX - XXXXX
1
2
3
4
5
