Parameter Menus Operations
2 - 36 0070-10-0666-01 Trio™ Operating Instructions
2.4.3.1.1 Masimo SET
®
SpO
2
Setup Menu

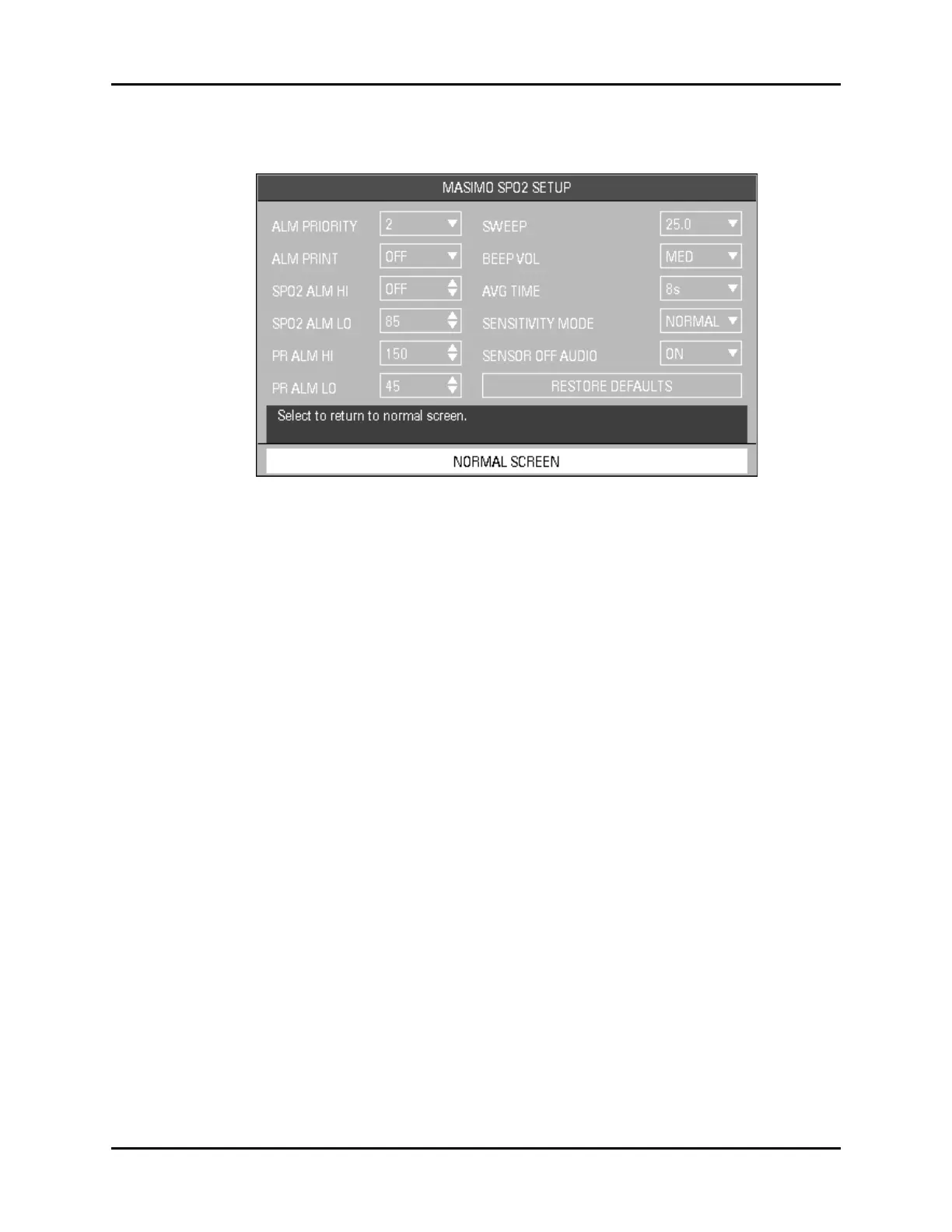

FIGURE 2-32 Masimo SET SpO
2
Setup Menu
Accessing the Masimo SET SpO
2
Setup Menu
To access the MASIMO SPO2 SETUP menu, select SpO2 from the SpO2 parameter tile
using the Navigator™ Knob. Once in the MASIMO SPO2 SETUP menu, use the Navigator
Knob to adjust settings. To close the menu, select NORMAL SCREEN (from the menu or the
Front Panel Keypad).
Masimo SET SpO
2
Setup Menu Selections
ALM PRIORITY Enables the user to select the priority of the SpO
2
alarm. Choices are:
1, 2 and 3. Priority 1 alarms are considered the most serious.
ALM PRINT Enables or disables automatic printing during an SpO
2
alarm
condition. Choose ON to enable printing upon SpO
2
alarm. Choose
OFF to disable printing upon SpO
2
alarm.
SPO2 ALM HI Allows the user to set the upper limit of the SpO
2
alarm. (See
“Masimo SET SpO2 Alarm Limits” on page 2-38.)
SPO2 ALM LO Allows the user to set the lower limit of the SpO
2
alarm. (See “Masimo
SET SpO2 Alarm Limits” on page 2-38.)
PR ALM HI Allows the user to set the upper limit of the Pulse Rate alarm. (See
“Masimo SET SpO2 Alarm Limits” on page 2-38.)
PR ALM LO Allows the user to set the lower limit of the Pulse Rate alarm. (See
“Masimo SET SpO2 Alarm Limits” on page 2-38.)
SWEEP Adjusts the speed of the SpO
2
waveform on the display. The
selections are 12.5 and 25.0 mm/sec.
