Examination
32 Operator's Manual
•
Inconsiderationoftheabove2points,theusershouldfreezetheimage,whichturns
thepowertothetransduceroff,andallowtheendoscopedeflectioncontrolstobe
disengagedwheneveractivescanningisnotdesired.
•
Properpatientpreparationisessentialforsuccessfulexaminations.Thisincludes
restrictionsonfoodandliquidintakeaswellasathoroughexplanationofthe
examinationprocedureandotherinstructionsastheparticularsituationwarrants.
•
Theuseofabite-guardduringallTEEexaminations ismandatorytoprotectthe
transducerfrompossibledamage.
•
Theuseofprotectiveglovesduringtheexaminationisencouraged.PleaseseetheU.S.
FoodandDrugAdministration’sMedicalAlertonLatexProducts(FDA1991).
•
Inadditiontothehighleveldisinfection,theuseofaprotectivesheathmayprovide
anevenhigherlevelofprotectionagainstcontaminationofthetransducer.Contact
CIVCOforprotectivesheathsandapplicatorsforprotectivesheaths.
4.3.2 OperationofDeectionControls

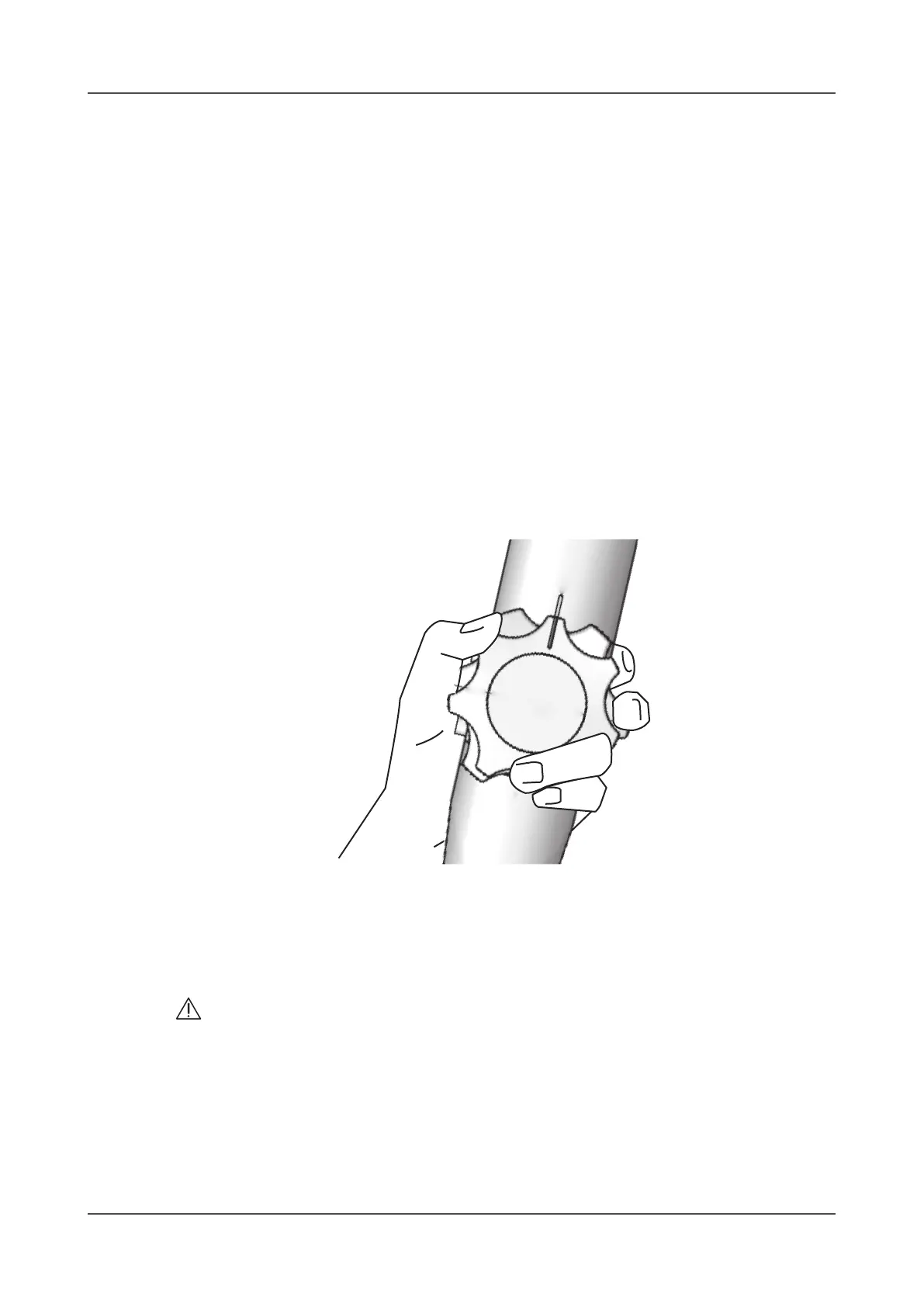

Theendoscopeisdesignedforone-handoperation.Figurebelowshowstheoperator
holdingtheendoscopehandleinthelefthand(forreferenceonly).Thumb,rstandsecond
ngersinteractwiththedeectionandscanplanecontrols.
Therearetwowheelsforcontrollingthetransducertipdeection.Thewheelshavebrake
andfreely-movingmodes.Inthebrakedmode,themovementofthedeflectionwheelis
restrained.Thisisusedtoholdthetipinacertainposition.
Specialcareshouldbetakenwheninsertingandremovingthetransducer.
WARNING
●
To avoid injury to the patient, using excessive force during insertion, positioning,
or withdrawal may cause trauma to the stomach or esophagus.
●
To prevent damage to the esophagus when inserting or withdrawing the
transducer, the control wheel must be in the freely moving, neutral, and un-
braked state
