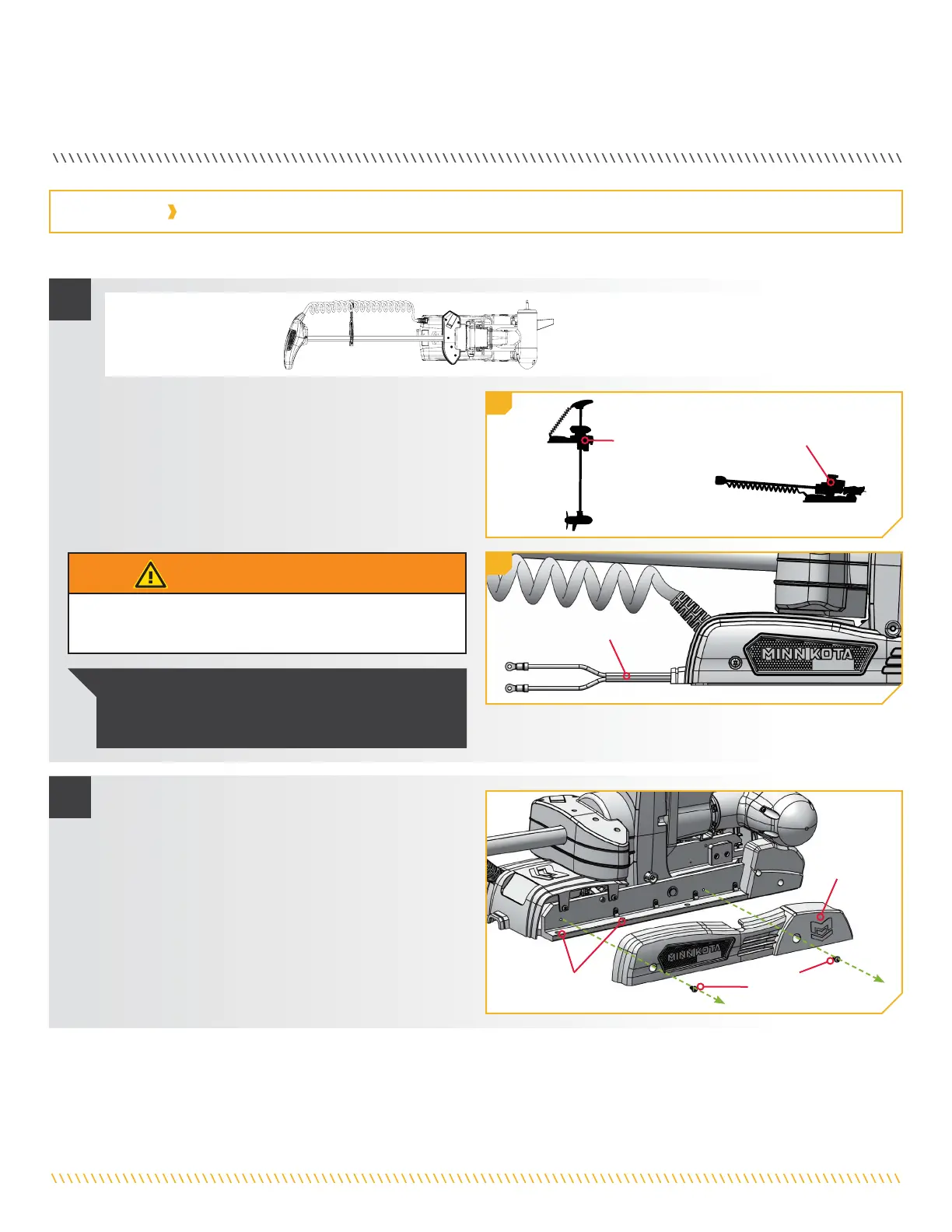

MINN KOTA RIPTIDE INSTINCT QUEST User Manual

INSTALLATION
Power CablesPower Cables
DeployedDeployed
StowedStowed
2
Sideplate Sideplate
ScrewScrew
SideplateSideplate
Mounting HolesMounting Holes
c. Remove the four Sideplate Screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
d. Remove the Right Sideplate and the Left Sideplate to
expose the six mounting holes in the Base Extrusion.
NOTICE: The trolling motor weighs up to 90lb.
Minn Kota recommends having a second person help
with the installation.
a. Place the trolling motor (Item #6) on an elevated,
level surface, such as a workbench or the tailgate
of a pickup. The motor, as removed from the box,
should be in the stowed position.
b. Make sure that the Power Cables from the battery
are disconnected or that the breaker, if equipped,
is “o.”
1
WARNING
Make sure the motor is on a level surface and is not
connected to a power source.
ITEM(S) NEEDED
#6 x 1
1a
1b
INSTALLING THE RIPTIDE INSTINCT QUEST
10 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
