MOTOR ADJUSTMENTS
MOTOR ADJUSTMENTS
a. Place the motor in the stowed position. Once
stowed, turn the motor o.
Socket Head Socket Head
Cap ScrewCap Screw
Coil CordCoil Cord
Control Control
HeadHead
ShaftShaft
Lift BeltLift Belt

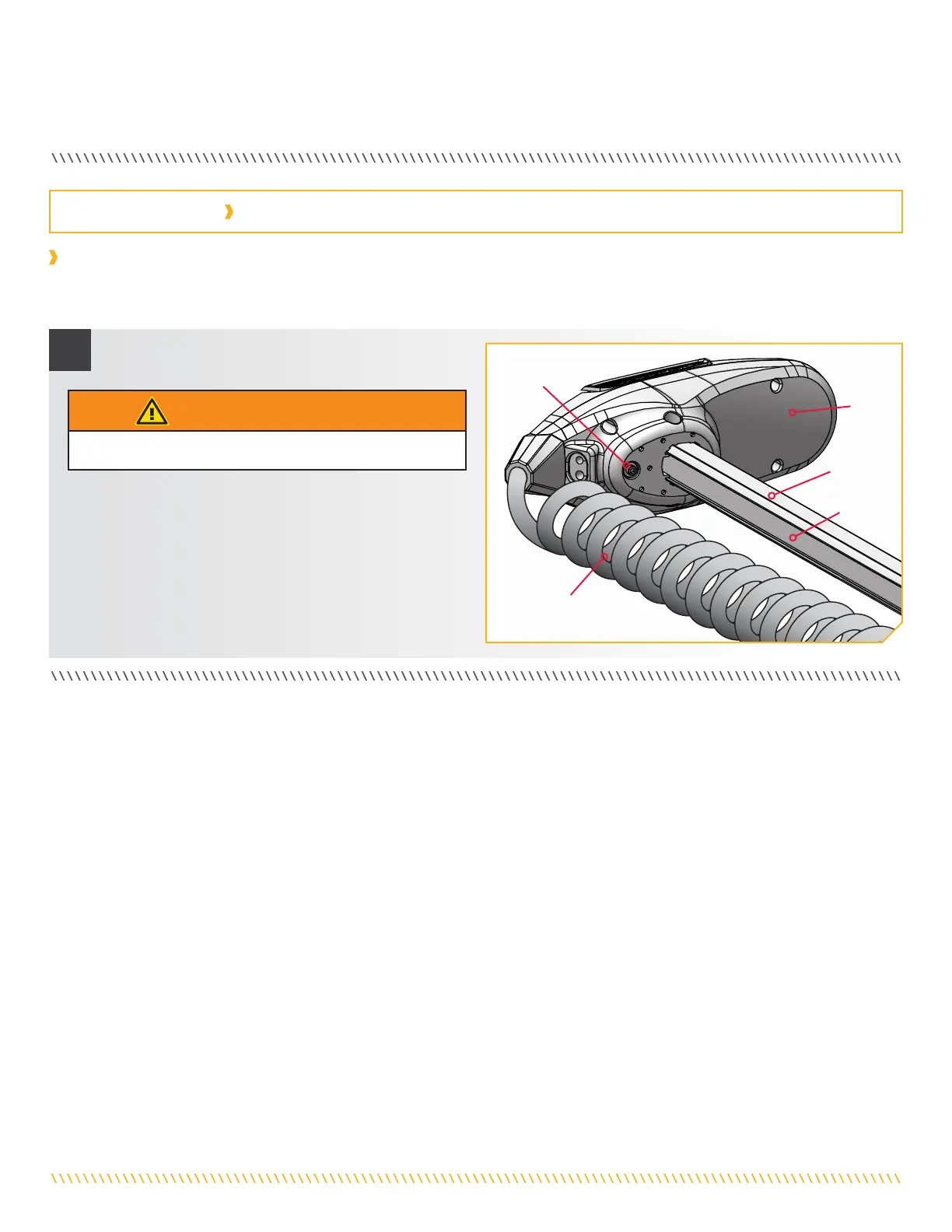

Adjusting the Lift Belt
The Lift Belt assists in trimming the Lower Unit up and down. Slack may appear periodically in the Lift Belt along the Shaft of the motor.
To maintain tension on the Lift Belt, the screw that holds tension on the Lift Belt may occasionally require small adjustments.
1
WARNING
Disconnect the motor from power to avoid accidental operation.
b. Locate the Socket Head Cap Screw on the bottom of
the Control Head, between the Coil Cord and Shaft.
Adjust this Screw to increase tension on the Lift Belt.
c. Using a 5/32" Allen Wrench, turn the Socket Head
Cap Screw clockwise to tighten the Lift Belt. Tighten
to 8–10 in-lb.
To Next Page
