minnkota.johnsonoutdoors.com | 53 ©2023 Johnson Outdoors Marine Electronics, Inc.
MOTOR ADJUSTMENTS

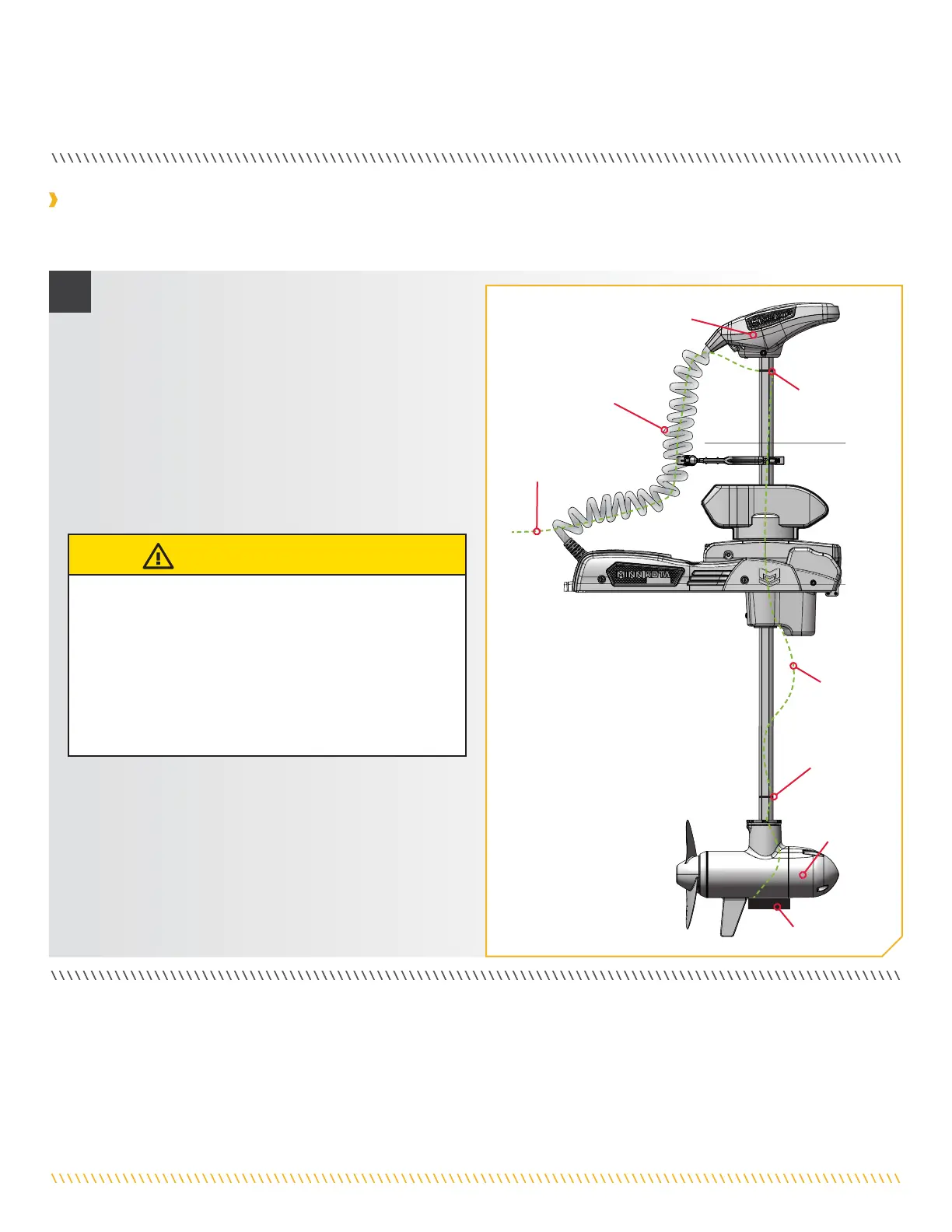

a. Mount the External Transducer according to
directions provided with the transducer.
b. Leave enough slack in the Transducer Cable
between the Lower Unit and Control Head to allow
the motor to properly stow and deploy.
c. Use two tie wrap cables to secure the Transducer
Cable to the Shaft just above the Lower Unit and just
below the Control Head.
d. Run the Transducer Cable through the Coil Cord to
the power supply.
SlackSlack
Tie Wrap Tie Wrap
CableCable
Lower UnitLower Unit
Tie Wrap Tie Wrap
CableCable
External TransducerExternal Transducer
Transducer CableTransducer Cable
Coil CordCoil Cord
Control HeadControl Head
1
CAUTION
Failure to follow the recommended wire routing for the Sonar
and External Transducer Cables may cause damage to the
product and void your product warranty. Take care to test
the length and placement of all cables to ensure that there
is enough slack where needed and that cables are free of
entanglement by moving parts. Routing the cables in any
way other than as directed may cause damage to the cables
via pinching or severing.
Installing an External Transducer
An external transducer is not included with your trolling motor. An external transducer can be installed onto motors that have Advanced
GPS Navigation.
