MINN KOTA RIPTIDE INSTINCT QUEST User Manual

INSTALLING THE RIPTIDE INSTINCT QUEST
Your new Riptide Instinct QUEST comes with everything you’ll need to install it directly to the boat. The motor can be mounted directly
to the bow or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For compatible quick release brackets
and to locate your nearest dealer, visit
minnkota.johnsonoutdoors.com. To install the motor directly to the boat, follow the instructions
provided in this manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started.
For additional product support, visit
minnkota.johnsonoutdoors.com.

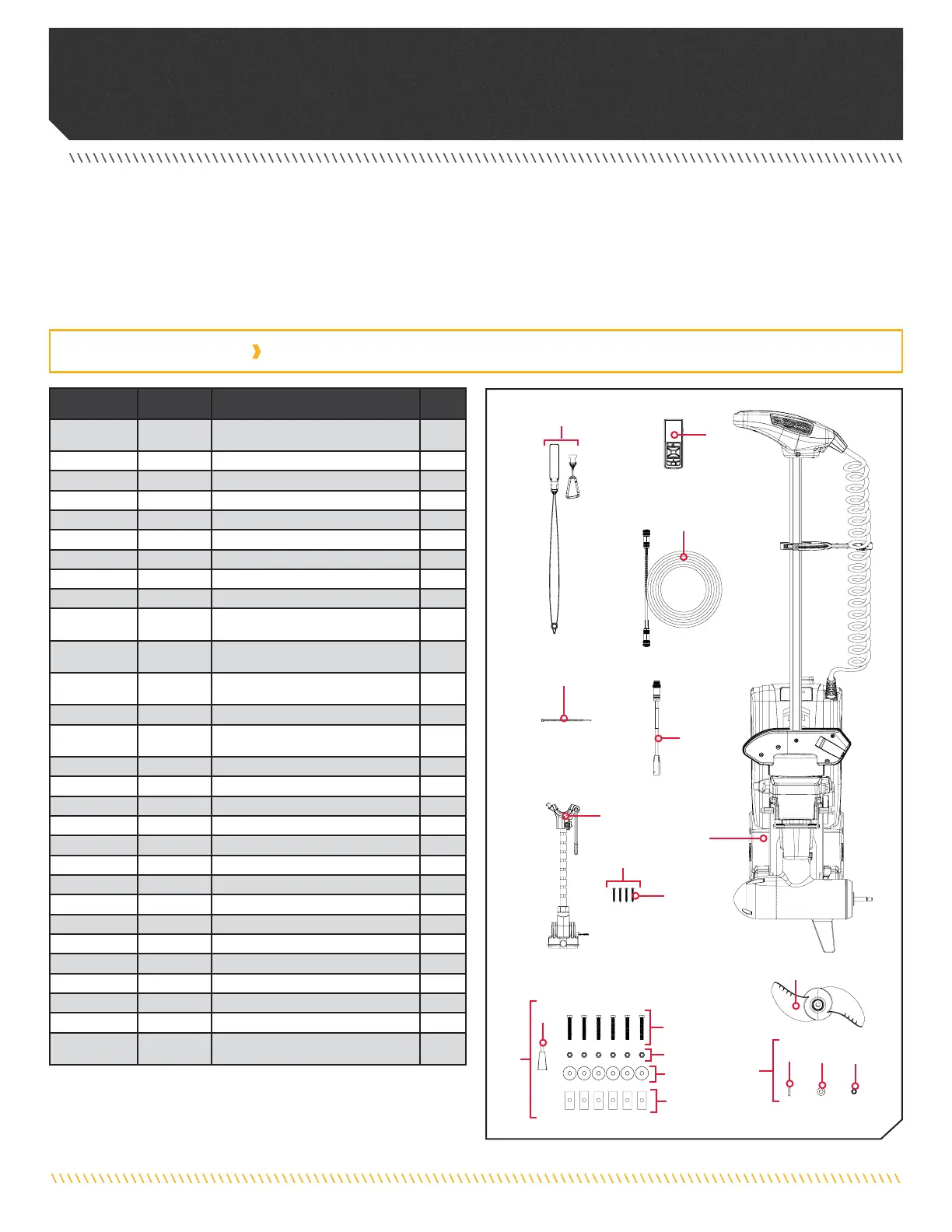

INSTALLATION PARTS LIST
Item /
Assembly
Part # Description Qty.
A
(Includes 1-5)
2994948 BAG ASM, INSTINCT, T3 BL HDW 1
1 2323440 SCREW-3/8-16 X 2 1/2 HHCS SS 6
2 2383122 NUT 3/8-16 NYLON INST LOCKNUT 6
3 2321710 WASHER, RUBBER MOUNT 6
4 2371796 BACKUP BAR 3/16 X 1 X 2 6
5 2378608 ANTI SEIZE TUBE, 4CC, TALON 1
6
✖
MOTOR ASSEMBLY 1
7 2390802 LANYARD w/CARARBINER IP RMT U2 1
B 411690-1 TROLLING MOTOR REMOTE 1
C 2992371
STABILIZER, BWMT ES TM ASM
*72"* *87”* *100”*
1
D
(Includes 8)
2994955
BAG ASM, MKA-60 STABILIZER
*72”* *87”* *100”*
1
8 2383475
SCREW-#8-18x1½L SELF DRILL SS
*72”* *87”* *100”*
4
9 2321170 PROP, POWER REAMED 1
E
(Includes 10-12)
2992604 BAG ASSM, PROP HARDWARE 1
10 2091701 WASHER-PROP (LARGE) MAX101 1
11 2093101 NUT-PROP,NYLOC,LG,MX101 3/8 SS 1
12 2262659 PIN-DRIVE 1" X 3/16 SS 17-4 1
13 490637-4 CABLE, ETH, M12-M12, BRAID,30' 1
14 490380-1 CABLE, ETHERNET PIGTAIL-700 HD 1
15 2206301 TIE WRAP, LOW PROFILE 8" 1
p
2207127 MANUAL, INSTINCT 1
p
2207128 MANUAL, INSTL GD, INSTINCT 1
p
2207126 QK REF GUIDE,ULT Q/INST Q 1
p
2397110 MANUAL, WIRELESS REMOTE 1
p
2397115 GUIDE-QCK REFERENCE iP 4.0 1
p
2294950 INSTRUCTIONS,OBN & REMOTE PAIR 1
p
2207130 BRUSHLESS QS SETUP GUIDE 1
p
2297165 MANUAL-DISCLAIMER,DWNLOAD INFO 1
p
2377179
INSTR.SHEET, MKA-60 STBLZR
*72”* *87”* *100”*
1
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
44
33
66
22
11
AA
1212
55
1010
1414
1313
BB
1515
77
DD
1111
99
EE
CC
88
8 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
