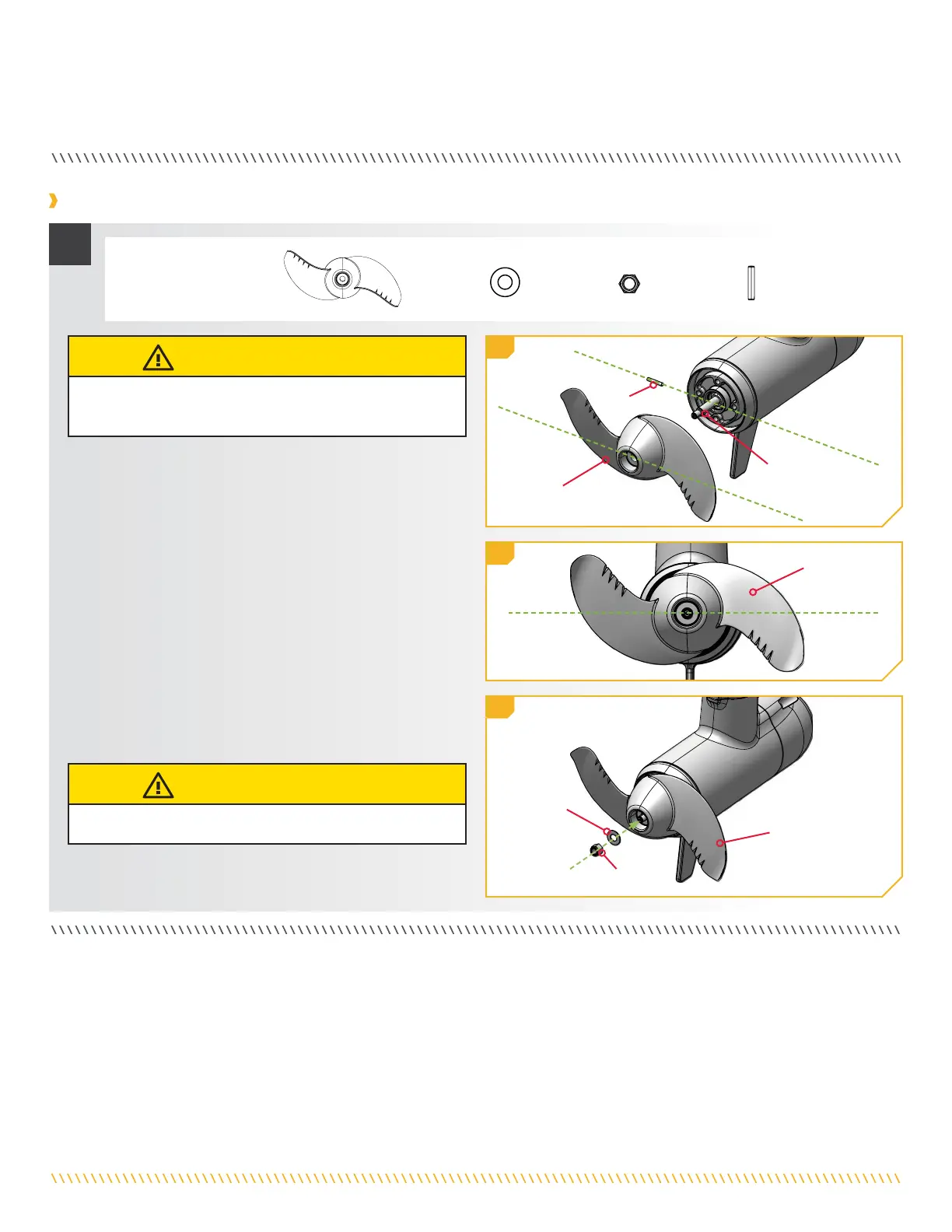

INSTALLING THE PROP
Installing the Prop
1
CAUTION
Disconnect the motor from the battery before beginning any
prop work or maintenance.
ITEM(S) NEEDED
a. Take the Drive Pin (Item #12) and slide it through
the Hole in the Armature Shaft. Position the Drive
Pin horizontally by grasping the Armature Shaft and
rotating it with the Drive Pin in place.
b. Align the Prop (Item #9) so it is horizontal and
parallel with the Drive Pin. Slide the Prop onto
the Armature Shaft and Drive Pin until it is seated
against the lower unit.
c. Install the Prop Washer (Item #10) and the Prop Nut
(Item #11) onto the end of the Armature Shaft.
d. While holding the Prop horizontal, tighten the Prop
Nut with a 9/16" Deep Well Socket. Tighten the Prop
Nut to 25-35 in-lbs.
#12 x 1#11 x 1#10 x 1#9 x 1
CAUTION
Do not over-tighten as this can damage the Prop.
PropProp
PropProp
Drive Drive
PinPin
Armature Armature
ShaftShaft
1a
1b
PropProp
Prop NutProp Nut
Prop Prop
WasherWasher
1c
