ADJUSTING THE DEPTH (TRIM) OF THE RIPTIDE INSTINCT QUEST
ADJUSTING THE DEPTH (TRIM) OF THE RIPTIDE INSTINCT QUEST

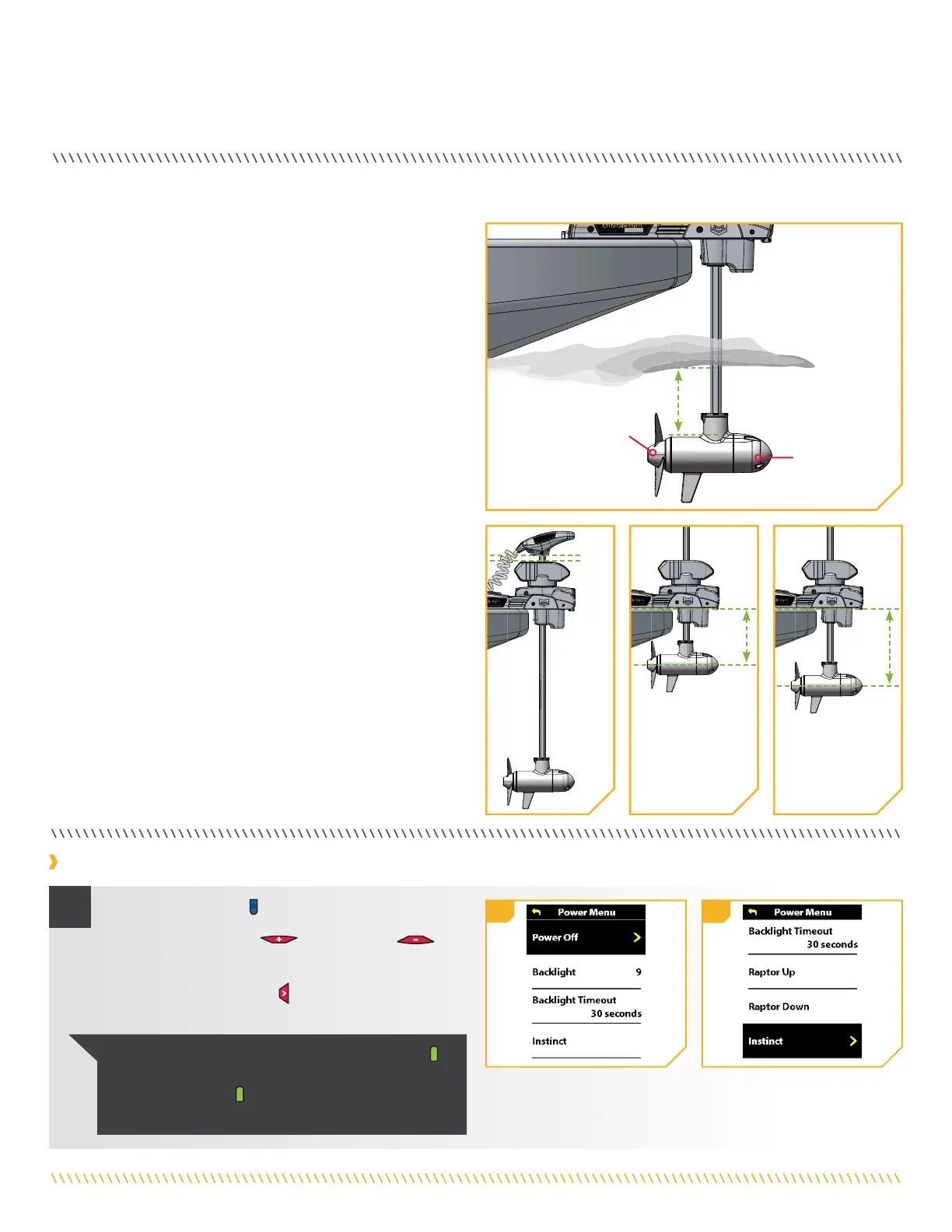

Once the boat is on the water, it may be necessary to adjust the
trim of the Lower Unit up or down to achieve an optimum depth
for motor performance. When setting the depth of the motor, be
sure the top of the Lower Unit is submerged at least 12” below the
surface of the water to avoid churning or agitation of surface water.
It may be necessary to trim the motor up or down, depending on
how the boat is responding. Trim up to avoid hitting underwater
objects and trim down if the Prop is coming out of the water.
The Prop will temporarily stop while trimming the motor and resume
once trimming is stopped. The motor is programmed to operate
safely and limit Prop rotation when the Lower Unit is trimmed within
certain limits. Trim limits are in place to avoid damage to the unit.
A Lower Trim Limit is set approximately 3” from the bottom of the
Control Head to the top of the Trim Housing. An Upper Trim Limit
is set 13 ⁄” from the bottom of the Mount to the center of the
Lower Unit. A Prop Lockout Region, defined as 16” from the bottom
of the Mount to the center of the Lower Unit, is used to eliminate
the possibility of the motor contacting the boat hull. All functions,
except for manual steering and recording an iTrack, are canceled
upon trimming into this region.
1
NOTICE: Alternatively, press the One-Boat Network
side button to quickly access Deployment Mode. The
function of the OBN
side button is set by default to
open the Instinct Deployment Mode menu.
a. Press the Power button on the Wireless Remote.
b. Use the Speed Up
or Speed Down
button to find Instinct.
c. Press the Steer Right
button to select Instinct and
open Deployment Mode.
Trimming with the Wireless Remote
3”3”
13 ⁄”13 ⁄”
16”16”
Upper Trim Upper Trim
LimitLimit
Lower Lower
Trim Trim
LimitLimit
Prop Lockout Prop Lockout
RegionRegion
PropProp
Lower UnitLower Unit
12" Minimum Depth12" Minimum Depth
1c1a
