ITEM(S) NEEDED
#1 x 6 #2 x 6 #3 x 6 #4 x 6 #5 x 1
Hex Head Hex Head
Cap ScrewCap Screw
Hex Head Hex Head
Cap ScrewCap Screw
Rubber Rubber
WasherWasher
Base Extrusion Base Extrusion
Boat DeckBoat Deck
Backup BarBackup Bar
Nylock NutNylock Nut

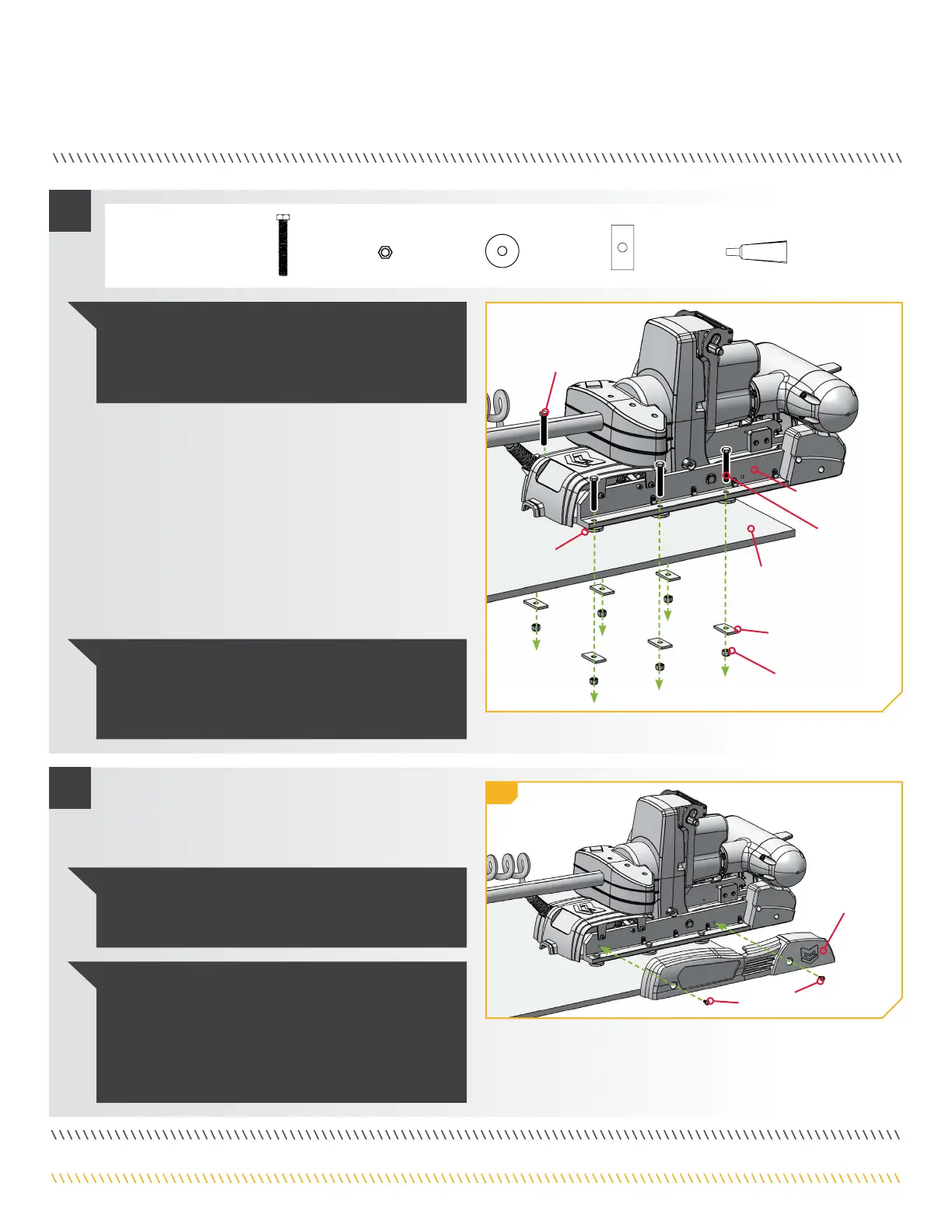

k. Take six Hex Head Cap Screws (Item #1) and apply
anti-seize (Item #5) to each Screw. Insert the Screws
through the Base Extrusion and into each of the
drilled locations. If Rubber Washers (Item #3) are
used, the Rubber Washers should sit between the
Base Extrusion and boat deck.
l. Place a Backup Bar (Item #4) and then a Nylock Nut
(Item #2) on the end of each Screw. Tighten with a
9/16" Box End or Open End Wrench. Make sure all
hardware is secure.
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high-speed installation tools.
Wetting the screws or applying an anti-seize (Item #5)
may help prevent seizing.
NOTICE: Use extra care to avoid pinching and
damaging the sensor wires that run alongside the
Base Extrusion when installing and tightening the
mounting hardware.
6
6m
Sideplate Sideplate
ScrewScrew
SideplateSideplate
m. Replace the Right Sideplate and Left Sideplate.
Replace the four Sideplate Screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
NOTICE: When reinstalling the Sideplates, use care to
avoid pinching the sensor wires that run alongside the
Base Extrusion.
NOTICE: Ensure that the area between the Mount
and Steering Housing is clean and free of debris
and that no installation hardware has fallen in. The
Mount contains a Stow Pad that contacts the Steering
Housing when stowed. The motor cannot stow
securely if an obstruction is present on the Stow Pad.
