MINN KOTA RIPTIDE INSTINCT QUEST User Manual

56 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

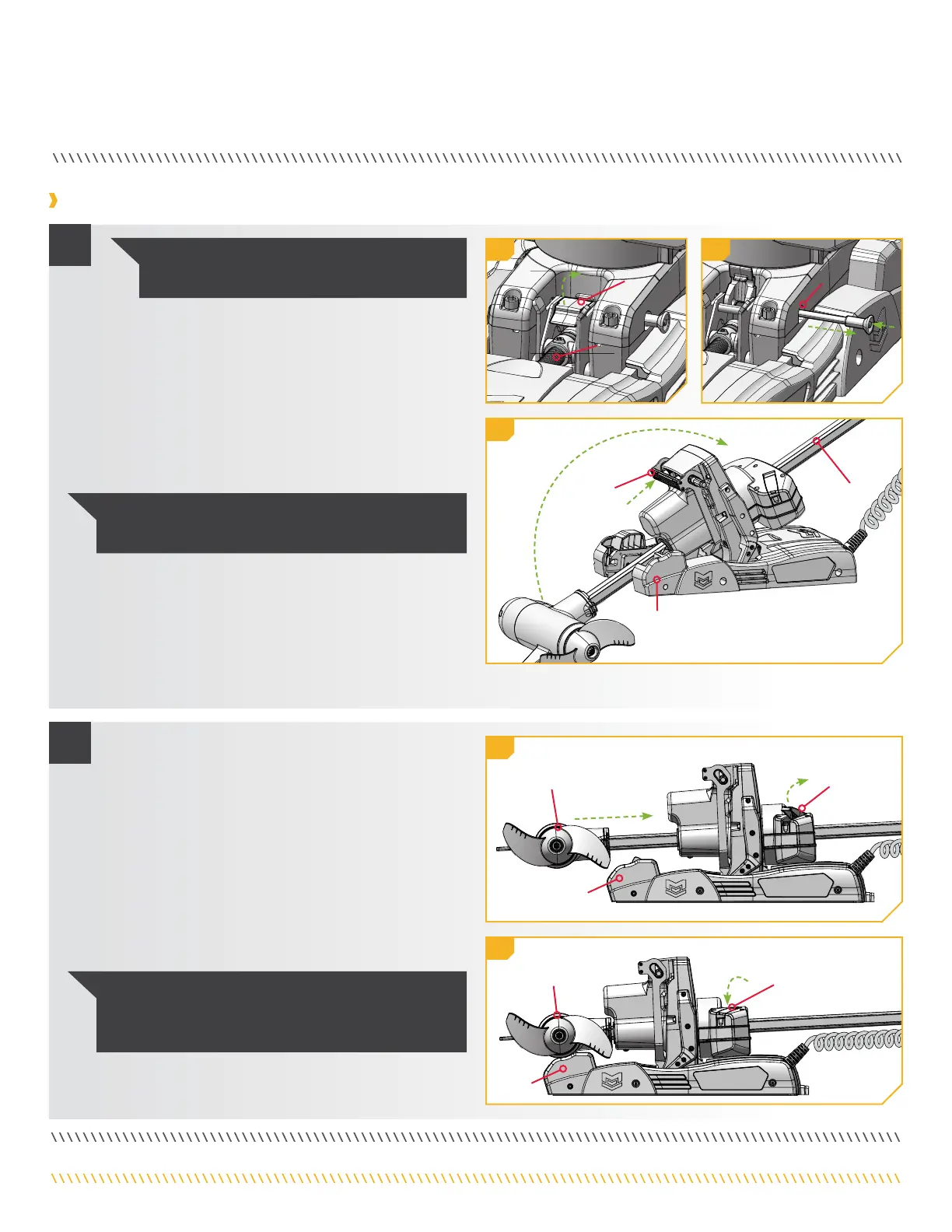

MANUAL STOW BYPASS
1
ShaftShaft
Latch Latch
Bracket Bracket
HandleHandle
a. Locate the Quick Release Lever on the Steering
Housing, above the Tilt Shaft near the center of
the Mount. Open the Quick Release Lever by
lifting upward.
b. Locate the Quick Release Pin on the side of the
Steering Housing. Push in the center of the Pin.
While keeping the center of the Pin pushed in, pull
the Pin completely out of the Steering Housing.
Manually Stow the Motor
TiltTilt
c. Locate the Latch Bracket Handle on the back of the
Steering Housing, near the Motor Ramps.
d. Firmly grasp the Shaft and raise the Latch Bracket
Handle. While holding both the Shaft and Latch
Bracket Handle, pivot the trolling motor into the
stowed position.
NOTICE: Do not lose the Quick Release Pin. The
Motor cannot function without the Quick Release Pin.
NOTICE: Complete the Manual Trim before
beginning this procedure.
1d
Motor RampMotor Ramp
2
e. With the motor in the stowed position, release the
Latch Bracket Handle whilemaintaining a hold on
the Shaft.
f. Locate the Trim Release Lever on the side of the
Trim Housing. While holding the Shaft, open the Trim
Release Lever.
g. Pull the Lower Unit fully onto the Motor Ramps.
Secure the lower unit on the Motor Ramps and close
the Trim Release Lever to lock the motor in the
stowed position.
Motor RampMotor Ramp
Lower UnitLower Unit
Lower UnitLower Unit
Trim Trim
Release Release
LeverLever
Trim Release Trim Release
LeverLever
2f
2g
NOTICE: Once on shore, take the motor to an
Authorized Service Provider or use the Minn Kota
Help Center at
minnkota.johnsonoutdoors.com.
Motor Motor
RampRamp
Quick Quick
Release Release
LeverLever
Tilt ShaftTilt Shaft
Quick Quick
Release PinRelease Pin
1a 1b
