MINN KOTA RIPTIDE INSTINCT QUEST User Manual

58 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
MANUAL STOW BYPASS RECOVERY
2

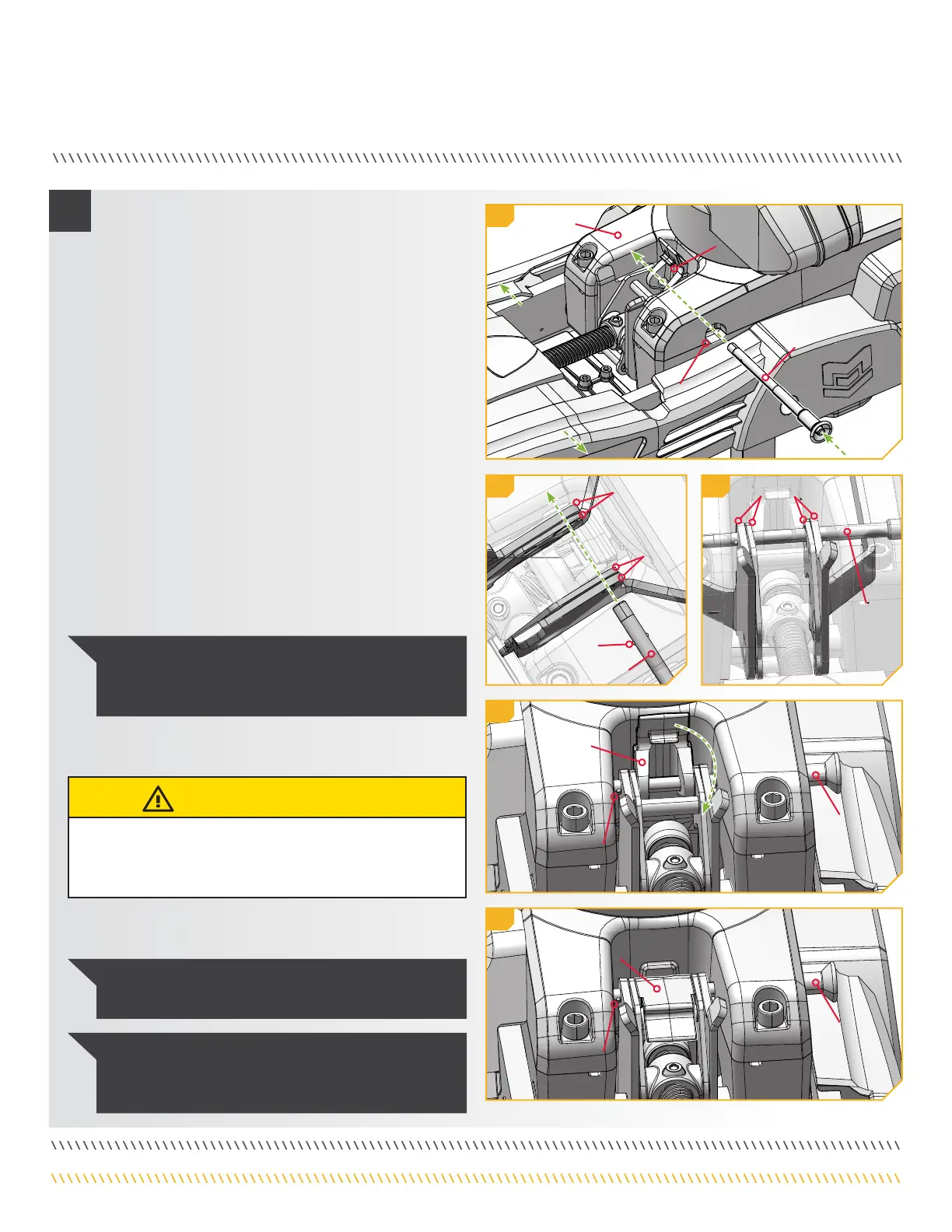

d. Take the Quick Release Pin that was removed during
the Manual Stow Bypass.
e. Locate the hole for the Quick Release Pin on the Port
side of the Steering Housing.
f. The Quick Release Pin must pass through four
center plates between the Steering Housing to
properly install. If the holes in the plates are not
aligned, pull the Quick Release Lever to lift the
plates. Realign the plates as needed to allow the
Quick Release Pin to be completely inserted.
g. Press and hold in the center of the Quick Release
Pin. While pressing the center of the Pin, insert
the Quick Release Pin into the Steering Housing.
Ensure that the Quick Release Pin passes through
all four plates and into the other side of the Steering
Housing. The Quick Release Pin is fully inserted
when the handle is seated against the Steering
Housing. The retaining ball in the Quick Release Pin
must be visible past the final plate.
Quick Release Quick Release
LeverLever
Quick Release Quick Release
LeverLever
CAUTION
Watch for pinch points when closing the Quick Release
Lever. Push on the back of the Quick Release Lever with an
open palm to keep fingers clear of pinch points.
i. Reconnect the motor to power. Normal motor
operation may resume.
NOTICE: If the Quick Release Pin is installed
incorrectly and does not capture all four plates,
severe motor damage may occur.
NOTICE: The Quick Release Pin must be fully
inserted for the motor to function.
NOTICE: If the motor is nonfunctional after restoring
power and reinstalling the Quick Release Pin, contact
a Minn Kota authorized service provider.
h. With the Quick Release Pin fully inserted, lower the
Quick Release Lever. Ensure the Lever is seated.
2f
2g
2h
2g
PlatePlate
PlatePlate
Quick Release PinQuick Release Pin
Retaining Retaining
BallBall
Quick Release PinQuick Release Pin
Quick Release Quick Release
LeverLever
Steering Steering
HousingHousing
Hole for Hole for
Quick Release PinQuick Release Pin
PortPort
StarboardStarboard
2f
Quick Quick
Release Release
PinPin
PlatePlate
Retaining Retaining
BallBall
Retaining Retaining
BallBall
Quick Quick
Release Pin Release Pin
HandleHandle
Quick Quick
Release Pin Release Pin
HandleHandle
