Installation and Programming Manual
Mircom Technologies Inc All Rights Reserved LT-1034 Rev.1
Page 14 of 54
2.6 Keypad and Display Operation

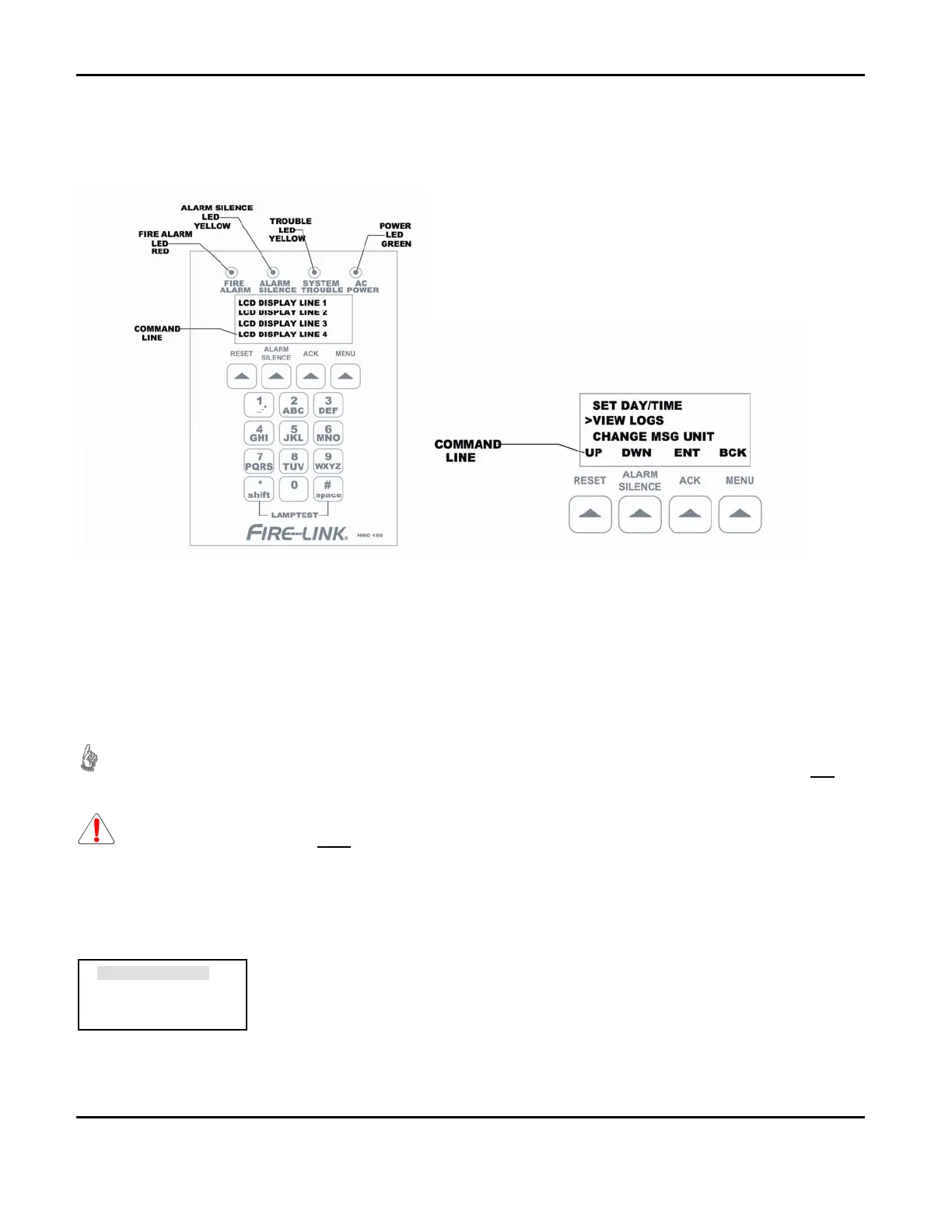

Refer to NMC Keypad Layout in Figure 5 and Figure 6 below.
Fig 5- NMC Key pad Fig 6- NMC Key pad Display
It is recommended that you familiarize yourself with the operations of each of the keypad keys for installation and
operation. Note that the following keys are context driven:
RESET
ALARM SILENCE
ACK
MENU.
While in programming mode, these keys are used to navigate through and make selections in the various menus.
NOTE: While in Programming Mode, a trouble condition will occur on the NMC but the local piezo will not
sound.
WARNING: THE NMC WILL NOT RESPOND TO ANY ALARM OR TROUBLE CONDITIONS WHILE IN
THE PROGRAMMING MODE.
While in Programming Mode, the bottom line of the LCD display becomes the Command Line. The keypad key
directly below the text on the command line becomes the action on the command line. For example, if the
command line appears as follows:
The RESET becomes the ‘Scroll Up’ button. ALARM SILENCE becomes the ‘Scroll
Down’ button, the ACK becomes the ‘Enter’ button and the MENU becomes the ‘Back’
button.
>DISPLAY VERSION
ADMINISTRATION
TESTS
UP DWN ENT BCK
