Mircom QX-5000 Series User Guide

QX-5000 Windows Configuration Utility User Guide
25
Adding and Configuring the QDV-1000
Understanding the QDV-1000 List

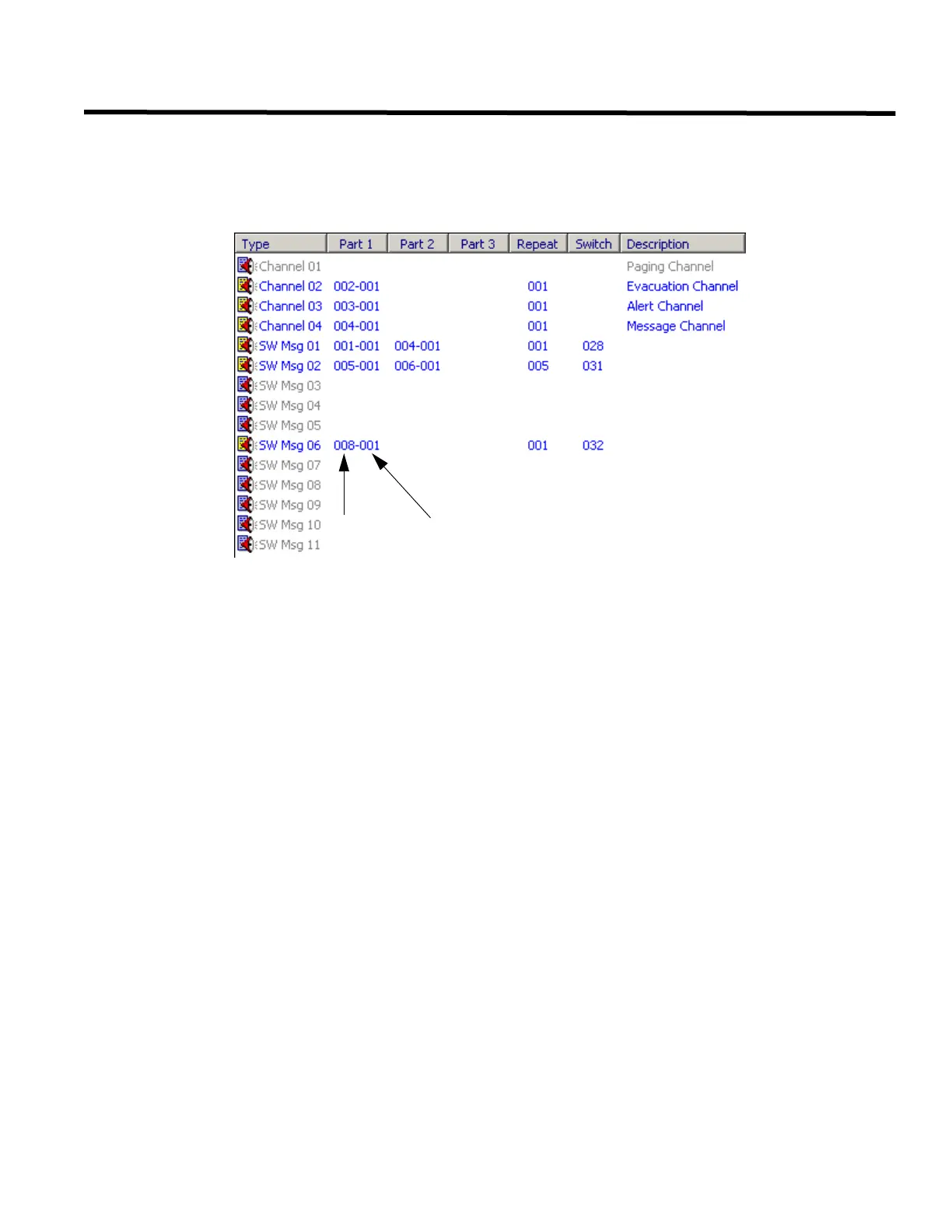

To access the QDV-1000 properties list, select “QDV-1000” from the left pane. The right pane displays the QDV-
1000 properties list.
QDV-1000 List Description
The first four rows list the messages for channels 1 through 4, and the remaining rows list the manual switch
messages. Used channels are highlighted in blue; Unused channels are grayed out.
The list displays 7 columns:
• The first column displays the message Type
• The second to fourth columns display Parts 1, 2, and 3 of the message
• The fifth column displays the number of times the entire message repeats
• The sixth column displays the manual switch number
• The seventh column displays the message description
Part 1, Part 2 and Part 3 columns have the following format: xxx-yyy, where xxx is the message part number, and
yyy is the part repetition times.
Channel messages do not have switches assigned to them and you cannot change their description.
message
part number
number of times
message repeats
