Once the reader is disconnected, follow the procedure below:

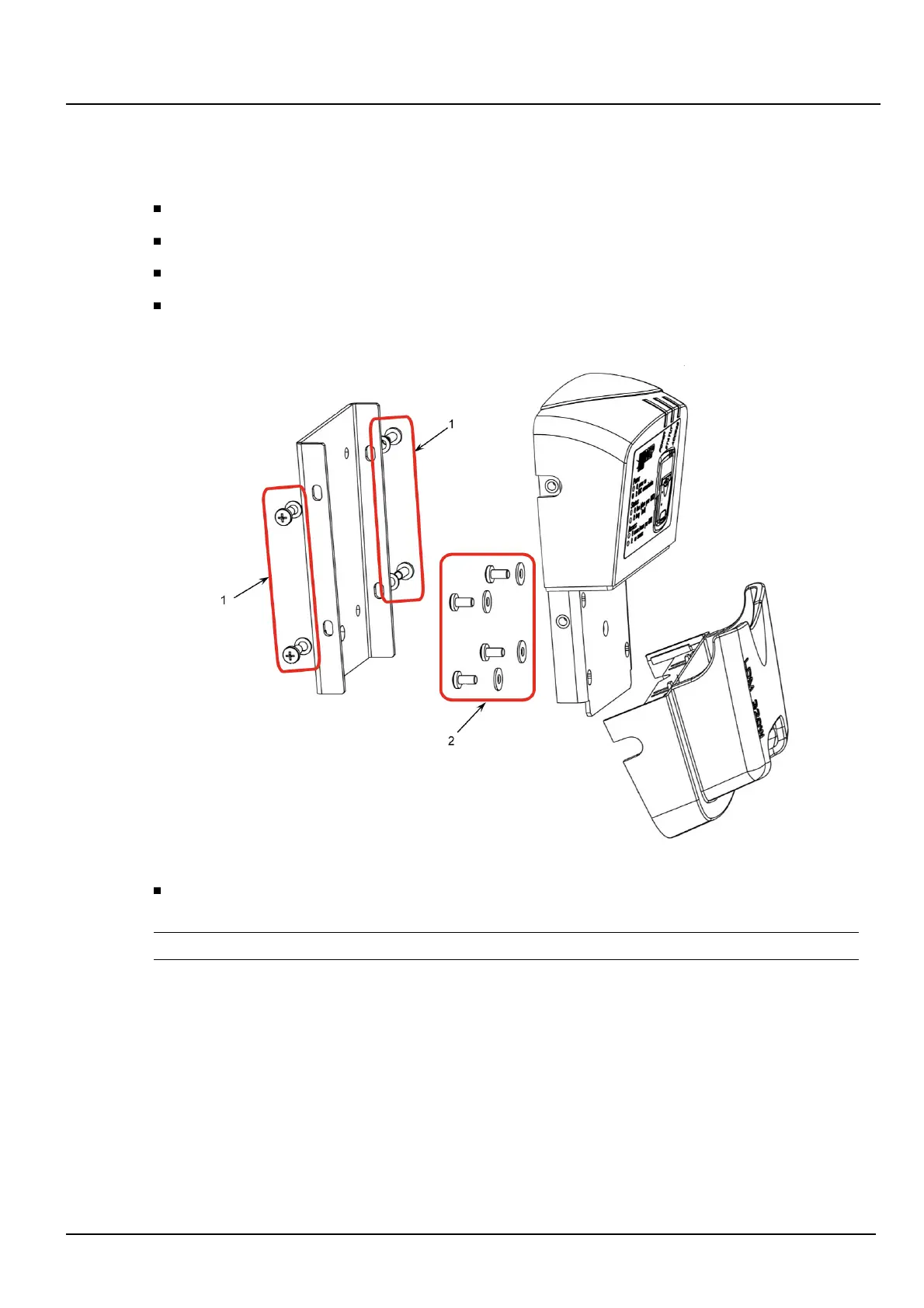

Remove the four side attaching screws and recover the washers (1).
Once separated, remove the reader without applying excessive force to the cord.
Remove the four screws and recover the washers (2).
Remove the sleeve.
For the reassembly procedure, proceed in reverse order.
Note: The sleeve must be neatly inserted into the guide prior to fitting back the screws.
Maintenance LDM 320
