Mitsubishi Electric MELFA RV-3SDB Series - Fuse of Power Supply of Pneumatic Gripper Hand

Replace the fuses Troubleshooting and maintenance instructions
7 - 4
7.4.3 Fuse of power supply of pneumatic gripper hand
Control unit CR1DA/drive unit DU1A
If you see error message "H0083" replace fuse F3 (rated current: 1.6 A) on card TZ801A.
Control unit CR2DA/drive unit DU2A
If you see error message "H0083" replace fuse F5 (rated current: 1.6 A) on board TZ352B.
R001773E

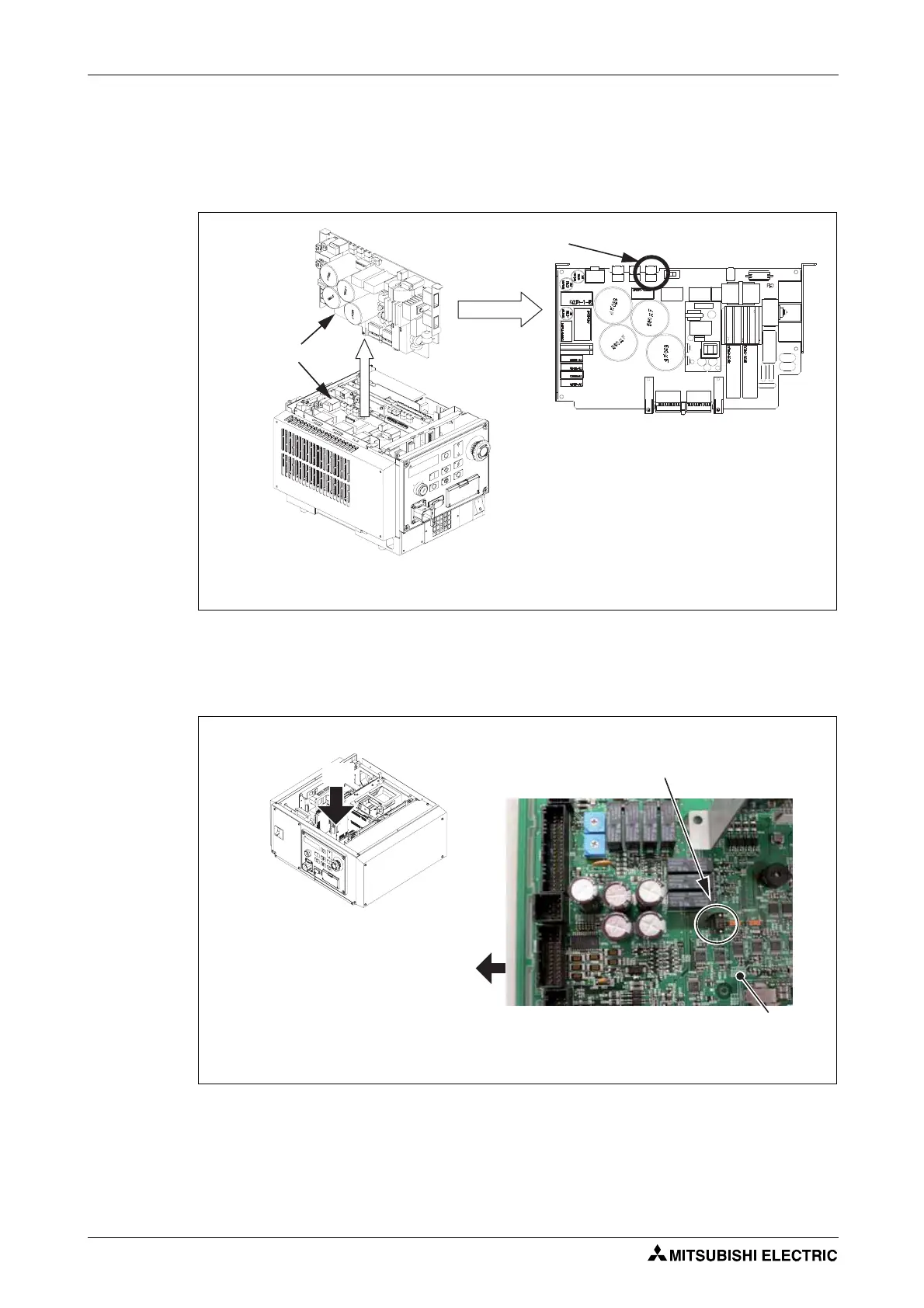

Fig. 7-3: Fuse of power supply for pneumatic gripper hand (CR1DA/DU1A)
R001496E
Fig. 7-4: Fuse of power supply for pneumatic gripper hand (CR2DA/DU2A)
Fuse F3
TZ801A
Control unit CR1DA/drive unit DU1A
card TZ801A
A
Fuse F5
TZ352B
Control unit CR2DA/drive unit DU2A
Front side of the control unit
or of the drive unit
View A
