Annex Dimensions
SD-/SQ series A - 1
A Annex
A.1 Dimensions
A.1.1 Working areas of the robot

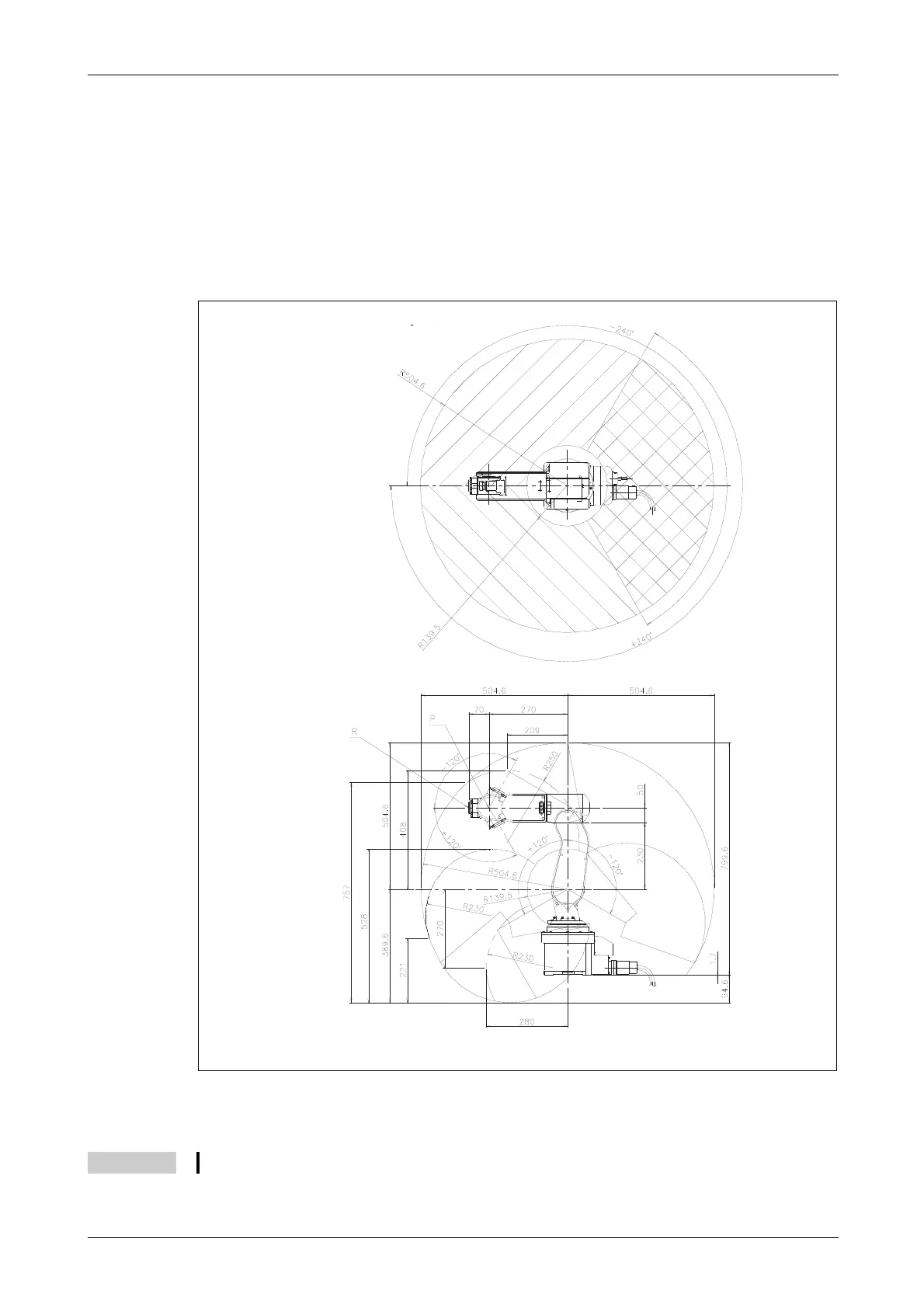

The following figure shows the range of motion of the 5-axis robot arms RV-2SDB and RV-2SQB .
R001775E
Fig. A-1: Range of motion of robot arms RV-2SDB and RV-2SQB
NOTE The working area stipulated refers to the P point of the robot arm without gripper hand.
Weight: 19 kg
All dimensions in mm
