Mitsubishi Electric MELFA RV-3SDB Series - SQ Series

System configuration System overview
2 - 4
2.2.2 SQ series
R001779E

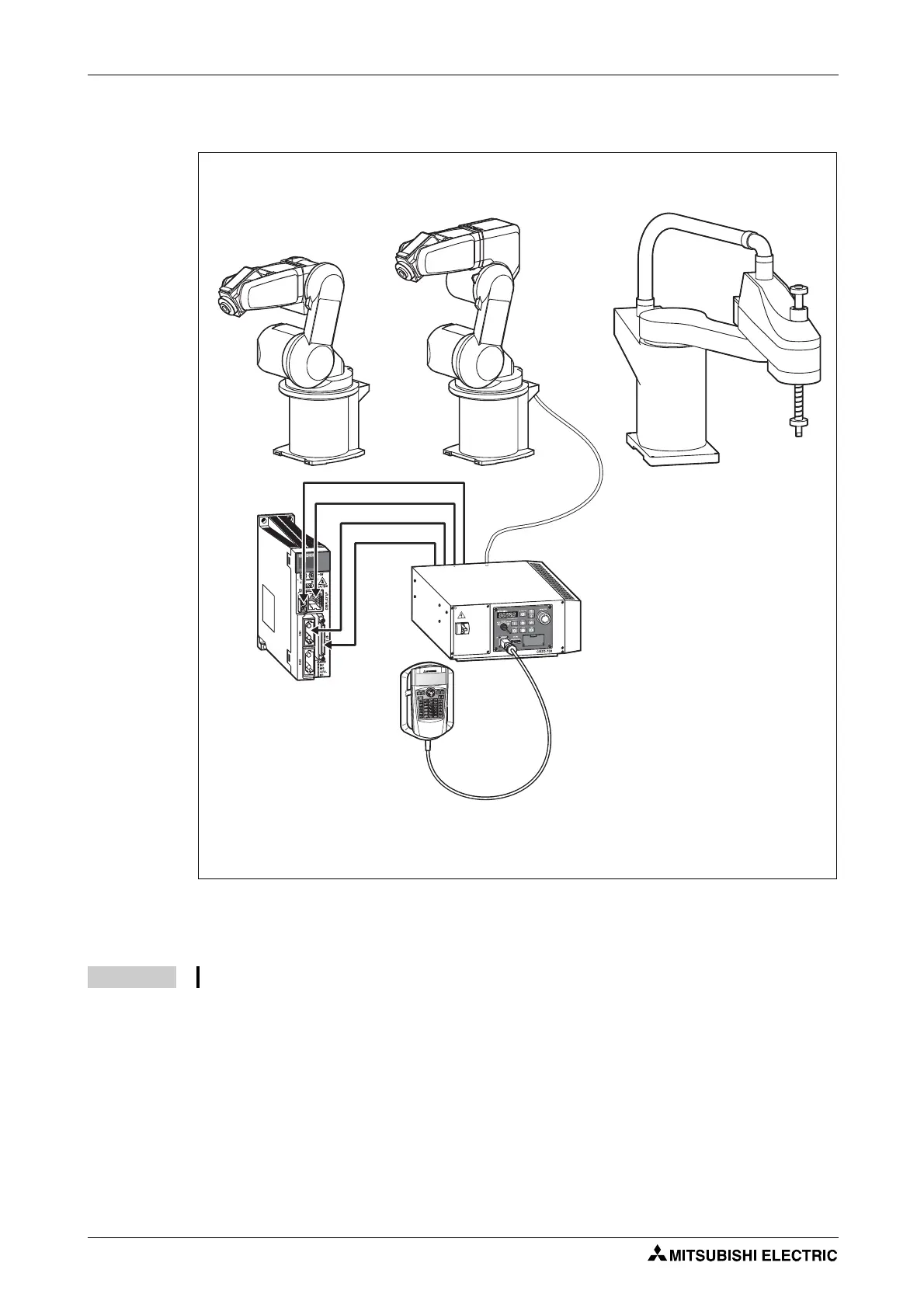

Fig. 2-4: Configuration of an SQ series robot system
NOTE The Teaching Box is an optional extra. It is required for manual operation of the robot.
5-axis articulated arm
6-axis articulated arm SCARA
Cable set
Drive unit
Teaching Box R32TB
(optional)
Robot CPU
or
or
