Annex Dimensions
SD-/SQ series A - 17
A.1.2 Dimensions of the control units, the drive units and the CPU
Control unit CR1DA and drive unit DU1A
R002090E

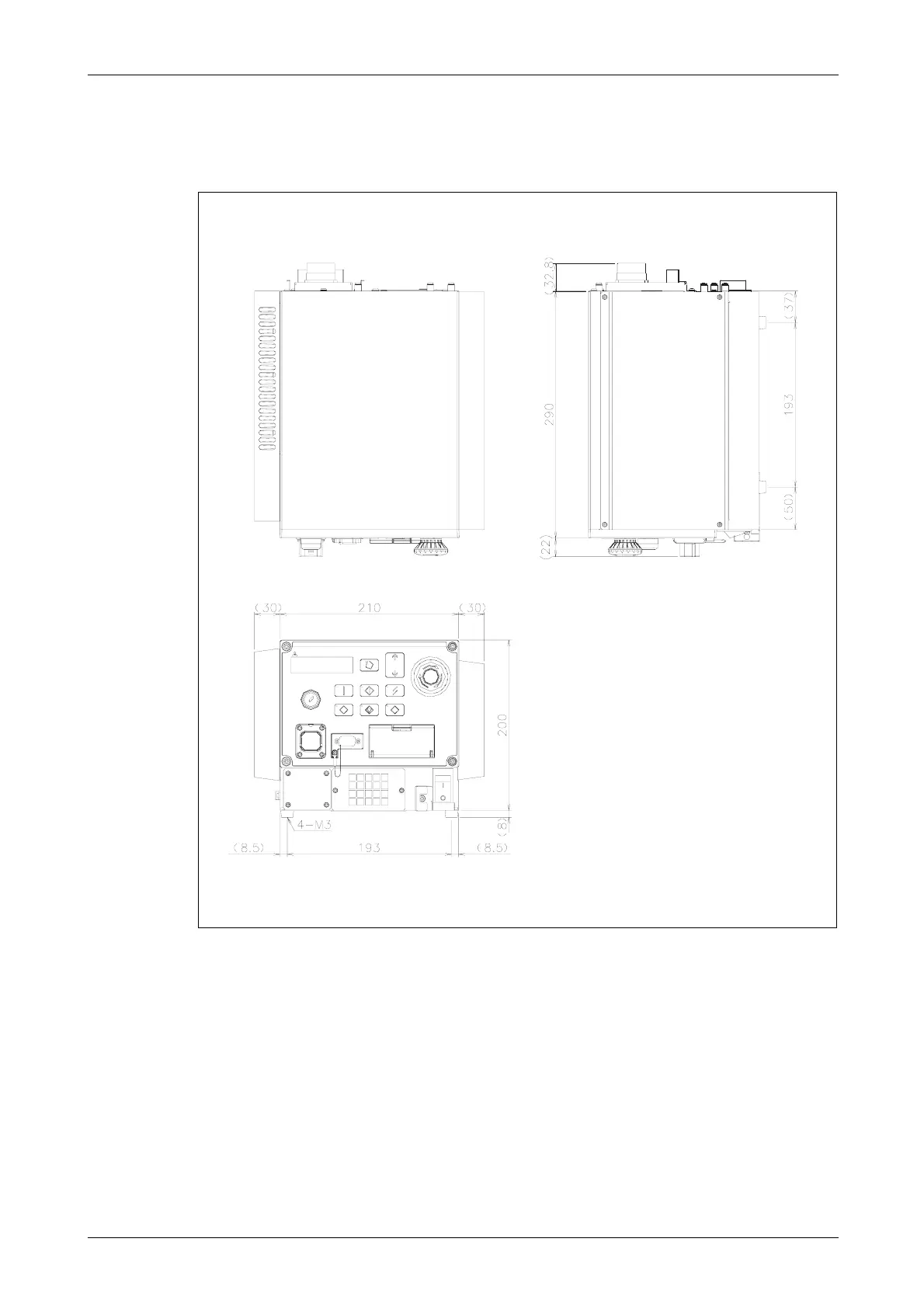

Fig. A-17:
Dimensions of control unit CR1DA and drive unit DU1A
All dimensions in mm
Weight: ca. 9 kg
